Support HDCP, Video DynaSyna, Mouse emulation, Keyboard emulation

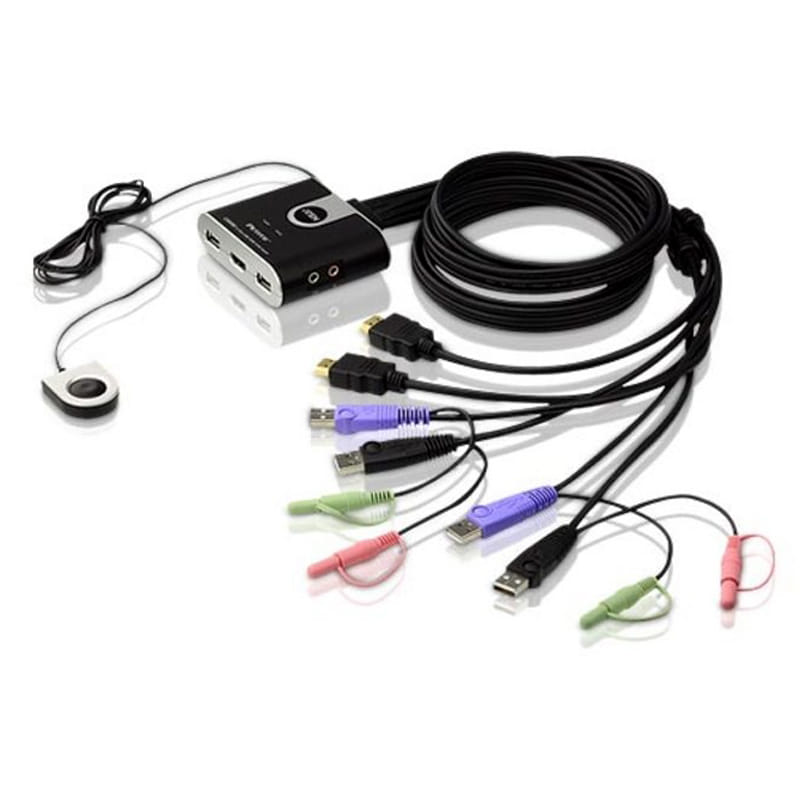

ATEN 2 Port USB 2.0 HDMI Audio Cable KVM Switch
The CS692 HD USB KVM Switch links two HD-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
Specifications:
- Computer Connections: 2
- Console Connections: 1
- Port Selection: Remote Port Selector, Mouse, Hotkeys
- Connectors:
- Console Ports:
- Keyboard: 1 x USB Type A Female (Silver)
- Video: 1 x HD Type A Female (Black)
- Mouse: 1 x USB Type A Female (Silver)
- Speakers: 1 x Mini Stereo Jack Female (Green)
- Mic.: 1 x Mini Stereo Jack Female (Pink)
- KVM Ports:
- Keyboard: 2 x USB Type A Male (Purple)
- Video: 2 x HD Type A Male (Black)
- Mouse: 2 x USB Type A Male (Black)
- Speakers: 2 x Mini Stereo Plug Male (Green)
- Mic.: 2 x Mini Stereo Plug Male (Pink)
- LEDs - KVM: 2 (Green)
- Cable Length:
- KVM: 2 x 1.2m
- Remote Port Selector: 1.8m
- Emulation - Keyboard/Mouse: USB
- Video: 1080p; 1920 x 1200
- Scan Interval: 3, 5, 10, 20 secs. (default 5 secs.)
- Power Consumption: DC 5V, 2.65W
- Environment:
- Operating Temp.: 0 ~ 50°C
- Storage Temp.: -20 ~ 60°C
- Humidity: 0 ~ 80% RH, Non-condensing
- Physical Properties:
- Housing: Plastic
- Weight: 0.41kg
- Dimensions (LxWxH): 6.70 x 8.20 x 2.65cm
- Package Contents:
- 1 x CS692 2-Port USB HD Audio/Video KVM Switch with Remote Port Selector
- 1 x User Instructions
- 2 x Hotkey Stickers
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 2 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI/DVI-I |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Number of microphone inputs | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Scan interval | 20 s |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable length How long the cable is. | 1.2 m |
| LED indicators | Link |
| Certification | RoHS |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 5 |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 2.65 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 410 g |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide |
|
| Manual |
|
| Other features | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 82 x 67 x 26.5 mm |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 5 |
| SKU | 234507 |
| MPN | CS692-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
