Support HDCP, 4096 x 2160 @ 60 Hz, DP 1.2, Mouse emulation, Keyboard emulation

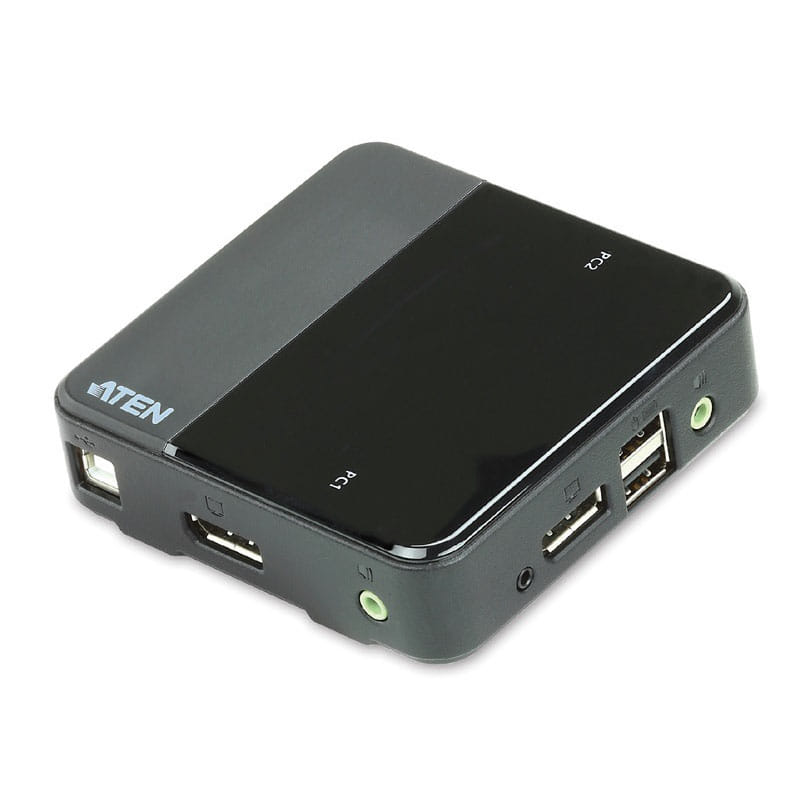

ATEN 2 Port USB 2.0 DisplayPort/Audio 4K KVM Switch
With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K UHD resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements. The ATEN CS782DP 2-Port USB DisplayPort KVM Switch features 4K UHD video resolution and allows users to access two 4K-enabled computers from a single USB keyboard, USB mouse, and DisplayPort video console. Doing so with ease, the CS782DP provides three convenient switching methods – using a remote port selector, mouse, or hotkeys for fl exible access to any computer connected to the installation. The product even provides premium audio support for a complete multimedia solution. To round off the entire experience, the streamlined, space-saving design of CS782DP also makes it ideal for any working environment. With its rich feature set, the CS782DP is designed to surpass all requirements in graphic design, animation, and video-editing applications. ATEN Big is the new small promotion
Specifications:
- Computer Connections: 2
- Port Selection: Hotkey, Mouse, Remote Port Selector
- Connectors
- Console Ports
- 2 x USB Type A Female (Black)
- 1 x DisplayPort Female (Black)
- 1 x 3.5mm Audio Jack Female (Green)
- KVM Ports
- 2 x USB Type B Female (White)
- 2 x DisplayPort Female (Black)
- 2 x 3.5mm Audio Jack Female (Green)
- Console Ports
- Remote Port Selector: 1 x Mini Stereo Jack
- Cable Length
- KVM
- 2 x 1.8 m USB Cable
- 2 x 1.8 m Audio Cable
- 2 x 1.5 m DisplayPort Cable
- Remote Port Selector: 1.8 m
- KVM
- LEDs
- KVM 2 (White)
- Emulation
- Keyboard / Mouse USB
- Video
- 4K UHD (3840 x 2160 @ 60Hz)
- Scan Interval: 3, 5, 10, 20 seconds (Default: 5 seconds)
- Power Consumption: DC 5V, 4W
- Environmental
- Operating Temperature 0 – 50°C
- Storage Temperature –20 – 60°C
- Humidity 0 - 80% RH, Non-condensing
- Physical Properties
- Housing Plastic
- Weight 0.12 kg
- Dimensions (L x W x H) 9.37 x 9.30 x 2.68 cm
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 2 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Console ports | 3.5mm headphone,DisplayPort,USB A |
| Console USB ports quantity | 2 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A,USB Type-B |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 3 |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Cable length How long the cable is. | 1.8 m |
| Remote switch cable length | 1.8 m |
| Maximum cable length | 1.8 m |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Power | |
| Output voltage | 5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 4 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 93 mm |
| Depth The distance from the front to the back of something. | 93.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 26.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 120 g |
| Packaging content | |
| Cables included | Audio (3.5mm),DisplayPort,USB |
| Manual |
|
| SKU | 234514 |
| MPN | CS782DP-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
