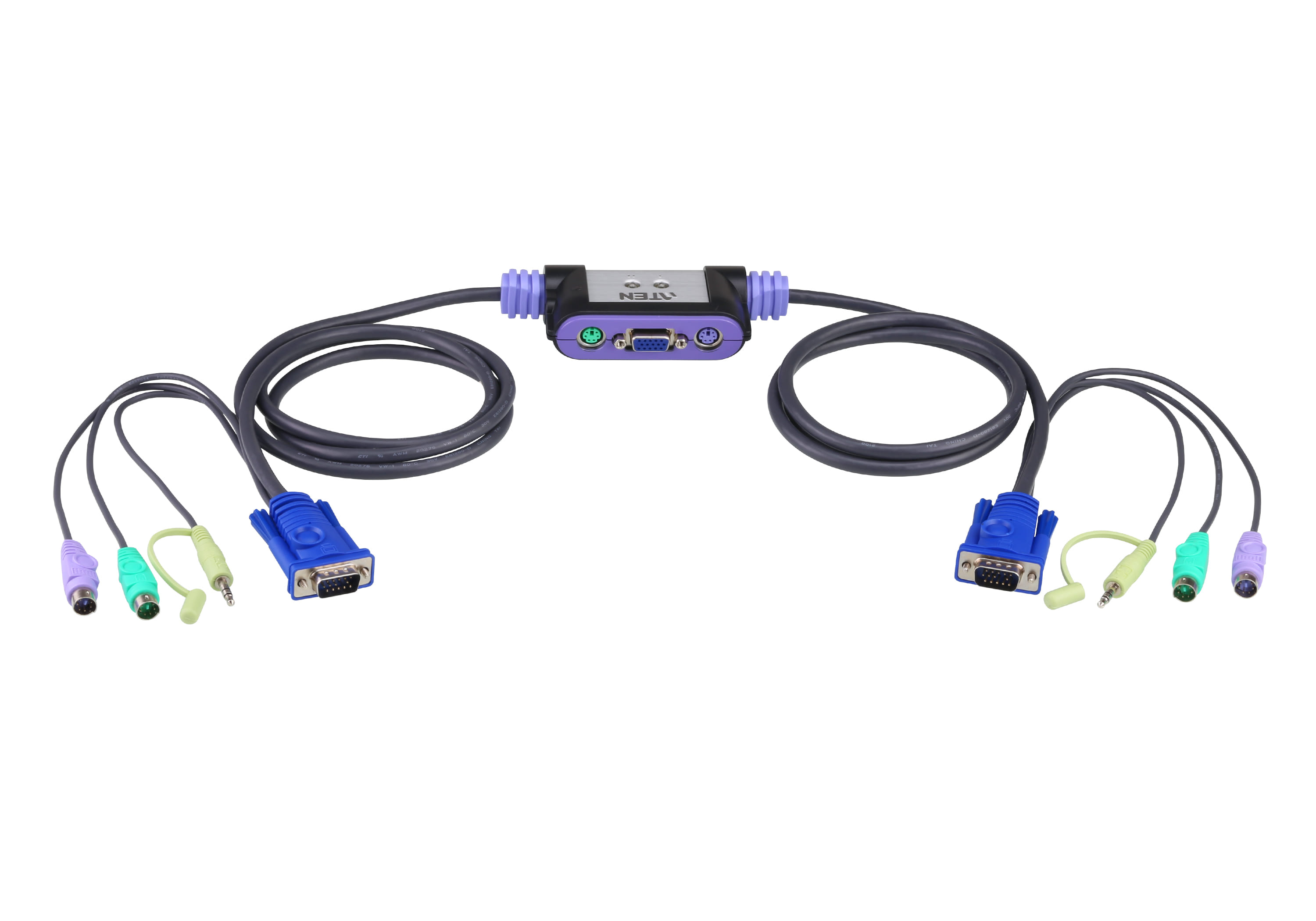

Aten 2-Port PS/2 VGA/Audio Cable KVM Switch
Item No:
699962
MPN:
CS62AZ-AA
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN CS62A, 2048 x 1536 pixels, Black, Silver
CS62A 2-Port KVM Switch has a handy design integrating with 4 feet of cables. It can control 2 servers via a single console.
Features:
-One PS/2 console controls 2 computers
-Compact design, built in 1.2m cables
-All-in-one design
-With speaker support
-Superior video quality- up to 2048 x 1536; DDC2B
-Auto Scan function to monitor computer operation
-Non-powered
-OS Compatibility includes Windows 2000/XP/Vista, LINUX and FreeBSD
Package Contents
1 x 2-Port KVM Switch with Attached Cables
1 x User Guide
Features:
-One PS/2 console controls 2 computers
-Compact design, built in 1.2m cables
-All-in-one design
-With speaker support
-Superior video quality- up to 2048 x 1536; DDC2B
-Auto Scan function to monitor computer operation
-Non-powered
-OS Compatibility includes Windows 2000/XP/Vista, LINUX and FreeBSD
Package Contents
1 x 2-Port KVM Switch with Attached Cables
1 x User Guide
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 2 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | PS/2 |
| Mouse port type | PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 3 |
| Console ports | 3.5mm headphone, 3.5mm mic, PS/2 |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 4 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 3 |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1536 pixels |
| DDC2B support |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Housing material What the casing of the product is made of. | Plastic |
| Cable length How long the cable is. | 1.2 m |
| LED indicators |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 84 mm |
| Depth The distance from the front to the back of something. | 54 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 300 g |
| Packaging content | |
| Manual |
|
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| SKU | 699962 |
| MPN | CS62AZ-AA |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
