Aten 2 Port USB HDMI KVMP Switch with DOLBY Audio, USB Hub - Cables Included
Details:

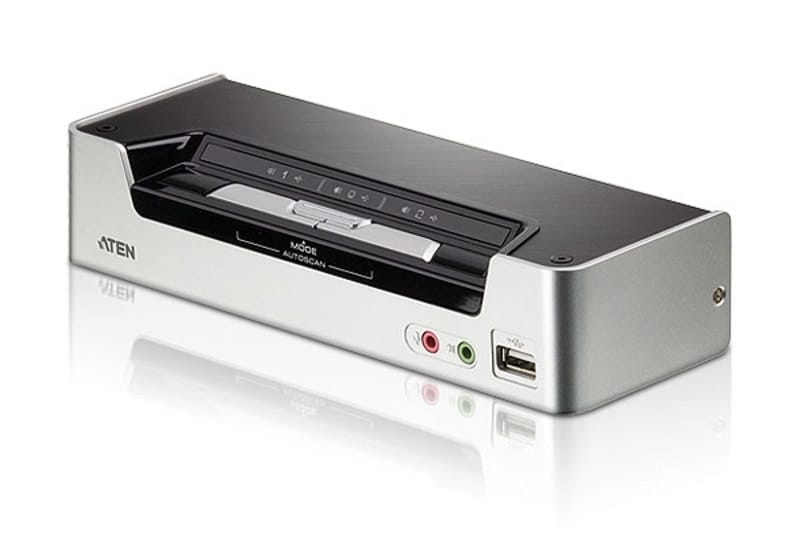

Aten CS-1792 – 2-Port USB 2.0 HDMI KVMP Switch
With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the home or office, the CubiQ™ CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
Specifications:
| Computer Connections | 2 | ||
| Port Selection | Front Panel Pushbuttons; Hotkeys | ||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (Black; rear panel) |
| Video | 1 x HDMI Type A Female (Black) | ||
| Mouse | 1 x USB Type A Female (Black; rear panel) | ||
| Speaker | 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear) | ||
| Mic. | 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear) | ||
| KVM Ports | Keyboard / Mouse | 2 x USB Type B Female (White) | |
| Video | 2 x HDMI Type A Female (Black) | ||
| Speaker | 2 x Mini Stereo Jack Female (Green) | ||
| Mic. | 2 x Mini Stereo Jack Female (Pink) | ||
| F/W Upgrade | 1 x 4-conductor 3.5mm Jack (Black) | ||
| Power | 1 x DC Jack | ||
| USB 2.0 Hub | 2 x USB Type A Female (White; 1 x front panel; 1 x rear panel) | ||
| Switches | Selected | 3 x Pushbutton | |
| LEDs | Audio | 3 (Green) | |
| KVM | 3 (Orange) | ||
| USB | 3 (Green) | ||
| Emulation | Keyboard/Mouse | USB | |
| Video | 1080p (HDTV) / 1920 x 1200 (DVI) | ||
| Scan Interval | 1-99 secs. (Default: 5 secs) | ||
| Power Consumption | DC 5.3 V, 3.2 W | ||
| Environment | Operating Temp. | 0-50 °C | |
| Storage Temp. | -20-60 °C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal, Plastic | |
| Weight | 0.42 kg | ||
| Dimensions (L x W x H) | 20.50 x 7.30 x 4.50 cm | ||
Package Contents
- 1 x CS1792 USB 2.0 HDMI KVMP™ Switch
- 2 x Custom HDMI KVM Cable Sets
- 1 x Firmware Upgrade Cable
- 1 x Power Adapter
- 1 x USB-to-PS/2 Converter
- 1 x User Instructions
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 2 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub |
 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-B |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 4 |
| Number of microphone inputs | 4 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | WUXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Housing material What the casing of the product is made of. | Metal, Plastic |
| LED indicators |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| DC input voltage | 5.3 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5.35 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 206.3 mm |
| Depth The distance from the front to the back of something. | 72.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.04 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 95 mm |
| Package depth The distance from the front to the back of the packaging. | 265 mm |
| Package height The distance from the top to the bottom of the packaging. | 220 mm |
| Package weight Weight of the packaged product. | 1.37 kg |
| Packaging content | |
| Quick installation guide |
|
| Manual |
|
| Logistics data | |
| Master (outer) case net weight | 5.2 kg |
| Master (outer) case width | 232 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 283 mm |
| Master (outer) case gross weight | 7.3 kg |
| Products per master (outer) case | 5 pc(s) |
| SKU | 262731 |
| MPN | CS1792-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
