Overview

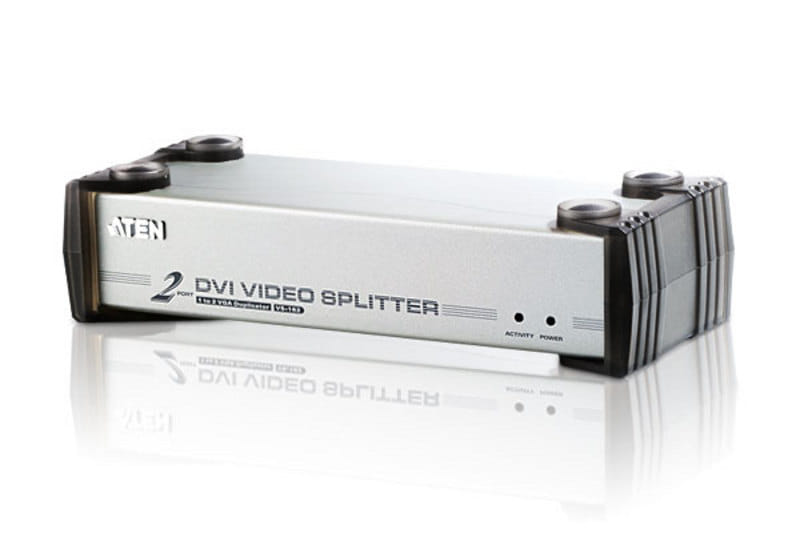

VS162 Video Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
Package Contents
- 1x 2-Port DVI Video Splitter
- 1x Power Adapter
- 1x User Instructions
Features
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
- Fully compliant with DVI-Digital and DVI-Analog.
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
- Speaker enabled for audio enjoyment.
- Cascadable to 3 levels - provides up to 8 video signals.
- Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
- Installs in minutes.
- Maintains highest single link video resolution (up to 1920 x 1200).
- DDC, DDC2, DDC2B Compatible (Port 1 only).
- HDCP Compliant.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Diagram
Specifications
2-Port DVI Video Splitter
| Video Input | |
| Interfaces | 1 x DVI-I Female (White) |
| Impedance | 100 Ώ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 2 x DVI-I Female (White) |
| Impedance | 100 Ώ |
| Video | |
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz |
| Compliance | HDCP Compatible |
| Max. Resolution | Up to 1920 x 1200 |
| Max. Distance | Up to 5 m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female (Green) |
| Output | 2 x Mini Stereo Jack Female (Green) |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5.3V:2.36W:11BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.87 kg ( 1.93 lb ) |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.) |
| Carton Lot | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DVI |
| Video out | 2x DVI-I |
| Video ports quantity The number of ports (sockets) for video input or output. | 3 |
| Audio ports quantity | 3 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Brown, Grey |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| 3D The device can be used with 3D technology. |
 |
| Maximum operating distance The maximum distance from which you can operate the device. | 5 m |
| Handheld remote control Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| LED indicators | Activity |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5.3 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 2.36 W |
| USB powered The device can be powered via a USB connection. |
|
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 620 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| SKU | 318423 |
| MPN | VS162-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | Monitor Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
