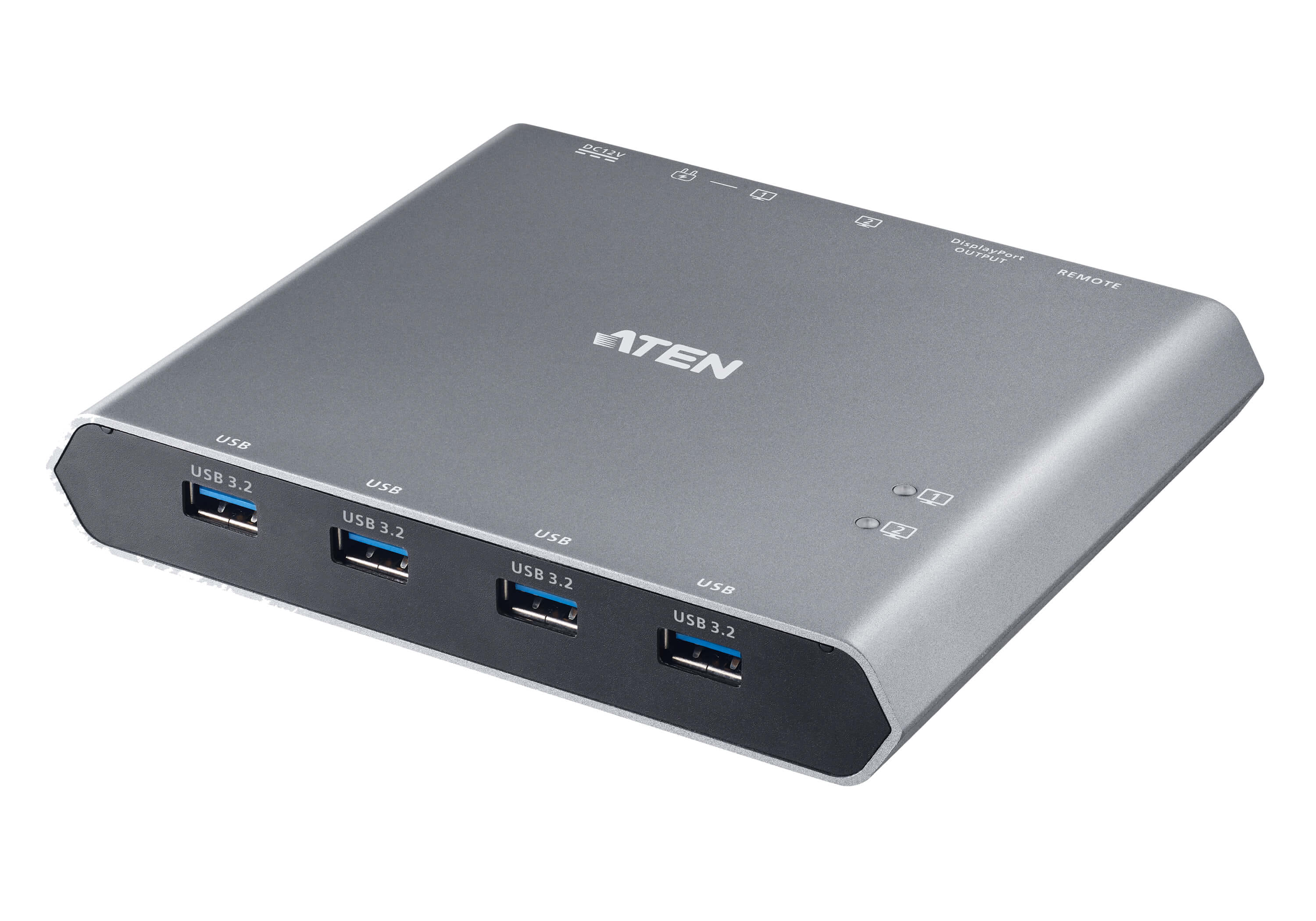

Aten 2 Port 4K DisplayPort USB C KVM Dock Switch with Power Pass through,
2 in 1 solution for 2 USB C host devices " combines a KVM switch and a multiport dock with 4 x USB 3.2 Gen 1 Type A ports, 1 x DisplayPort, 1 x USB C PD input, and 1 x DC jack input
Superior video quality " up to True 4K (3840 X 2160 @ 60 Hz)
ATEN Video DynaSync Technology eliminates boot up display problems and optimizes resolutions when switching among video sources
USB 3.2 Gen 1 compliant
Up to 5 Gbps data transfer rates
Supports DP 1.4 Alt Mode
Supports PD 3.0 up to 100 W USB PD charging " allows your laptop to obtain the maximum power via your USB C power adapter
Host device selection via the included port switch button
Plug and Play " no drivers needed
Superior video quality " up to True 4K (3840 X 2160 @ 60 Hz)
ATEN Video DynaSync Technology eliminates boot up display problems and optimizes resolutions when switching among video sources
USB 3.2 Gen 1 compliant
Up to 5 Gbps data transfer rates
Supports DP 1.4 Alt Mode
Supports PD 3.0 up to 100 W USB PD charging " allows your laptop to obtain the maximum power via your USB C power adapter
Host device selection via the included port switch button
Plug and Play " no drivers needed
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 2 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| USB 2.0 Type-C ports quantity | 3 |
| USB hub |
 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 5 Gbit/s |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Housing material What the casing of the product is made of. | Aluminium |
| Wired remote switch |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported | Android |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 119 mm |
| Depth The distance from the front to the back of something. | 143 mm |
| Height The measurement of the product from head to foot or from base to top. | 23.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 350 g |
| Packaging content | |
| Cables included | USB Type-C |
| Manual |
|
| AC adapter included |
|
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| SKU | 728408 |
| MPN | US3311-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
