Overview

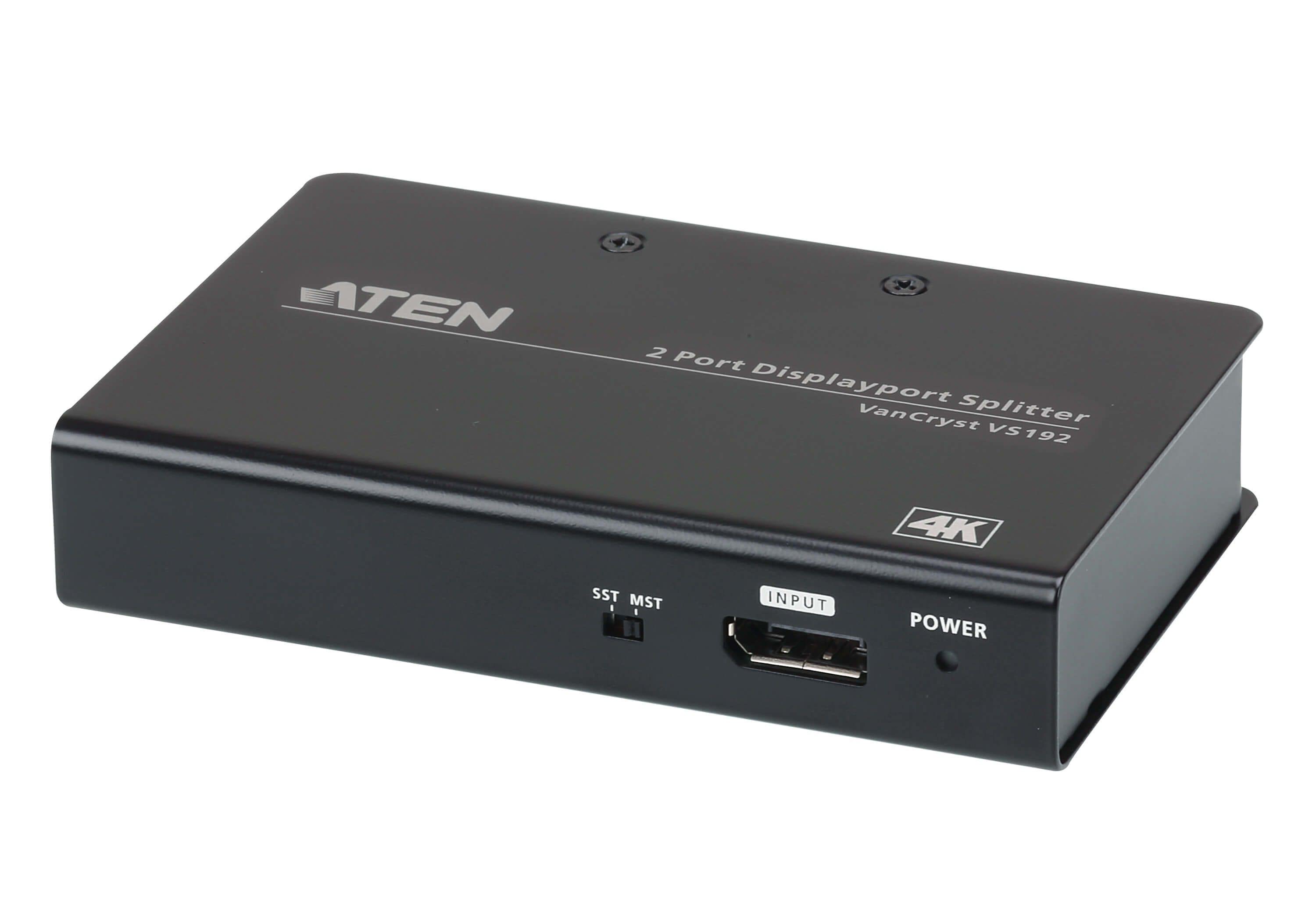

The VS192 2-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to two or four DisplayPort displays.
The VS192 can not only split but also expand DisplayPort audio/video signal on two or four DisplayPort monitors which is ideal for any multi-display application.
The VS192 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in home theater
applications, as well as in corporate, educational and commercial settings.
Package Contents
- 1x VS192 2-Port 4K DisplayPort Splitter
- 1x Power Adapter
- 1x User Instructions
Features
- Connects one DisplayPort source to two or four DisplayPort monitors
- Supports DisplayPort 1.2a; HDCP 1.3
- Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
- Supports MST/ Extend Mode and SST/ Split Mode*
MST/ Extend Mode:
Extend a video source across 2 displays with a maximum resolution of 4K.
SST/ Split Mode:
Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor - Supports Linkrate: HBR2 (High Bit Rate 2)
Note:
* The VS192 will bypass EDID Mode during SST Mode and will detect the resolution of the monitor connected to port 1.
Diagram
Specifications
| Video Output | |
| Interfaces | 2 x DisplayPort Female (Black) |
| Video Input | |
| Interfaces | 1 x DisplayPort Female (Black) |
| Video | |
| Compliance | DP 1.2a; HDCP 1.3 |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz |
| Max. Data Rate | 21.6 Gbps (5.4 Gbps per lane) |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:1.185W:6BTU |
| Environmental | |
| Operating Temperature | 0-40 °C |
| Storage Temperature | -20 - 60 °C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.30 kg ( 0.66 lb ) |
| Dimensions (L x W x H) | 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.) |
| Carton Lot | 20 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| Video out | 2x DisplayPort |
| Video ports quantity The number of ports (sockets) for video input or output. | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection. |
|
| HD-Ready |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160,4096 x 2160 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.185 W |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 125 x 80 x 250 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 300 g |
| Packaging content | |
| Manual |
|
| User guide |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Colour The main colour of the product. |
|
| Logistics data | |
| Products per master (outer) case | 20 pc(s) |
| SKU | 318451 |
| MPN | VS192-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | DisplayPort Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
