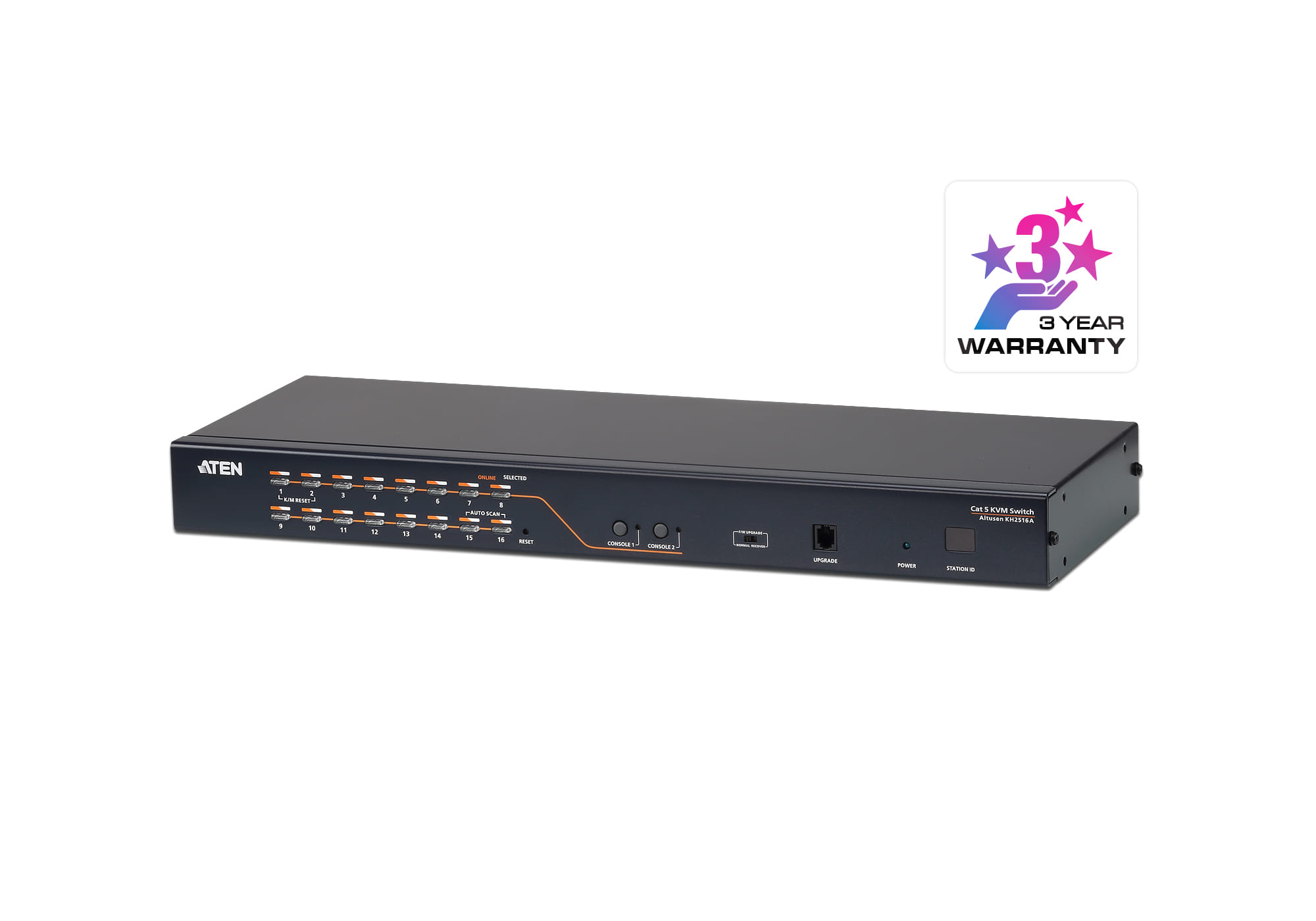

Aten Rackmount KVM Switch 2 Console 16 Port Multi-Interface Cat 5, KVM Cables NOT Included, Daisy Chainable for up to 256 Devices,
Two KVM consoles independently and simultaneously control up to 16 directly connected computers
By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console
Console conversion " any type of KVM console can control any type of computer; mixed combinations (PS/2&USB)
supported on both the KVM console and computer sides
Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters *With KVM Adapter Cable KA7000 series
OSD Backup/Restore feature " enables the administrator to back up the switch's configuration and user profile information
Configure port access rights for users on a port - by - port basis
Diversified port operation mode enables flexible computer management " Occupy, Exclusive and share modes
Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
Multiplatform support " PC, Mac, Sun, and serial
Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
Two-Level Password Security " Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast Mode sends commands from the console to administrator-selected computers " allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
Adapter ID
Firmware Upgradeable
By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console
Console conversion " any type of KVM console can control any type of computer; mixed combinations (PS/2&USB)
supported on both the KVM console and computer sides
Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters *With KVM Adapter Cable KA7000 series
OSD Backup/Restore feature " enables the administrator to back up the switch's configuration and user profile information
Configure port access rights for users on a port - by - port basis
Diversified port operation mode enables flexible computer management " Occupy, Exclusive and share modes
Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
Multiplatform support " PC, Mac, Sun, and serial
Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
Two-Level Password Security " Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast Mode sends commands from the console to administrator-selected computers " allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
Adapter ID
Firmware Upgradeable
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 32 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Console ports | PS/2, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 2 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 32 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | WUXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 437.2 mm |
| Depth The distance from the front to the back of something. | 163.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.21 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 116 mm |
| Package depth The distance from the front to the back of the packaging. | 540 mm |
| Package height The distance from the top to the bottom of the packaging. | 233 mm |
| Package weight Weight of the packaged product. | 3.77 kg |
| Packaging content | |
| Quick installation guide |
|
| Manual |
|
| Logistics data | |
| Master (outer) case net weight | 9.63 kg |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 12.5 kg |
| Products per master (outer) case | 3 pc(s) |
| SKU | 441041 |
| MPN | KH2516A-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
