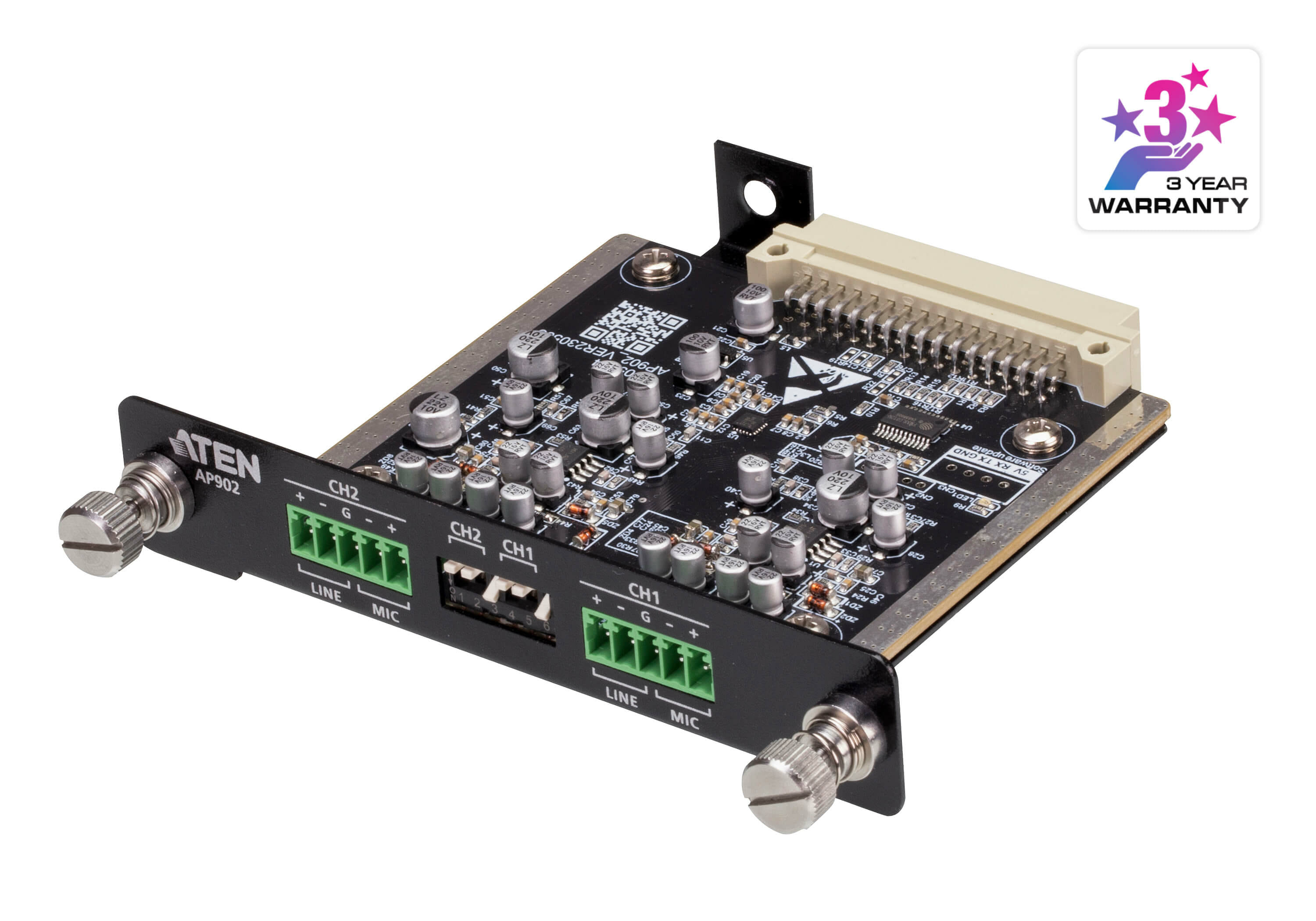

Aten 2-Channel Mic/Line Pre-AMP Expansion Card for AP Series
Item No:
776852
MPN:
AP902-AT
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN AP902, 2.0 channels, 36 dB, 20000 Ohms, 50 - 20000 Hz, 22 mm, 115 mm
Dedicated for use with ATEN
| Audio | |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 2.0 channels |
| Gain | 36 dB |
| Input impedance | 20000 Ω |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 50 - 20000 Hz |
| Ports & interfaces | |
| Number of Euroblock input connectors | 2 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Technical details | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Metallic |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22 mm |
| Depth The distance from the front to the back of something. | 115 mm |
| Height The measurement of the product from head to foot or from base to top. | 110 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 120 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Certificates | |
| Certification | FCC, CE, UKCA |
| SKU | 776852 |
| MPN | AP902-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
