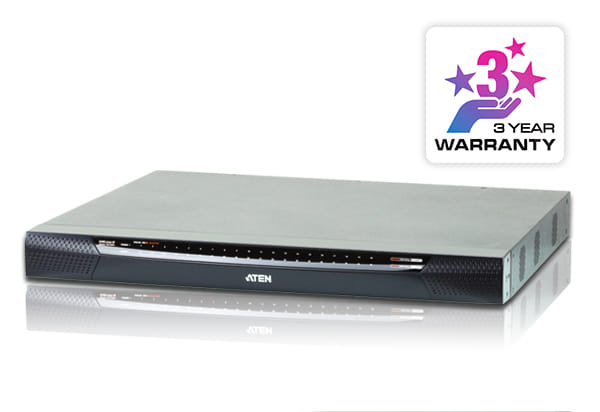

Aten 1L/2-Remote 40P C5 KVM over IP Switch With Virtual Media

Ports & interfaces
Number of computers controlled The amount of computers controlled by this device.	40
Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB.	USB
Mouse port type	USB
Video port type The type of socket in the device for connecting a video e.g. SCART.	DVI-I
DVI-I ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-I is DVI integrated, which means it can support digital and analog.	1
Console ports	DVI-I, USB A
Console USB ports quantity	2
USB hub
USB 2.0 Type-A hub ports quantity	3
USB connector type The type of USB connector/port that this product has.	Mini-USB B, USB Type-A
Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	42
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	3DES, 56-bit AES, 128-bit RC4, 256-bit AES, FIPS 140-2, SSL/TLS

Performance
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	WUXGA
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	1920 x 1200 pixels
Video bandwidth	60 Hz
Data transfer rate (max)	1000 Gbit/s
Scan interval	1,255 s
Number of users The number of people that use or can use this product.	64 user(s)
Firmware upgradeable

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Rack capacity The spase that device fill in rack.	1U
Product colour The colour e.g. red, blue, green, black, white.	Black, Grey
Housing material What the casing of the product is made of.	Metal
Wired remote switch
Cascadable
LED indicators
Push button
Hot keys

Display
Built-in display A display which is part of the product, so you do not need to attach another display.

Power
Power source What is providing power for the product e.g. mains electricity.	AC
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 / 60 Hz
Input current	1 A
External power adapter

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.

Sustainability
Sustainability certificates	RoHS

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions
Width The measurement or extent of something from side to side.	433.6 mm
Depth The distance from the front to the back of something.	412.1 mm
Height The measurement of the product from head to foot or from base to top.	44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	6.23 kg

Packaging data
Package width The distance from one side of the packaging to the other.	506 mm
Package depth The distance from the front to the back of the packaging.	575 mm
Package height The distance from the top to the bottom of the packaging.	130 mm
Package weight Weight of the packaged product.	7.49 kg

Packaging content
Cables included	AC
Manual
Rack mount kit

Logistics data
Master (outer) case net weight	6.23 kg
Harmonized System (HS) code	85176200
Master (outer) case width	506 mm
Master (outer) case length	575 mm
Master (outer) case height	130 mm
Master (outer) case gross weight	7.61 kg
Products per master (outer) case	1 pc(s)
