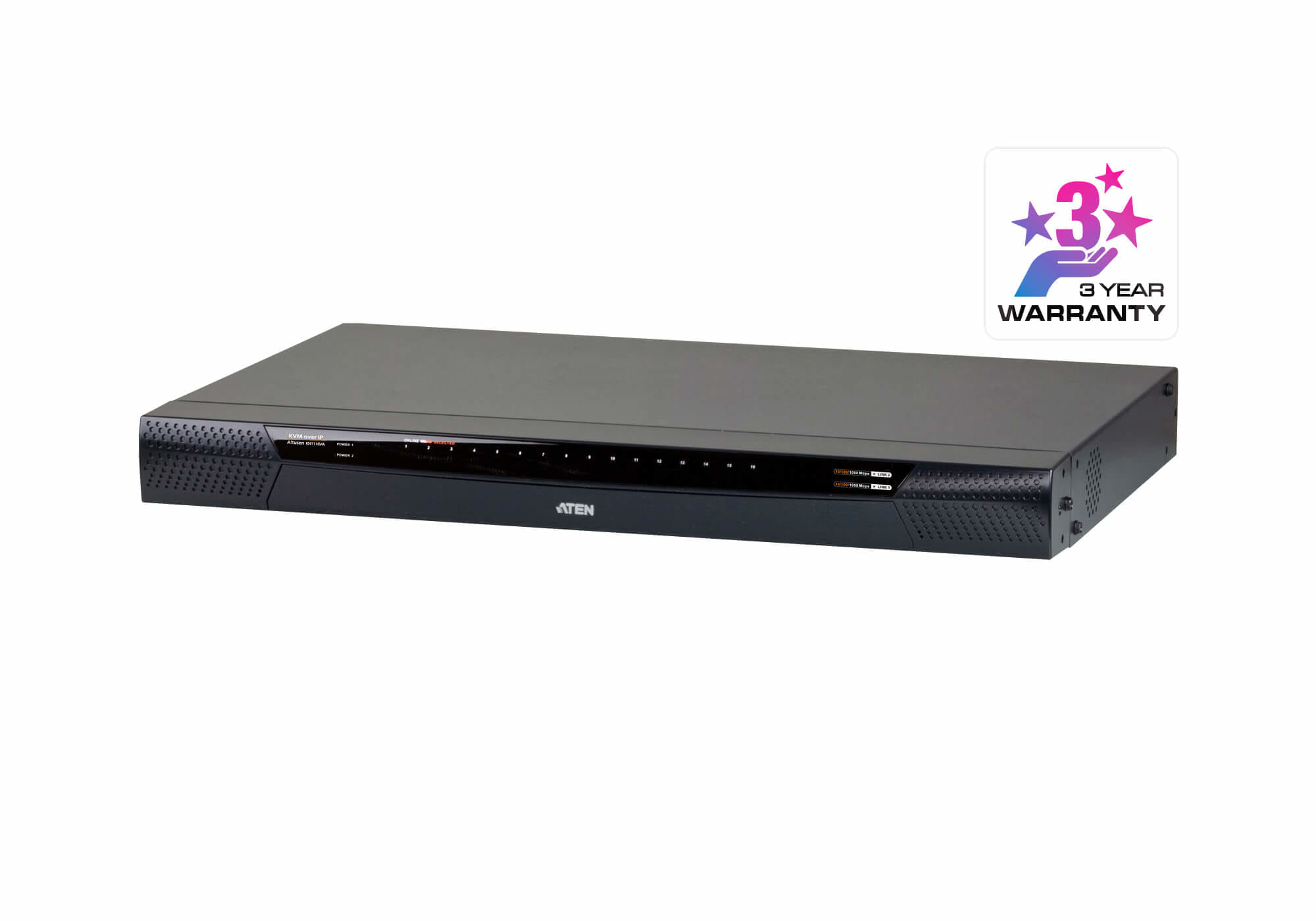

ATEN 1L/1-Remote 16Port Cat 5 KVM overIP Switch
Item No:
700145
MPN:
KN1116VA-AX-U
$5,549.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN KN1116VA AX U, 1920 x 1200 pixels, Ethernet LAN, WUXGA, Rack mounting, 1U, Black
Aten s new generation of KVM over IP switches " KN series allows local console access and remote over IP access for operators to monitor and access their entire data center over a network using a web based browser. In addition, they offer out of band access with external modem support for BIOS level troubleshooting when the network is down.
To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association " KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches user interface.
KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system is recorded and saved to a secure video file as evidence, without exception.
In addition, the KN series is compatible with ATEN s KVM over IP Console Station, the KA82 series. The KA82 series is a hardware based standalone console solution that can centrally manage multiple KN devices. It is especially suitable for environments where a PC is not allowed. The KVM over IP Console Station features a 0U space saving compact design and low power consumption for 24/7 operations.
The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers " allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.
Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode , Mouse DynaSync , Adapter ID and Secure Serial Server Access. The secure access to serial controlled devices includes network equipment, Unix servers, Linux servers, Sun servers and many more serial consoles. It provides installation without needing expensive serial dongles.
With dual on board NICs and dual power supplies, the KVM over IP switches are built for reliability, to ensure 24/7 availability of remote access to all server room computers.
A Windows Client and a Java Client are available for remote access. They allow IP connection and login from anywhere over the internet. In addition, ATEN also provides an iOS APP PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from your iPad. Please visit the PadClient webpage for more information.
With Aten KVM over IP switches, IT administrators can manage their server rooms and data centers from practically anywhere " minimizing travel costs and MTTR (Mean Time to Repair) " ensuring the highest availability of data center services possible.
To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association " KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches user interface.
KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system is recorded and saved to a secure video file as evidence, without exception.
In addition, the KN series is compatible with ATEN s KVM over IP Console Station, the KA82 series. The KA82 series is a hardware based standalone console solution that can centrally manage multiple KN devices. It is especially suitable for environments where a PC is not allowed. The KVM over IP Console Station features a 0U space saving compact design and low power consumption for 24/7 operations.
The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers " allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.
Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode , Mouse DynaSync , Adapter ID and Secure Serial Server Access. The secure access to serial controlled devices includes network equipment, Unix servers, Linux servers, Sun servers and many more serial consoles. It provides installation without needing expensive serial dongles.
With dual on board NICs and dual power supplies, the KVM over IP switches are built for reliability, to ensure 24/7 availability of remote access to all server room computers.
A Windows Client and a Java Client are available for remote access. They allow IP connection and login from anywhere over the internet. In addition, ATEN also provides an iOS APP PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from your iPad. Please visit the PadClient webpage for more information.
With Aten KVM over IP switches, IT administrators can manage their server rooms and data centers from practically anywhere " minimizing travel costs and MTTR (Mean Time to Repair) " ensuring the highest availability of data center services possible.
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 16 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Console ports | USB A |
| Console USB ports quantity | 2 |
| USB hub |
 |
| USB 2.0 Type-A hub ports quantity | 3 |
| USB connector type The type of USB connector/port that this product has. | Mini-USB B, USB Type-A |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 2 |
| Serial port type | RJ-45 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 2 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Number of microphone inputs | 1 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 22 |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS, RSA, SSL/TLS |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | WUXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Scan interval | 1,255 s |
| Number of users The number of people that use or can use this product. | 64 user(s) |
| Firmware upgradeable |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Wired remote switch |
|
| Cascadable |
|
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 287.8 mm |
| Depth The distance from the front to the back of something. | 438.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.56 kg |
| Packaging content | |
| Cables included | AC |
| Manual |
|
| Rack mount kit |
|
| SKU | 700145 |
| MPN | KN1116VA-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
