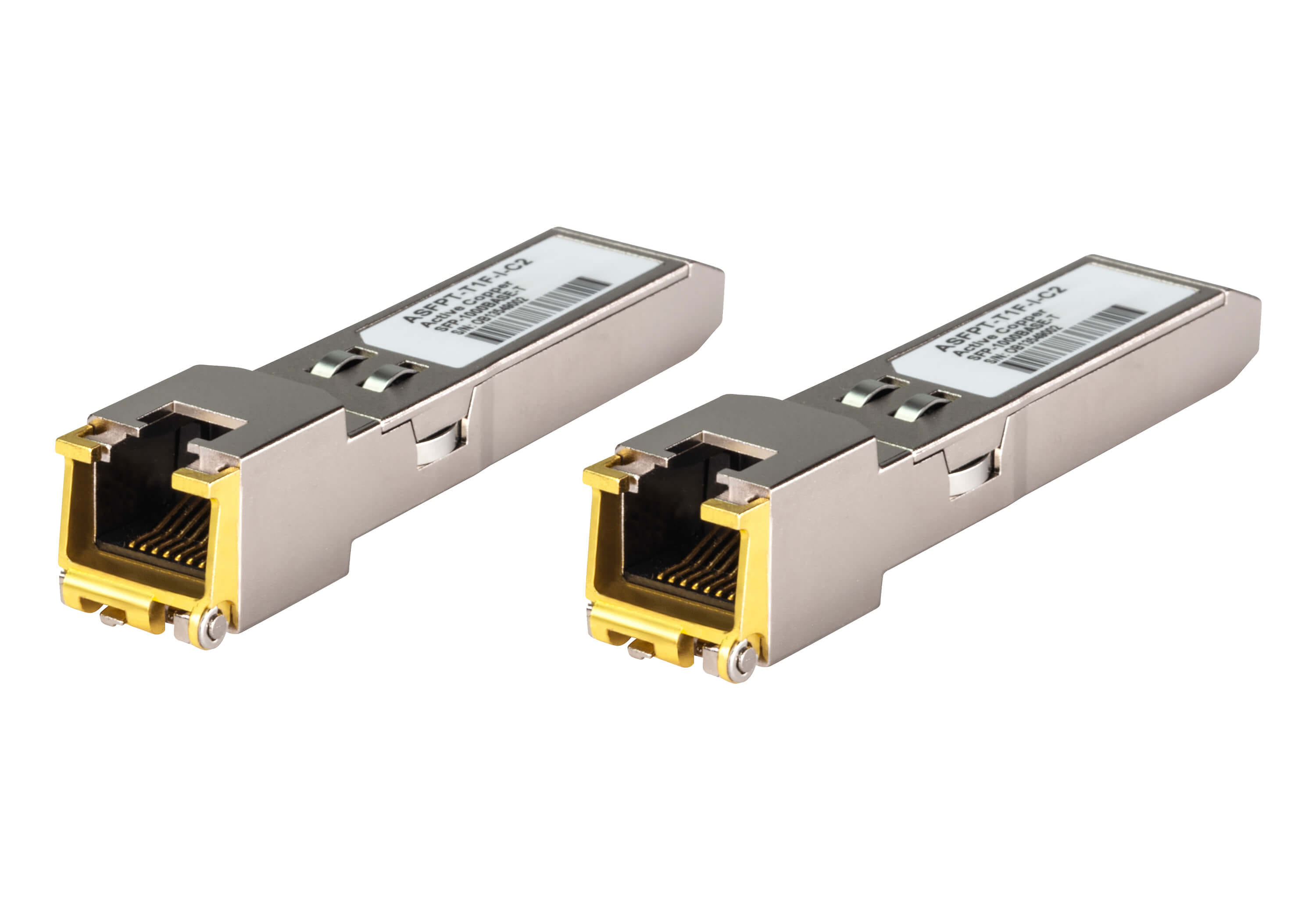

ATEN 2A-143G, Copper, 1000 Mbit/s, SFP, 100 m, IEEE 802.3ab, 1GBASE
The 2A-143G 1Gb Ethernet Copper SFP Transceiver is designed for 1 Gigabit Ethernet environments, enabling standard Cat 5e/6/6a UTP copper cable connections through a network switch's SFP port. Supporting transmission distances of up to 100 meters, the 2A-143G features a hot-pluggable form factor with a standard RJ-45 interface for flexible deployment in copper-based infrastructures. Compliant with IEEE 802.3ab specifications, it is a cost-effective, high-performance solution for extending Ethernet connectivity in environments where fiber is unavailable or unnecessary. It's ideal for office environments or IT deployments that rely on existing copper infrastructure.
| Performance | |
| SFP transceiver type | Copper |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Interface type | SFP |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ab |
| Copper ethernet cabling technology | 1GBASE |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Metallic |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -45 - 90 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 12 mm |
| Depth The distance from the front to the back of something. | 68.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 13.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 20 g |
| Logistics data | |
| Customs product code (TARIC) | 90309000 |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| SKU | 835003 |
| MPN | 2A-143G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
