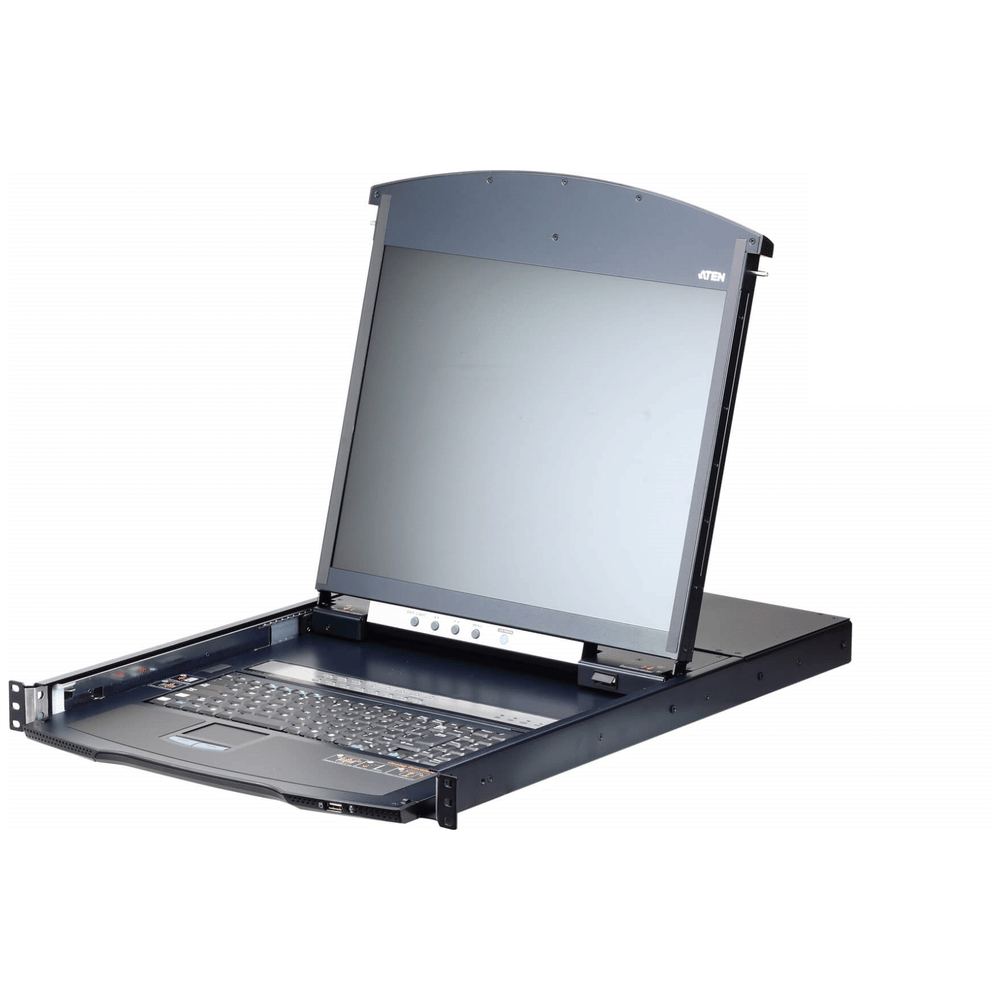

ATEN 19" Dual Rail 16-Port LCD KVM Over IP Switch
Item No:
505979
MPN:
KL1116VN-AXA-AU
$6,899.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
High-Grade Security supports FIPS 140-2 level 1 security standards, Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200, 2x faster virtual media transmission speeds
Features
- Exclusive Features
- High-Grade Security supports FIPS 140-2 level 1 security standards
- Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200
- 2x faster virtual media transmission speeds
- Hardware
- Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
- Integrated KVM console with 19" LED-backlit LCD monitor in a dual rail housing
- One bus for local and one bus for remote KVM over IP access
- Space-saving RJ-45 ports for Cat 5e/6 cable connections
- KVM adapter cables with automatic conversion allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
- Extra Console Ports manage computers from the built-in LCD screen or an external console setup (monitor, USB keyboard and mouse)
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Supports external USB mouse
- Dual rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
- Dual Rail Housing allows the LCD monitor to slide independently of the keyboard and touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock enables the console drawer to remain securely locked away when not in use
- LCD power button saves energy and prolongs the life of the display
- High Port Density RJ-45 connectors provide up to 16 ports in 1U housing
- Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
- Blade server support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- High Video Resolutions: up to 1920 x 1200 @ 60 Hz with 24-bit color depth at the switch external local console and on remote displays; up to 1280 x 1024 @ 75 Hz at the switch built-in LCD screen
- Monitor and control up to 16 computers on a single level or control up to 256 computers in a cascade*
- * Cascade-compatible KVM switches include the following: CS1308, CS1316, KH1508A and KH1516A.
- Management
- Up to 64 user accounts
- Up to 32 concurrent logins
- End Session Feature: administrators can terminate any remote session
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Remote power control for attached ATEN PDU devices
- Integration with ATEN CC2000 Management Software
- Integration with ATEN CCVSR Video Session Recording Software*
- Event logging and Windows-based Log Server support
- Local Log Event
- Firmware upgradeable
- IPv6 capable
- Critical system event notification via SMTP email; SNMP trap and Syslog support
- Customizable events notification
- Out-of-Band Access: modem dial-in / dial-out / dial-back support
- Adapter ID Function: stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches *Supports recording computer operations accessed via remote sessions.
- Easy-to-Use Interface
- Easy computer selection via pushbuttons, OSD (On-Screen Display), and Browser-based GUI
- Local console, browser, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
- ATEN Exclusive Panel Array Mode monitor all ports in a grid display of all desktops at both the local and remote screen
- Keyboard/Mouse Broadcast: keyboard and mouse signals can be duplicated across all servers at once
- Launch virtual remote desktop sessions to control multiple servers at the same time
- Full screen or scalable virtual remote desktop window
- Video syncing allows the local console monitor EDID information to be stored on the KVM Adapter Cables for display resolution optimization
- Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
- Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure browser logins
- Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption Configurable user and group permissions for server access and control
- Automated CSR creation utility and third-party CA certificate authentication
- IP/MAC Filter support for enhanced security protection
- Virtual Media
- Virtual media enables file application, OS patching, software installations and diagnostic testing
- Works with USB-enabled servers at the operating system and BIOS level
- Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
- Supports Smart Card/CAC Reader
- Virtual Remote Desktop
- Video quality can be adjusted to optimize data transfer speeds; color depth, threshold and noise settings reduce data transmission to lower bandwidth
- Full screen or scalable window for virtual remote desktop
- Message board feature allows logged in users to communicate with each other
- Mouse DynaSync: automatically synchronizes the local and remote mouse movements
- Exit Macro support
- On-screen keyboard with multi-language support
- BIOS-level access for troubleshooting
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 16 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DVI-D/VGA |
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 1 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Console ports | DVI-D,USB A,VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| Scan interval | 1,255 s |
| DDC2B support |
|
| Firmware upgradeable |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Cascadable |
|
| LED indicators |
|
| Push button |
|
| Keyboard language The letters which are marked on the keys for convenience of the keyboard usage with specific language. | Chinese Traditional, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, UK English, US English |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 48.3 cm (19") |
| On Screen Display (OSD) |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 701.2 mm |
| Depth The distance from the front to the back of something. | 480 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 15.3 kg |
| Packaging content | |
| Cables included | AC |
| Manual |
|
| Rack mount kit |
|
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 505979 |
| MPN | KL1116VN-AXA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
