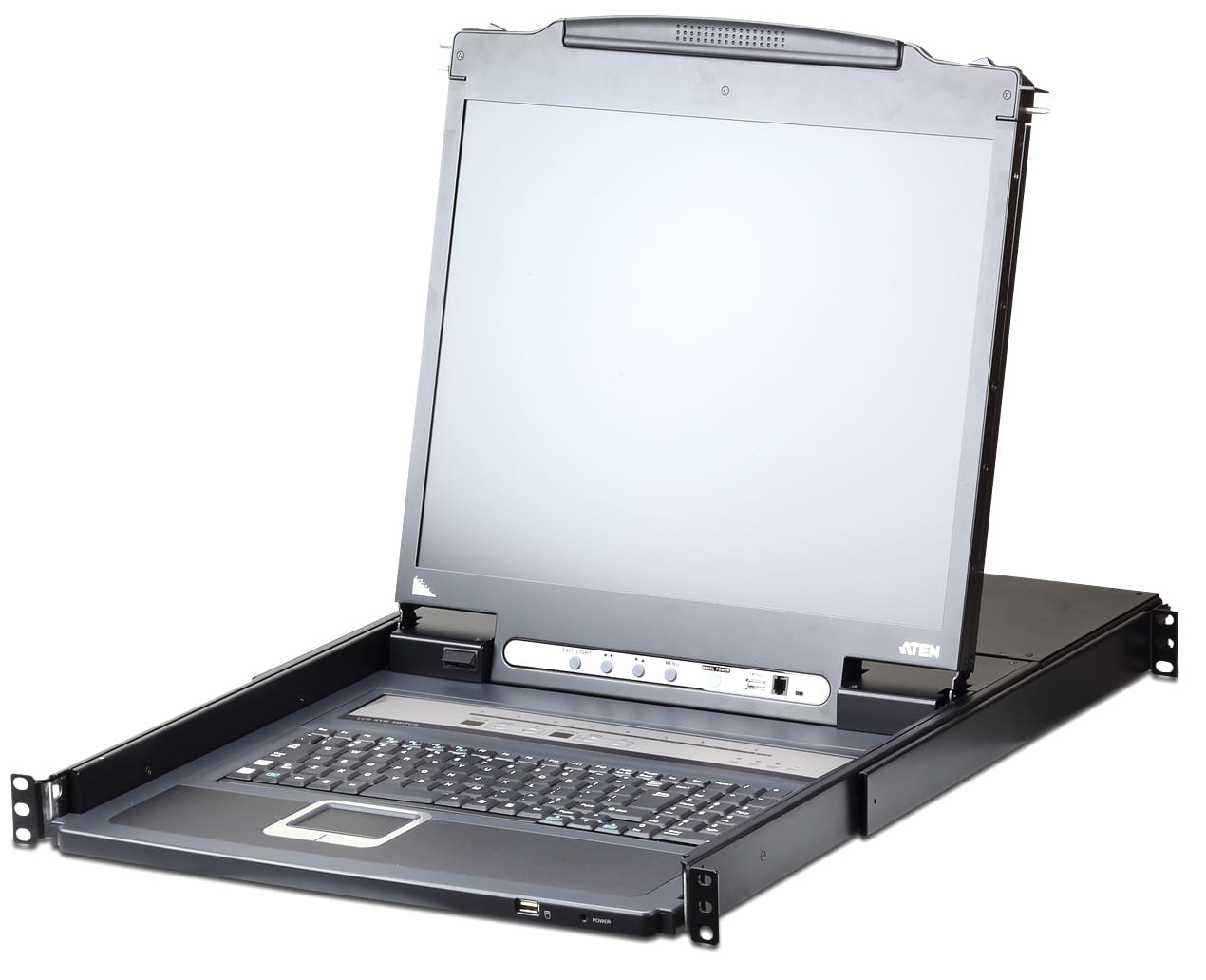

ATEN 19" 1 Local/Remote Share Access 8-Port Single Rail LCD KVM over IP Switch
• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight
conditions
• Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
• Space saving technology - up to two consoles (one bus) control up to 8/16 computers
• Daisy chain up to 15 additional units – control up to 128 (CL5708I) or 256 (CL5716I) computers from a single console
(With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
• Extra console port – manage computers from an external console (VGA monitor, USB or PS/2 keyboard and mouse)
• Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit
color depth for remote sessions
• Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
• LCD module USB port allows connected computers to access USB peripherals*
• Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel
LED indicates station's position
• Hot pluggable - add or remove computers without having to power down the switch
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers
even when the console focus is elsewhere
• Supports multimedia USB keyboards for Windows, Mac and Sun
• Supports external USB mouse
• Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
• Rack mountable in a 1U system rack
• LCD module rotates up to 115 degrees for a more comfortable viewing angle
* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set
connections
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 128 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Network | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 255 s |
| Daisy chain |
 |
| Firmware upgradeable |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal, Plastic |
| LED indicators |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 48.3 cm (19") |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50-60 Hz |
| Input current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 25 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 689.2 mm |
| Depth The distance from the front to the back of something. | 480 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 13.4 kg |
| SKU | 234360 |
| MPN | CL5708IN-ATA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Features | RGB |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
