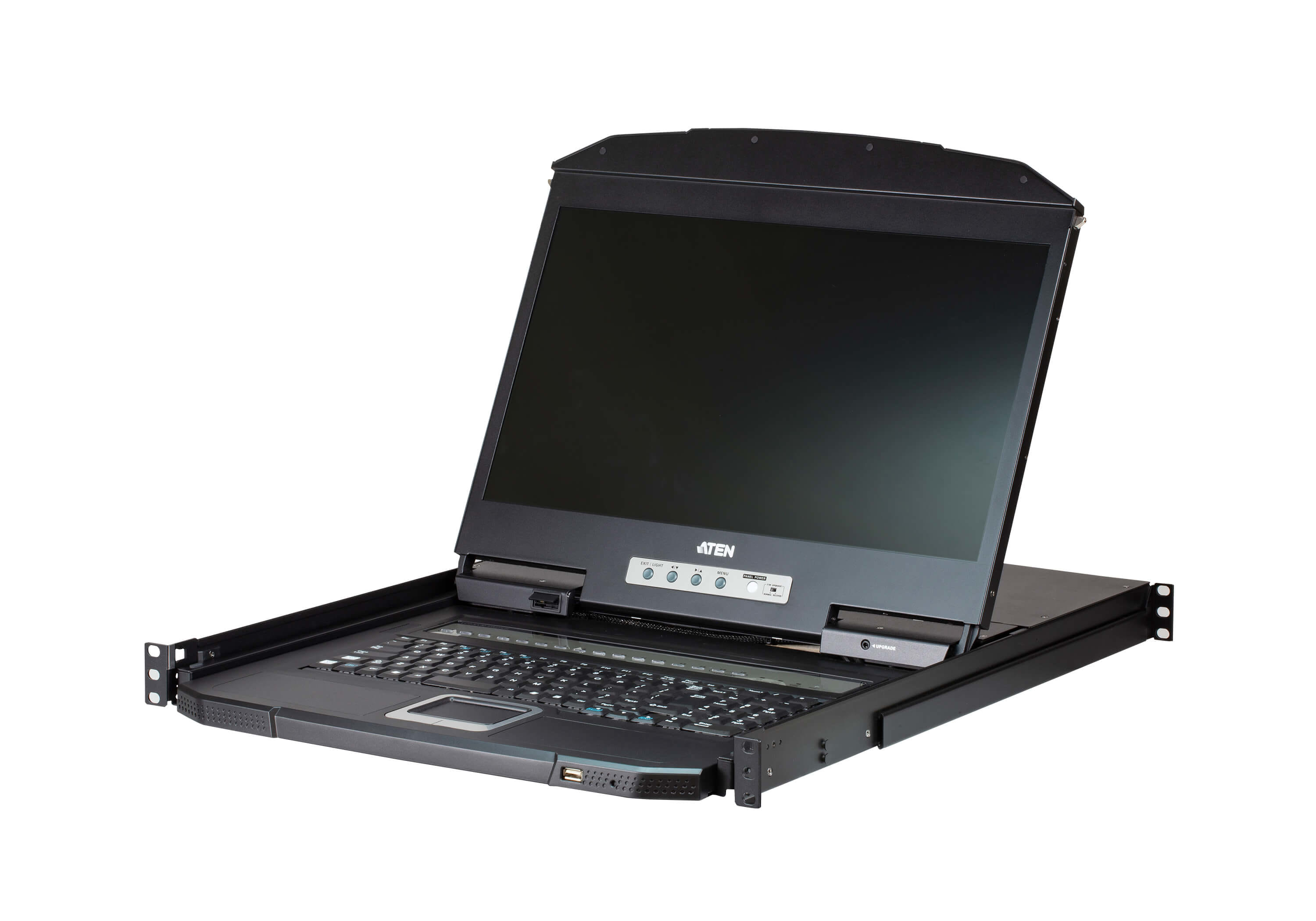

Aten Rackmount KVM Switch 16 Port VGA w/ 18.5' LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design
Aten 18.5' Short Depth 16 Port LCD KVM, can be mounted up to a depth of 42cm to 72cm and LCD panel with 1366 x 768 resolution, includes 2 1.8m VGA USB KVM Cable
Exclusive LED illumination light designed to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Cascade up to 2 levels " CL3116 controls up to 256 computers from a single console
Keyboard and mouse emulation (PS/2 and USB)
Specifications
Function CL3116NX
Computer Connections
Direct 16
Connectors
KVM Ports 16 x SPHD Female (Yellow)
Switches
Port Selection 16 x Pushbutton
Video
Input Video Resolution up to 1920 - 1200 @ 60 Hz;
1366 - 768 @ 60 Hz, DDC2B
Scan Interval 1-255 seconds
Emulation
Keyboard / Mouse PS/2, USB
Maximum Input Power Rating 100 "240 V AC, 50-60 Hz, 1 A
Power Consumption AC110V:14.1W:70BTU
AC220V:14.9W:74BTU
Environmental
Operating Temperature 0-40 DegC
Storage Temperature -20-60 DegC
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 10.60 kg ( 23.35 lb )
Dimensions (L x W x H) 48.06 x 63.17 x 4.28 cm
Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
Exclusive LED illumination light designed to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Cascade up to 2 levels " CL3116 controls up to 256 computers from a single console
Keyboard and mouse emulation (PS/2 and USB)
Specifications
Function CL3116NX
Computer Connections
Direct 16
Connectors
KVM Ports 16 x SPHD Female (Yellow)
Switches
Port Selection 16 x Pushbutton
Video
Input Video Resolution up to 1920 - 1200 @ 60 Hz;
1366 - 768 @ 60 Hz, DDC2B
Scan Interval 1-255 seconds
Emulation
Keyboard / Mouse PS/2, USB
Maximum Input Power Rating 100 "240 V AC, 50-60 Hz, 1 A
Power Consumption AC110V:14.1W:70BTU
AC220V:14.9W:74BTU
Environmental
Operating Temperature 0-40 DegC
Storage Temperature -20-60 DegC
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 10.60 kg ( 23.35 lb )
Dimensions (L x W x H) 48.06 x 63.17 x 4.28 cm
Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 47 cm (18.5") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1366 x 768 pixels |
| Display The description of display that can includes display type, resolution, size etc. | TFT-LCD |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 250 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 170° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 160° |
| On Screen Display (OSD) |
 |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.3 x 0.3 mm |
| Display type Type of display (screen) e.g. LCD. | LED |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal, Plastic |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Operating relative humidity (H-H) | 0 - 80% |
| Built-in KVM switch |
|
| KVM switch ports quantity | 16 |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| LED indicators |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) in |
|
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Keyboard | |
| Hot keys |
|
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 / 60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 480.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 631.7 mm |
| Depth The distance from the front to the back of something. | 42.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10.6 kg |
| SKU | 441326 |
| MPN | CL3116NX-ATA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
