Details:

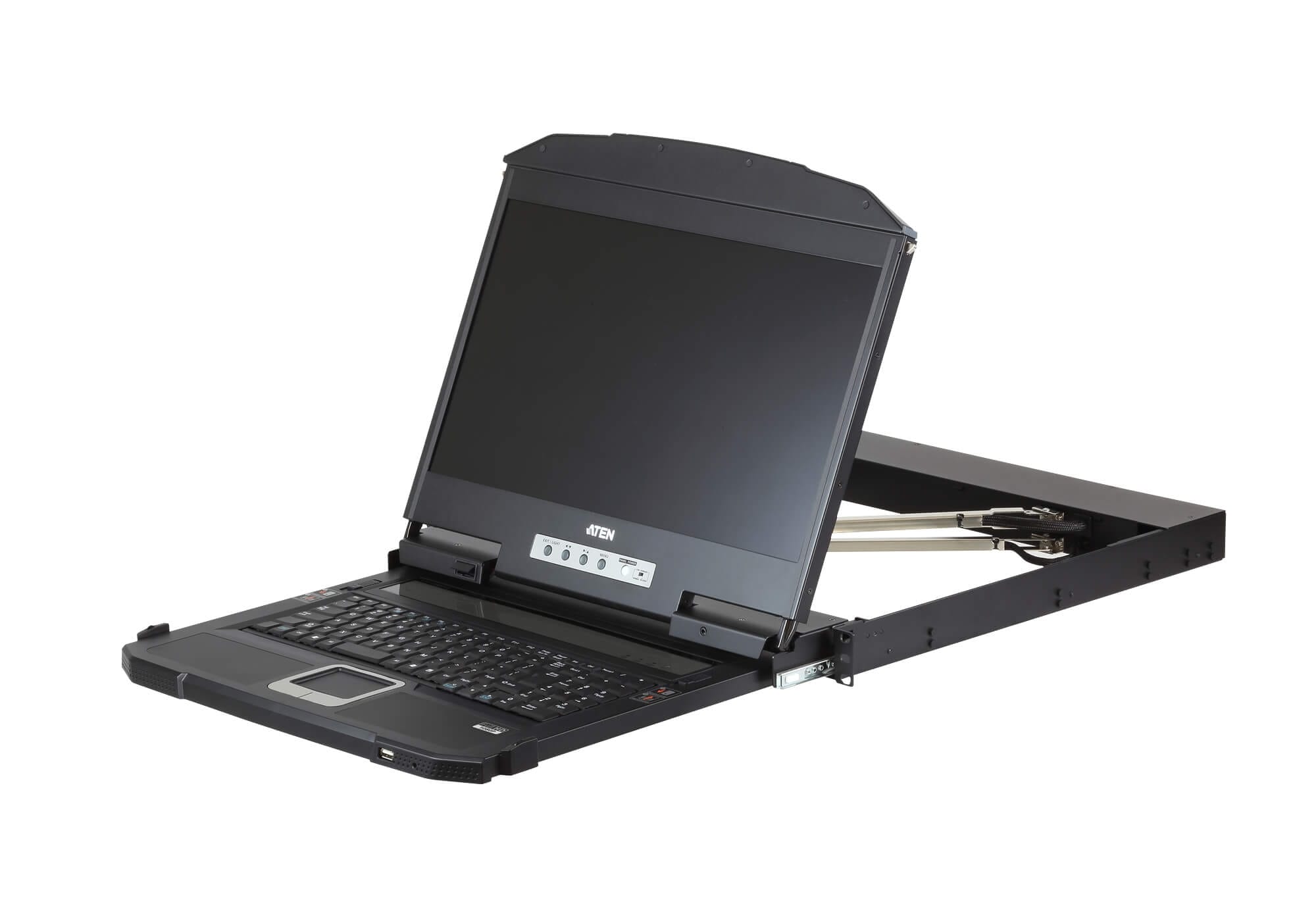

The CL3800 USB HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. In addition to saving valuable space on the rack, the CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) and compact control rooms.
The CL3800 supports three types of video input – HDMI, DVI, and VGA – and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. The CL3800’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area.
Furthermore, the dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity.
For added convenience, users can choose to manage the computer from an external console. The CL3800 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also includes two mini stereo ports for connecting audio speakers.
With a rich feature set, the CL3800 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.
CL3800NW: 18.5" LCD screen with Full HD resolution of 1920 x 1080
Specifications:
Computer Connections
- Direct1
- Console Selection: Hotkey
Connectors
- External Console Ports:
- 1 x HDMI Female
- 1 x DVI-D Female (White)
- 1 x HDB-15 Female (Blue)
- 2 x USB Type A Female
- 1 x 3.5mm Audio Jack Female (Green)
- KVM Ports:
- 1 x HDMI Female
- 1 x DVI-D Female (White)
- 1 x HDB-15 Male (Blue)
- 1 x USB Type B Female
- 1 x 3.5mm Audio Jack Female (Green)
- USB Port:1 x USB Type A Female
- Firmware Upgrade:1 x 3.5mm Audio Jack Female (Black)
- Power: 1 x 3-prong AC Socket
Switches
- Reset: 1 x Semi-recessed Pushbutton
- Firmware Upgrade:1 x Slide
- Power: 1 x Rocker
- LCD Power: 1 x Pushbutton
- LCD Adjustment: 4 x Pushbutton
LEDs
- Power:
- 1 x KVM Console (Dark Green)
- 1 x LCD (Orange)
- Lock:
- 1 x NumLock (Green)
- 1 x CapsLock (Green)
- 1 x ScrollLock (Green)
Video
- Input Video Resolution: 1920 x 1200 @ 60 Hz, DDC2B
Panel Spec
- LCD Module:18.5" TFT-LCD
- Resolution:1920 x 1080 @ 60 Hz
- Pixel Pitch: 0.213 mm x 0.213 mm
- Response time:20 ms
- Viewing Angle:178° (H), 178° (V)
- Contrast Ratio:1000:1
- Support Color:16.77M colors
- Luminance:350 cd/m²
Emulation
- Keyboard / Mouse:USB
- Maximum Input Power Rating:100–240V AC; 50–60Hz; 1A
- Power Consumption:
- AC110V:26.6W:140BTU
- AC220V:26.8W:141BTU
Environmental
- Operating Temperature:0-40°C
- Storage Temperature:-20-60°C
- Humidity0 - 80% RH, Non-condensing
Physical Properties
- Housing: Metal
- Weight:9.61 kg (21.17 lb)
- Dimensions (L x W x H)
- 48.06 x 51.42 x 4.28 cm
- (18.92 x 20.24 x 1.69 in.)
- Note:For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 47 cm (18.5") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 350 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.213 x 0.213 mm |
| Display type Type of display (screen) e.g. LCD. | LED |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 20 ms |
| Number of OSD languages | 15 |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal, Plastic |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Operating relative humidity (H-H) | 10 - 80% |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Console port | HDMI/VGA/DVI/USB/3.5mm |
| LED indicators |
|
| Sustainability certificates | RoHS |
| Rack capacity The spase that device fill in rack. | 1U |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out |
|
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DVI/HDMI/VGA |
| USB 2.0 Type-A ports quantity | 2 |
| Keyboard | |
| Keyboard number of keys | 105 |
| Built-in touchpad |
|
| Hot keys |
|
| Certificates | |
| Certification | UL 60950-1, CAN/CSA |
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 480.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 514.2 mm |
| Depth The distance from the front to the back of something. | 42.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.61 kg |
| SKU | 262724 |
| MPN | CL3800NW-ATA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
| Stock Availability | Available for Shipping |
