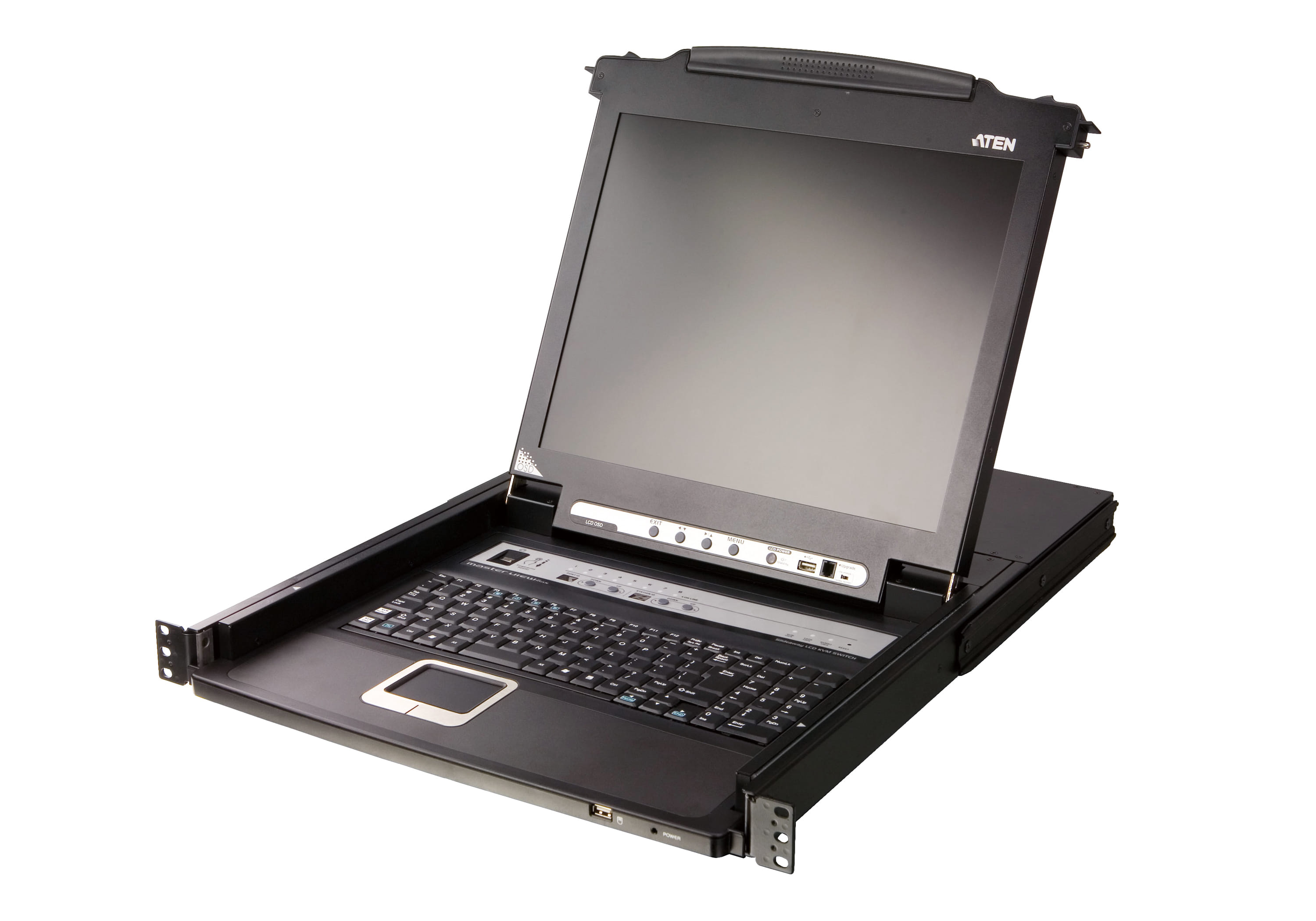

Aten 17" 8P PS/2-USB VGA LCD KVM Switch With USA Keyboard
Item No:
699788
MPN:
CL5708FM-AT-AU
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN CL5708FM AT AU, 1920 x 1200 pixels, WUXGA, Rack mounting, 1U, Black
The CL5708 Slideaway LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.
The CL5708 offers a space saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED backlit LCD monitor, and touchpad in a 1U rack mountable sliding housing.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
The CL5708 offers a space saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED backlit LCD monitor, and touchpad in a 1U rack mountable sliding housing.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 8 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 8 |
| Console ports | VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| Console port | DB-25 |
| RJ-11 ports quantity | 1 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | WUXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| DDC2B support |
 |
| Daisy chain |
|
| Firmware upgradeable |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal, Plastic |
| LED indicators |
|
| Hot keys |
|
| Keyboard language The letters which are marked on the keys for convenience of the keyboard usage with specific language. | Swiss, Italian, French, Japanese, UK English, German, Korean, Russian, US English, Chinese Traditional, Hungarian, Spanish |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 43.2 cm (17") |
| On Screen Display (OSD) |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 642.7 mm |
| Depth The distance from the front to the back of something. | 480 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 13.6 kg |
| Packaging content | |
| Cables included | AC, KVM |
| Manual |
|
| Rack mount kit |
|
| SKU | 699788 |
| MPN | CL5708FM-AT-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
