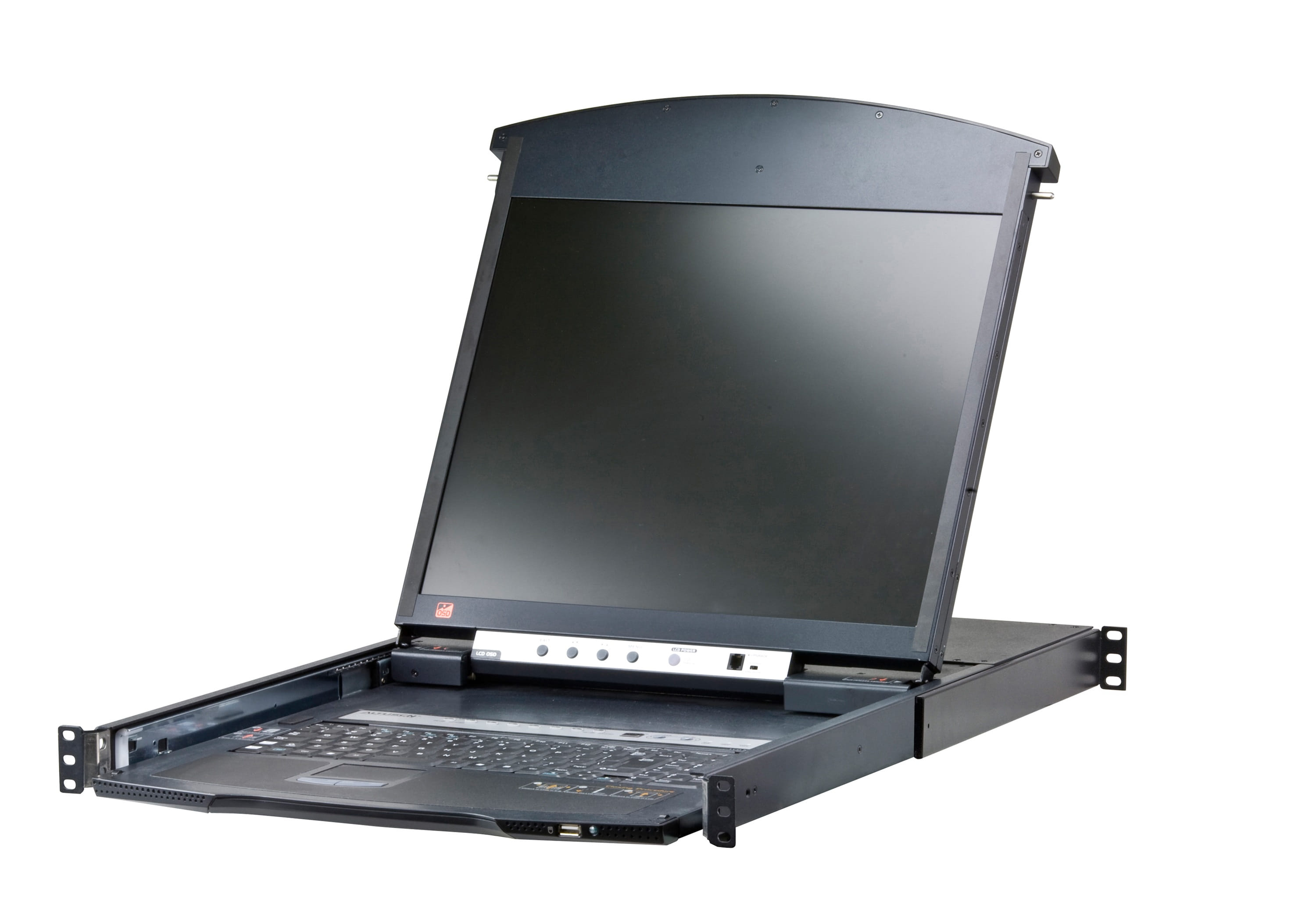

Aten 17" 8-Port C5 Dual Rail LCD KVM I-Port Switch With US Keyboard
Item No:
700118
MPN:
KL1508AIM-AXA-AU
$9,999.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 10-15 business days
Store Availability
- 11-16 business days at Bankstown Store
- 11-16 business days at Castle Hill Store
- 10-15 business days at Northmead Store
Shipping Estimate
ATEN 1 Local/Remote Share Access 8 Port Multi Interface Cat 5 Dual Rail LCD KVM over IP switch, 43.2 cm (17"), 1280 x 1024 pixels, TFT LCD, 250 cd/m 2, 1000:1, 170 Deg
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 43.2 cm (17") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 1024 pixels |
| Display The description of display that can includes display type, resolution, size etc. | TFT-LCD |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 250 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 170° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 160° |
| On Screen Display (OSD) |
 |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.264 x 0.264 mm |
| Display type Type of display (screen) e.g. LCD. | LED |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 5 ms |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Console port | VGA/USB/PS2 |
| Daisy chain |
|
| Number of computers controlled The amount of computers controlled by this device. | 8 |
| On/off switch The button which is pressed to switch the device on or off. |
|
| LED indicators |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Ports & interfaces | |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| USB 2.0 Type-A ports quantity | 2 |
| Keyboard | |
| Built-in touchpad |
|
| Hot keys |
|
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 22.2 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 701.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 480 mm |
| Depth The distance from the front to the back of something. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 15.2 kg |
| Packaging content | |
| Cables included | AC |
| Mounting brackets included |
|
| Manual |
|
| Rack mount kit |
|
| SKU | 700118 |
| MPN | KL1508AIM-AXA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
