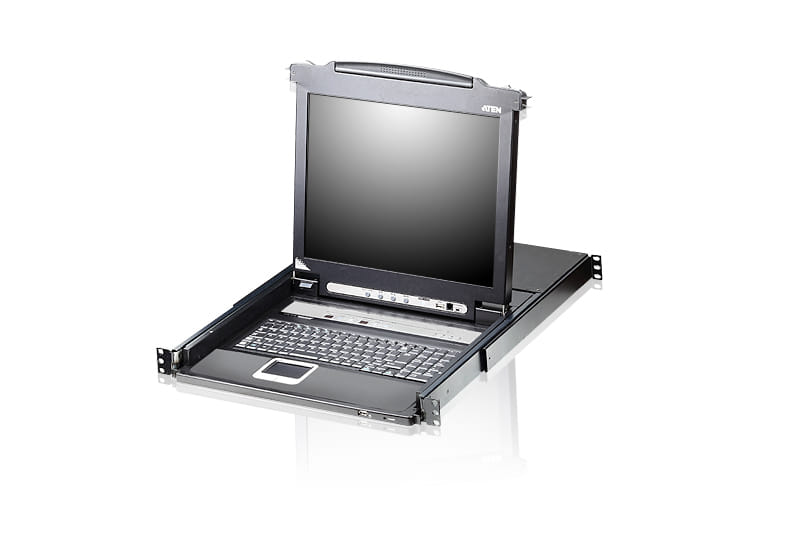

Aten Rackmount KVM Switch Single Rail 16 Port VGA PS/2-USB w/ 17' LCD Display, 2x Custom KVM Cables, 1280x1024@75hz Display, LED Illumination
The CL5716 Slideaway LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.
The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17' or 19' LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17' or 19' LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 16 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 16 |
| Console ports | PS/2, VGA (D-Sub) |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | SXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1280 x 1024 pixels |
| Video bandwidth | 75 Hz |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
 |
| Daisy chain |
|
| Number of users The number of people that use or can use this product. | 5 user(s) |
| Firmware upgradeable |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Push button |
|
| Hot keys |
|
| Keyboard language The letters which are marked on the keys for convenience of the keyboard usage with specific language. | Chinese Traditional, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, UK English, US English |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | LED |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 43.2 cm (17") |
| On Screen Display (OSD) |
|
| Sustainability | |
| Sustainability certificates | RoHS |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide |
|
| Manual |
|
| SKU | 444392 |
| MPN | CL5716M-ATA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
