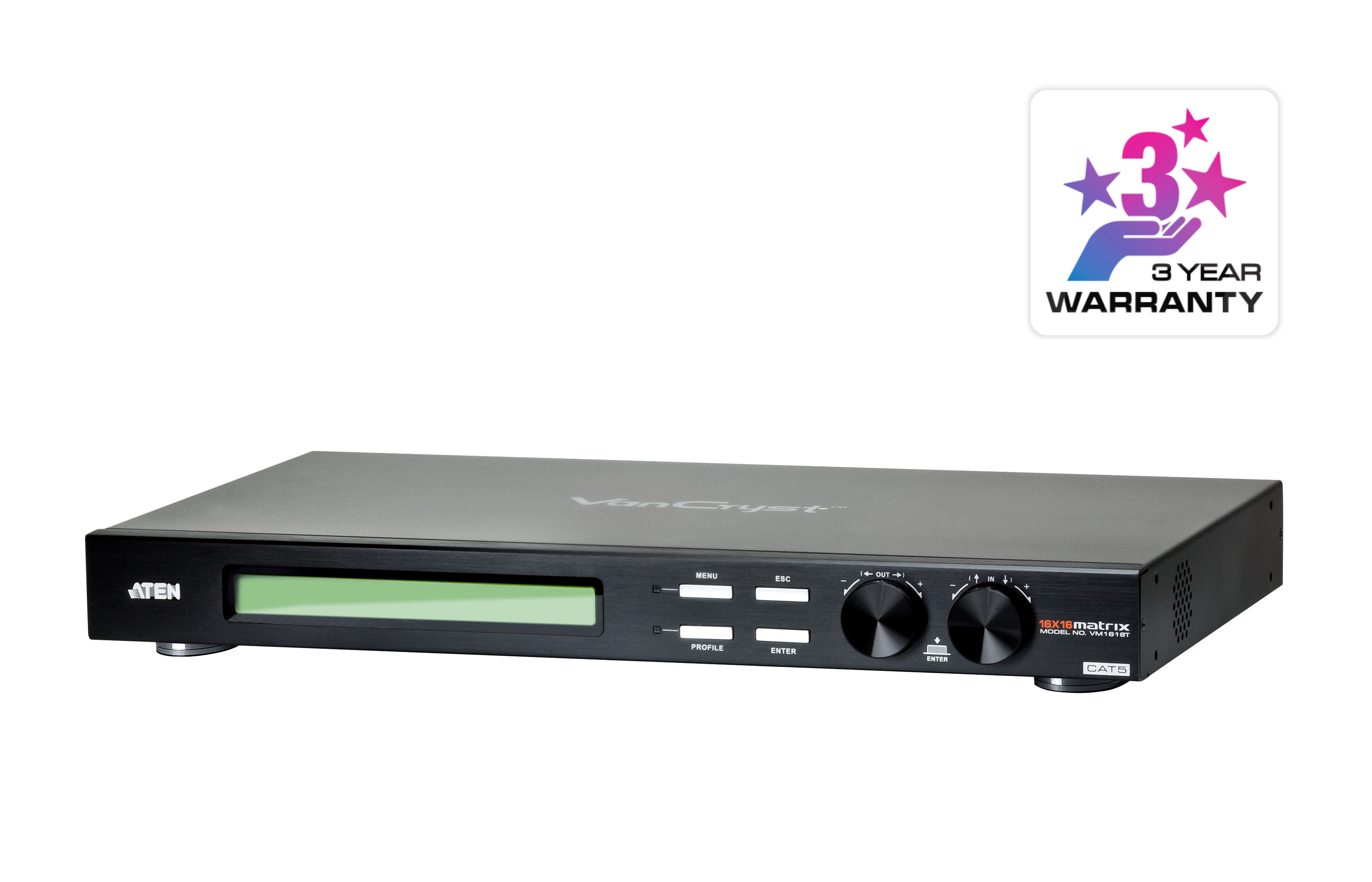

Aten 16X16 VGA/Audio Cat5 Matrix Switch
Item No:
700523
MPN:
VM1616T-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VM1616T AT U, AV matrix switcher, 500 MHz, 1920 x 1200 pixels, Black, Metal, Buttons
The VanCryst Media Matrix Solution is a combination of the VM1616T 16 x 16 Cat 5 A/V Matrix Switch and the VE500/VE300 A/V Over Cat 5 Extender. The VM1616T is a Matrix Switch that uses VE500/VE300 extenders to route and distribute audio, video and RS 232 signals over distances of up to 300 meters with 1920 x 1200 video resolutions.
The VM1616T can receive data from up to 16 audio/video sources and transmit data to up to 16 1 audio/video displays. The VM1616T offers several convenient ways to access and control the source devices: locally, with front panel pushbuttons and an RS 232/RS 485/RS 422 serial port; and remotely, over the Internet with a browser based web page interface.
The Media Matrix Solution is an ideal solution when long runs to the A/V output locations are required, and where versatility and security are essential. The VM1616T is designed for deployment in environments that involve routing video signals such as those found in casinos, transportation and logistics centers, traffic control centers, port security facilities, industrial supervision settings, etc.
The VM1616T can receive data from up to 16 audio/video sources and transmit data to up to 16 1 audio/video displays. The VM1616T offers several convenient ways to access and control the source devices: locally, with front panel pushbuttons and an RS 232/RS 485/RS 422 serial port; and remotely, over the Internet with a browser based web page interface.
The Media Matrix Solution is an ideal solution when long runs to the A/V output locations are required, and where versatility and security are essential. The VM1616T is designed for deployment in environments that involve routing video signals such as those found in casinos, transportation and logistics centers, traffic control centers, port security facilities, industrial supervision settings, etc.
| Features | |
| Product type The sub-category of the product. | AV matrix switcher |
| Maximum pixel clock | 500 MHz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Firmware upgradeable |
 |
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Control type The way in which the device is controlled. | Buttons |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display type Type of display (screen) e.g. LCD. | LCD |
| Ports & interfaces | |
| VGA (D-Sub) output ports | 1 |
| RJ-45 input ports | 16 |
| RJ-45 output ports | 16 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 33 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 2 |
| Analog audio output terminal ports | 1 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 271.2 mm |
| Depth The distance from the front to the back of something. | 432.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.63 kg |
| Packaging content | |
| Cables included | AC |
| Rack mount kit |
|
| Manual |
|
| Mounting brackets included |
|
| SKU | 700523 |
| MPN | VM1616T-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
