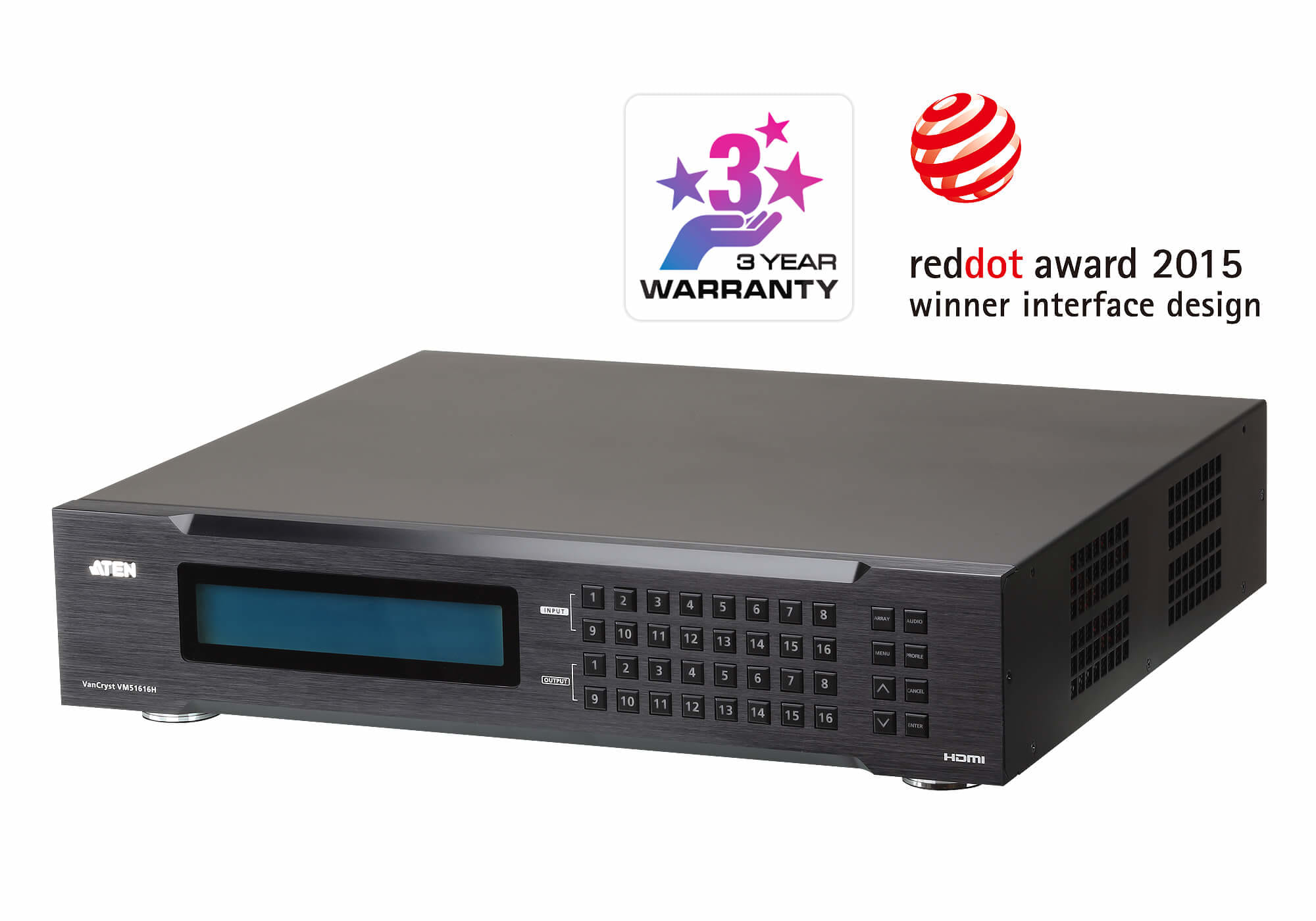

Aten 16x16 HDMI Matrix Switch With Scaler
Item No:
700535
MPN:
VM51616H-AT-U
$26,851.65
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Aten Professional Matrix 16x16 HDMI Matrix with Scaler, Seamless Switch, control via front-panel pushbuttons
The VM51616H is a 16 x 16 HDMI Matrix Switch that offers an easy and affordable way to route any of 16 HDMI video and audio sources to 16 HDMI displays, with a quick view of all port connections via the front panel LCD or local HDMI output for multiple source preview.
The VM51616H features seamless switching that employs an FPGA matrix architecture to ensure continuous video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the VM51616H easily converts various input resolutions to optimum output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall function with an intuitive web GUI that allows you create 32 connection profiles that can be customized into different video wall layouts.
The VM51616H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently delivered to multiple locations, such as railway stations, competition venues, casinos, control centers, conference rooms, logistics centers, security management, and more.
Connects any of 16 HDMI sources to any of to 16 HDMI displays
Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web-based GUI or Telnet
View and control via ATEN Video Matrix Control App in a swift and agile way
Seamless Switch features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
Scaler "features a video scaling function to convert input resolutions to the optimum display resolutions
Video Wall "allows you to create custom video wall layouts via intuitive web GUI*
EDID Expert "selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
FrameSync prevents image tearing by synchronizing the scaler output frame rate to the input signal frame
The VM51616H features seamless switching that employs an FPGA matrix architecture to ensure continuous video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the VM51616H easily converts various input resolutions to optimum output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall function with an intuitive web GUI that allows you create 32 connection profiles that can be customized into different video wall layouts.
The VM51616H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently delivered to multiple locations, such as railway stations, competition venues, casinos, control centers, conference rooms, logistics centers, security management, and more.
Connects any of 16 HDMI sources to any of to 16 HDMI displays
Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web-based GUI or Telnet
View and control via ATEN Video Matrix Control App in a swift and agile way
Seamless Switch features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
Scaler "features a video scaling function to convert input resolutions to the optimum display resolutions
Video Wall "allows you to create custom video wall layouts via intuitive web GUI*
EDID Expert "selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
FrameSync prevents image tearing by synchronizing the scaler output frame rate to the input signal frame
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 32 |
| HDMI in Port (socket) for HDMI input. | 16 |
| Number of HDMI outputs Port (socket) for HDMI output. | 16 |
| RJ-45 input ports | 1 |
| 3.5 mm (1/8-inch) out |
 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Features | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Maximum operating distance The maximum distance from which you can operate the device. | 15 m |
| Supported video modes The video modes that can be displayed by the device. | 480p, 720p, 1080i, 1080p |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 225 MHz |
| LED indicators |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| 3D The device can be used with 3D technology. |
|
| Dolby technologies | DTS-HD, Dolby TrueHD |
| Rack capacity The spase that device fill in rack. | 2U |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| HDCP version | 1.4 |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 1 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 432.4 mm |
| Depth The distance from the front to the back of something. | 381.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 88 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.86 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit |
|
| Manual |
|
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability | |
| Sustainability certificates | RoHS |
| SKU | 700535 |
| MPN | VM51616H-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
