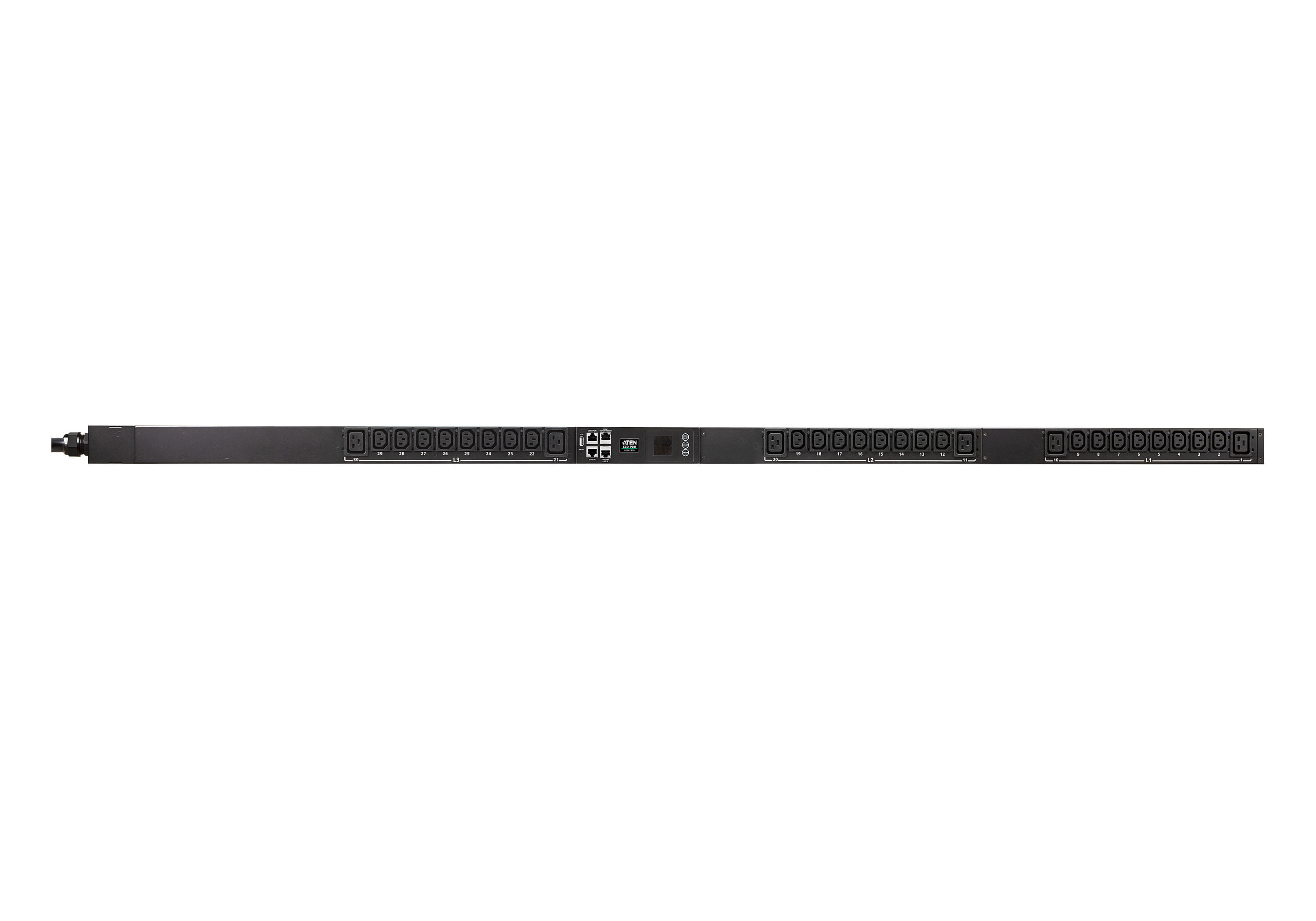

Aten 16A 30-Outlet 3-Phase Metered And Switched PDU
Item No:
767201
MPN:
PG96230G-AT
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN 20A/16A 30-Outlet 3-Phase Switched eco PDU, Metered, Switched, 0U, Three-phase, Black, LCD, 30 AC outlet(s)
When maintaining operating uptime in a data center or server room, sustainable energy efficiency can make all the difference. The implementation of effective power management often involves improvements at both the hardware and software level. As the trend for 3-phase power grows due to its efficiency to generate, transfer, and distribute electricity, ATEN is introducing its latest PG series of PDUs, available in IEC socket configuration, that are designed with 0U rack housing to accommodate the increasing demand for power to high-density IT equipment in server rooms and data centers. Each PG96230 PDU, utilizing an ARM-Cortex A8 processor, is equipped with 30 port outlets capable of running at higher voltages, powers up all connected equipment in less than 10 seconds once plugged in, and delivers the most accurate kWh energy usage data (+/-1%) for better power consumption habits, baselines, and initiative tracking. With energy saving in mind, the PG96230 is purposed to enable lower energy consumption for best practice in a network infrastructure, while promoting up to 70.65 kg (131.4 kw equivalent of power consumption) of reduced CO2 emission, reduced electricity expenses, and lower carbon taxes to pay each year.
Energy-Saving Relay
Thanks to the built-in energy-saving relays
Energy-Saving Relay
Thanks to the built-in energy-saving relays
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Metered, Switched |
| Type Characteristics of the device. | Three-phase |
| Rack capacity The spase that device fill in rack. | 0U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 30 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | IEC309 |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| USB ports quantity | 1 |
| Features | |
| Daisy chain |
 |
| Cable length How long the cable is. | 3 m |
| Management features | |
| Monitoring | Current, Humidity, Power, Temperature, Voltage |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv6, SMS |
| Management protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1&V2&V3, Telnet, Modbus |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 16 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Load capacity | 11084 VA |
| Number of phases | 3 |
| Circuit breaker |
 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 56 mm |
| Depth The distance from the front to the back of something. | 1790 mm |
| Height The measurement of the product from head to foot or from base to top. | 68 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.36 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 10.1 kg |
| Package width The distance from one side of the packaging to the other. | 229 mm |
| Package depth The distance from the front to the back of the packaging. | 1945 mm |
| Package height The distance from the top to the bottom of the packaging. | 179 mm |
| Package volume | 79853.5074 cm³ |
| Packaging content | |
| Manual |
|
| Rack mount kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE |
| Logistics data | |
| Master (outer) case net weight | 7.51 kg |
| Master (outer) case width | 229 mm |
| Master (outer) case length | 1945 mm |
| Master (outer) case height | 179 mm |
| Master (outer) case gross weight | 10.2 kg |
| Master (outer) case volume | 79853.5074 cm³ |
| SKU | 767201 |
| MPN | PG96230G-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
