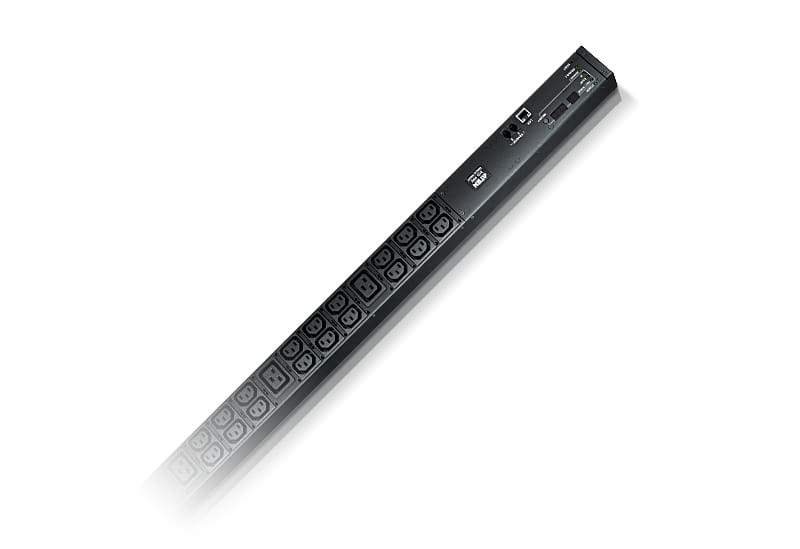

Aten 16A 21 Outlet Metered Thin Form eco Power Distribution Unit
Item No:
700235
MPN:
PE5221T-AT-G
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN 16A 21 Outlet Metered Thin Form Factor eco PDU, Metered, Monitored, 0U, Black, 21 AC outlet(s), C13 coupler, C19 coupler, C20 coupler
The ATEN NRGence PE5221T eco PDUs are thin form factor intelligent PDUs that contain 21 AC outlets available in IEC or NEMA socket configurations. The lightweight thin form factor eco PDUs have a smaller width and input region than ATEN s standard and low profile PDUs. The thin form factor series have a 56 mm width that fits tight into server racks providing more space for cooling and maintenance. The smaller design leaves 8% more space in the rack to increase air flow and cool IT equipment more effectively. It also means faster maintenance with easier access to equipment normally installed behind the PDU.
NRGence eco PDUs offer real time power measurement and threshold alerts " allowing you to monitor the PDU s power status, bank status and circuit breakers, either at the PDU or from any location via a TCP/IP connection.
With the combination of ATEN eco PDUs and eco DC Energy Management Web GUI, a data center is equipped with real time monitoring, measurement and analysis of energy consumption " with reports of power usage and PUE to meet the ISO 50001 requirements. These indexes will automatically generate customized reports about your data center s energy use and include energy saving suggestions. The suggestions allow you to optimize energy usage and save money without harming your IT equipment s reliability. eco DC Energy Management Web GUI provides easy multi PDU management with an intuitive user friendly interface that allows you to configure PDUs and monitor the power status of equipment connected to them.
NRGence eco PDUs offer real time power measurement and threshold alerts " allowing you to monitor the PDU s power status, bank status and circuit breakers, either at the PDU or from any location via a TCP/IP connection.
With the combination of ATEN eco PDUs and eco DC Energy Management Web GUI, a data center is equipped with real time monitoring, measurement and analysis of energy consumption " with reports of power usage and PUE to meet the ISO 50001 requirements. These indexes will automatically generate customized reports about your data center s energy use and include energy saving suggestions. The suggestions allow you to optimize energy usage and save money without harming your IT equipment s reliability. eco DC Energy Management Web GUI provides easy multi PDU management with an intuitive user friendly interface that allows you to configure PDUs and monitor the power status of equipment connected to them.
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Metered, Monitored |
| Rack capacity The spase that device fill in rack. | 0U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 21 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C20 coupler |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Features | |
| Cable length How long the cable is. | 3 m |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 128-bit SSL |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
 |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3 |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 16 A |
| Block 1 output current | 16 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 100 - 240 V |
| Load capacity | 3680 VA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 56 mm |
| Depth The distance from the front to the back of something. | 902 mm |
| Height The measurement of the product from head to foot or from base to top. | 48 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.34 kg |
| Packaging content | |
| Cables included | AC |
| Manual |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS |
| SKU | 700235 |
| MPN | PE5221T-AT-G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
