Aten 16 x 16 Modular Matrix Switch
Item No:
700520
MPN:
VM1600A-AT-U
$9,729.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

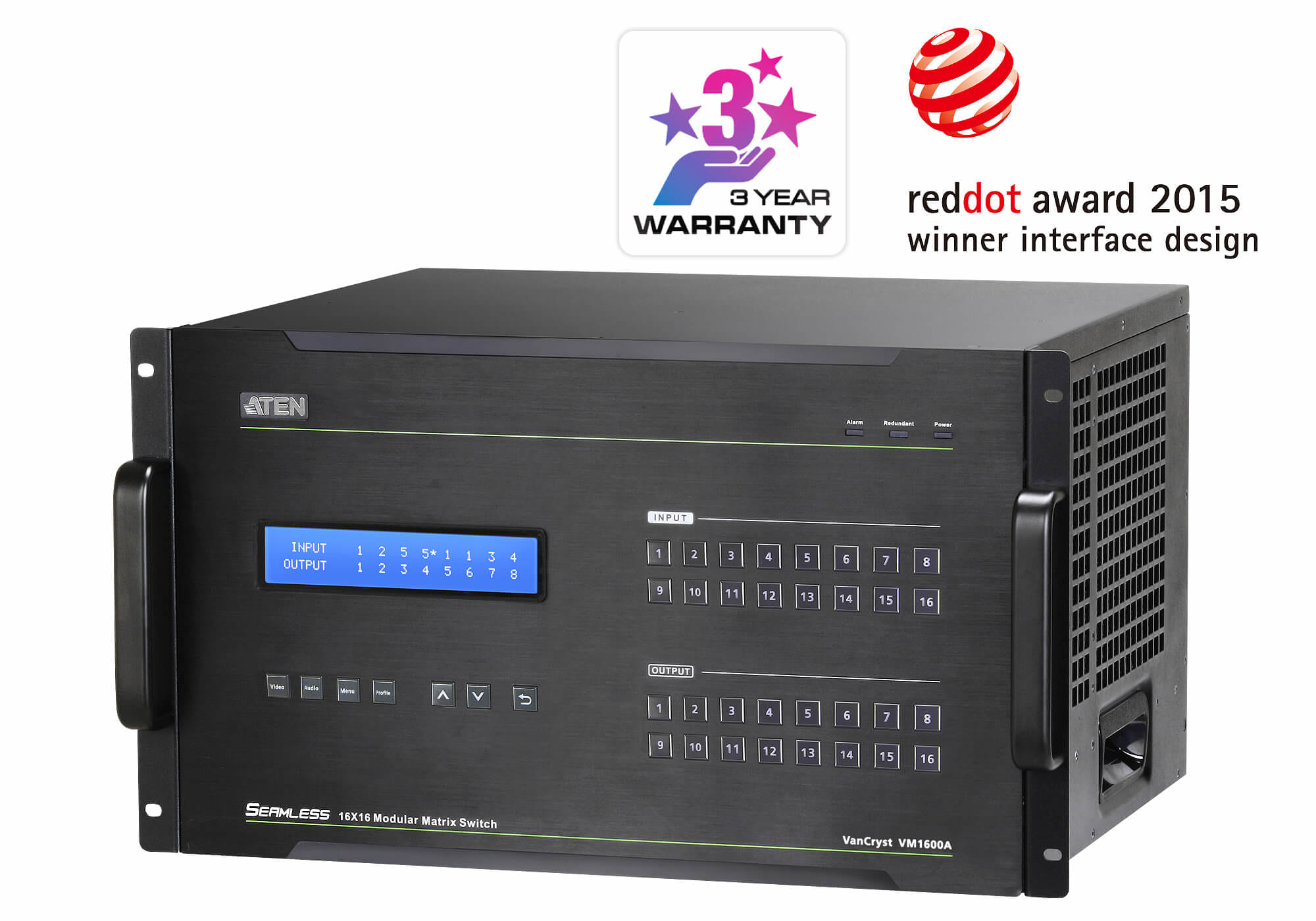

Aten 16x16 Modular Digital Matrix with Scaler, Seamless Switch, Hot-swappable Aten I/O boards, control via front-panel pushbuttons (PROJECT)
Aten 16x16 Modular Digital Matrix with Scaler, Seamless Switch, Hot-swappable Aten I/O boards, control via front-panel pushbuttons, RS232 and Ethernet (Telnet / Web GUI), supports Video Wall, EDID management and Calendar-based scheduling.
Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix Solutions
Hot-pluggable: Modular Fan Design Power Module Easy integration of I/O boards
Optional redundant power supply for continuous operation
Multiple Control Methods system management via front-panel pushbuttons, RS-232 control, and Ethernet connections (Web GUI)
Board Output 4 x Slot
Board Input 4 x Slot
Video Input
Interfaces Depends on which I/O board is inserted
Max. Data Rate 15.2 Gbps (3.8Gbps per Lane)
Audio
Input Depends on which Input board is inserted
Output Depends on which Output board is inserted
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations:
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
RS-485/RS-422 Connector: 1 x Captive Screw Connector, 5 Pole
Ethernet Connector: 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power 1 x 3-Prong AC Socket
Power
Maximum Input Power Rating 100-240 VAC; 50/60Hz; 3/6 A
Power Consumption AC110V:460W:166BTU
AC220V:460W:156BTU
Fan Airflow: 55.2 cfm
Operating Voltage: 10.2 - 12VDC
Operating Temp: -10 - 60 DegC
Environmental
Operating Temperature 0 - 40 DegC
Storage Temperature -20 - 60 DegC
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 15.11 kg ( 33.28 lb )
Dimensions (L x W x H) 48.20 x 46.66 x 26.59 cm
(18.98 x 18.37 x 10.47 in.)
Rack Height (U Spaces) 6U
Carton Lot 1 pc
Package Contents
1x VM1600A Modular Matrix Switch
1x Power Cord
1x Terminal Block connector
1x Fan Module (pluggable)
1x Power Module (pluggable)
1x User Instructions
Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix Solutions
Hot-pluggable: Modular Fan Design Power Module Easy integration of I/O boards
Optional redundant power supply for continuous operation
Multiple Control Methods system management via front-panel pushbuttons, RS-232 control, and Ethernet connections (Web GUI)
Board Output 4 x Slot
Board Input 4 x Slot
Video Input
Interfaces Depends on which I/O board is inserted
Max. Data Rate 15.2 Gbps (3.8Gbps per Lane)
Audio
Input Depends on which Input board is inserted
Output Depends on which Output board is inserted
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations:
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
RS-485/RS-422 Connector: 1 x Captive Screw Connector, 5 Pole
Ethernet Connector: 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power 1 x 3-Prong AC Socket
Power
Maximum Input Power Rating 100-240 VAC; 50/60Hz; 3/6 A
Power Consumption AC110V:460W:166BTU
AC220V:460W:156BTU
Fan Airflow: 55.2 cfm
Operating Voltage: 10.2 - 12VDC
Operating Temp: -10 - 60 DegC
Environmental
Operating Temperature 0 - 40 DegC
Storage Temperature -20 - 60 DegC
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 15.11 kg ( 33.28 lb )
Dimensions (L x W x H) 48.20 x 46.66 x 26.59 cm
(18.98 x 18.37 x 10.47 in.)
Rack Height (U Spaces) 6U
Carton Lot 1 pc
Package Contents
1x VM1600A Modular Matrix Switch
1x Power Cord
1x Terminal Block connector
1x Fan Module (pluggable)
1x Power Module (pluggable)
1x User Instructions
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 32 |
| RJ-45 input ports | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Features | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 15.2 Gbit/s |
| LED indicators |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| 3D The device can be used with 3D technology. |
|
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Rack capacity The spase that device fill in rack. | 6U |
| HDCP version | 2.2 |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 460 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 482 mm |
| Depth The distance from the front to the back of something. | 466.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 265.9 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 15.1 kg |
| Packaging content | |
| User guide |
|
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| SKU | 700520 |
| MPN | VM1600A-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
