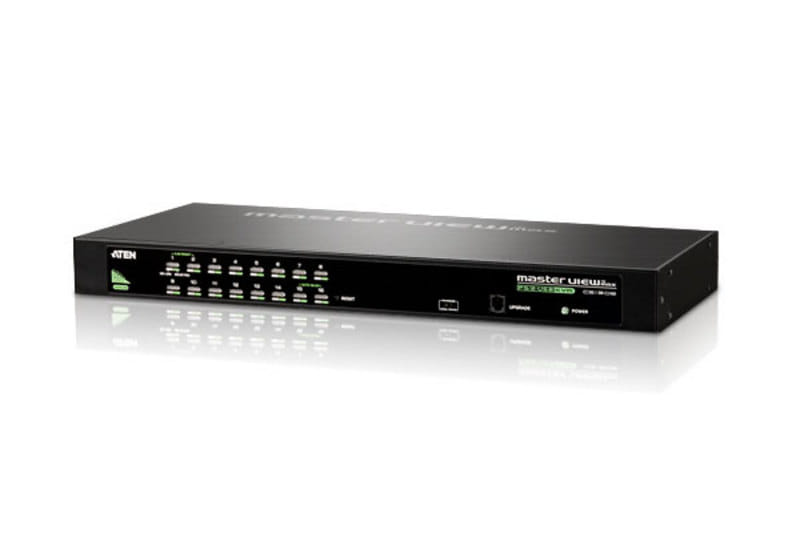

Aten CS1316, 2048 x 1536 pixels, 6.6 W, Black
Features
- One USB-PS/2 console controls 16 computers
- Cascade up to 2 levels* - control up to 256 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
*Cascade function only works with USB KVM cable set connections.
Package Contents
- 1x CS1316 KVM Switch with Rack Mount Kit
- 1x LIN5-27X6-U21G Console cable
- 1x Firmware Upgrade cable
- 1x Foot Pad set (4 pads)
- 1x 0AD6-1605-24EG Power Adapter
- 1x Mounting Kit
- 1x User Instructions
- One USB-PS/2 console controls 16 computers
- Cascade up to 2 levels* - control up to 256 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
*Cascade function only works with USB KVM cable set connections.
Package Contents
- 1x CS1316 KVM Switch with Rack Mount Kit
- 1x LIN5-27X6-U21G Console cable
- 1x Firmware Upgrade cable
- 1x Foot Pad set (4 pads)
- 1x 0AD6-1605-24EG Power Adapter
- 1x Mounting Kit
- 1x User Instructions
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 256 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Console ports | VGA (D-Sub) |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | QXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1536 pixels |
| Scan interval | 1,255 s |
| DDC2B support |
 |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Firmware upgradeable |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Cascadable |
|
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| On Screen Display (OSD) |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| DC input voltage | 5.3 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 6.5 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 437.2 mm |
| Depth The distance from the front to the back of something. | 161.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.5 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 116 mm |
| Package depth The distance from the front to the back of the packaging. | 540 mm |
| Package height The distance from the top to the bottom of the packaging. | 233 mm |
| Package weight Weight of the packaged product. | 2.87 kg |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide |
|
| Manual |
|
| AC adapter included |
|
| Logistics data | |
| Master (outer) case net weight | 7.5 kg |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 9.27 kg |
| Products per master (outer) case | 3 pc(s) |
| SKU | 441404 |
| MPN | CS1316-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
