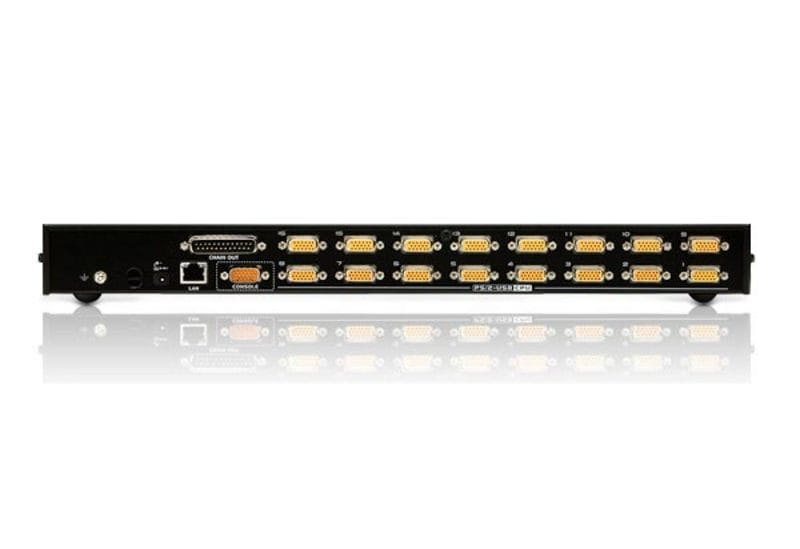

Aten 16 Port PS/2-USB 2.0 KVMP Switch over IP, 1 VGA USB KVM Cable, 1 VGA PS/2 KVM Cable included
Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1920 x 1200 @ 60Hz** and 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
Computer Connections
Direct 16
Maximum 256 (via daisy chain)
Port Selection OSD/GUI; Hotkey; Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 16 x SPHD-17 Female (Yellow)
Daisy Chain Ports 1 x DB-25 Male
Power 1 x DC Jack
LAN Ports 1 x RJ-45 Female
Firmware Upgrade 1 x RJ-11
USB Port 1 x USB Type A Female
Switches
Reset 1 x Semi-recessed Pushbutton
Port Selection 16 x Pushbutton
Firmware Upgrade Recovery 1 x Slide
LEDs
Online 16 (Orange)
Selected 16 (Green)
Station ID 1 x 2-digit, 7-segment (Orange)
Power 1 (Dark Green)
10/100 Mbps 1 (Orange/Green - at LAN port)
Emulation
Keyboard / Mouse PS/2, USB
Video
Local 2048 x 1536; DDC2B
Remote FHD : 1920 x 1200 @ 60Hz
Non-FHD : 1600 x 1200 @ 60Hz
Scan Interval 1 "255 sec.
Power Consumption DC5.3V:9.2W:58BTU
Environmental
Operating Temperature 0 "50 DegC
Storage Temperature -20 "60 DegC
Humidity 0 "80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 3.00 kg ( 6.61 lb )
Dimensions (L x W x H) 43.72 x 15.96 x 4.40 cm
(17.21 x 6.28 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
Computer Connections
Direct 16
Maximum 256 (via daisy chain)
Port Selection OSD/GUI; Hotkey; Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 16 x SPHD-17 Female (Yellow)
Daisy Chain Ports 1 x DB-25 Male
Power 1 x DC Jack
LAN Ports 1 x RJ-45 Female
Firmware Upgrade 1 x RJ-11
USB Port 1 x USB Type A Female
Switches
Reset 1 x Semi-recessed Pushbutton
Port Selection 16 x Pushbutton
Firmware Upgrade Recovery 1 x Slide
LEDs
Online 16 (Orange)
Selected 16 (Green)
Station ID 1 x 2-digit, 7-segment (Orange)
Power 1 (Dark Green)
10/100 Mbps 1 (Orange/Green - at LAN port)
Emulation
Keyboard / Mouse PS/2, USB
Video
Local 2048 x 1536; DDC2B
Remote FHD : 1920 x 1200 @ 60Hz
Non-FHD : 1600 x 1200 @ 60Hz
Scan Interval 1 "255 sec.
Power Consumption DC5.3V:9.2W:58BTU
Environmental
Operating Temperature 0 "50 DegC
Storage Temperature -20 "60 DegC
Humidity 0 "80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 3.00 kg ( 6.61 lb )
Dimensions (L x W x H) 43.72 x 15.96 x 4.40 cm
(17.21 x 6.28 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 16 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS,SSL/TLS |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1536 pixels |
| Scan interval | 255 s |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Number of users The number of people that use or can use this product. | 32 user(s) |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 11 W |
| USB powered The device can be powered via a USB connection. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 433 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3 kg |
| Packaging content | |
| Cables included | KVM |
| Manual |
|
| AC adapter included |
|
| Other features | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| I/O ports An interface on a device to which you can connect another device. | 1 x SPHD-18 M 16 x SPHD-17 F 1 x DB-25 M 1 x DC In 1 x RJ-45 F 1 x RJ-11 1 x USB1.1 A |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 160 x 433 x 44 mm |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 16 |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows, Mac OS X, Linux, Sun |
| Power requirements | 5.3VDC |
| Colour depth | 24 bit |
| Browser supported List of supported browsers for this product. | IE, Mozilla, Firefox, Safari, Opera, Netscape |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 442034 |
| MPN | CS1716I-AT-U |
