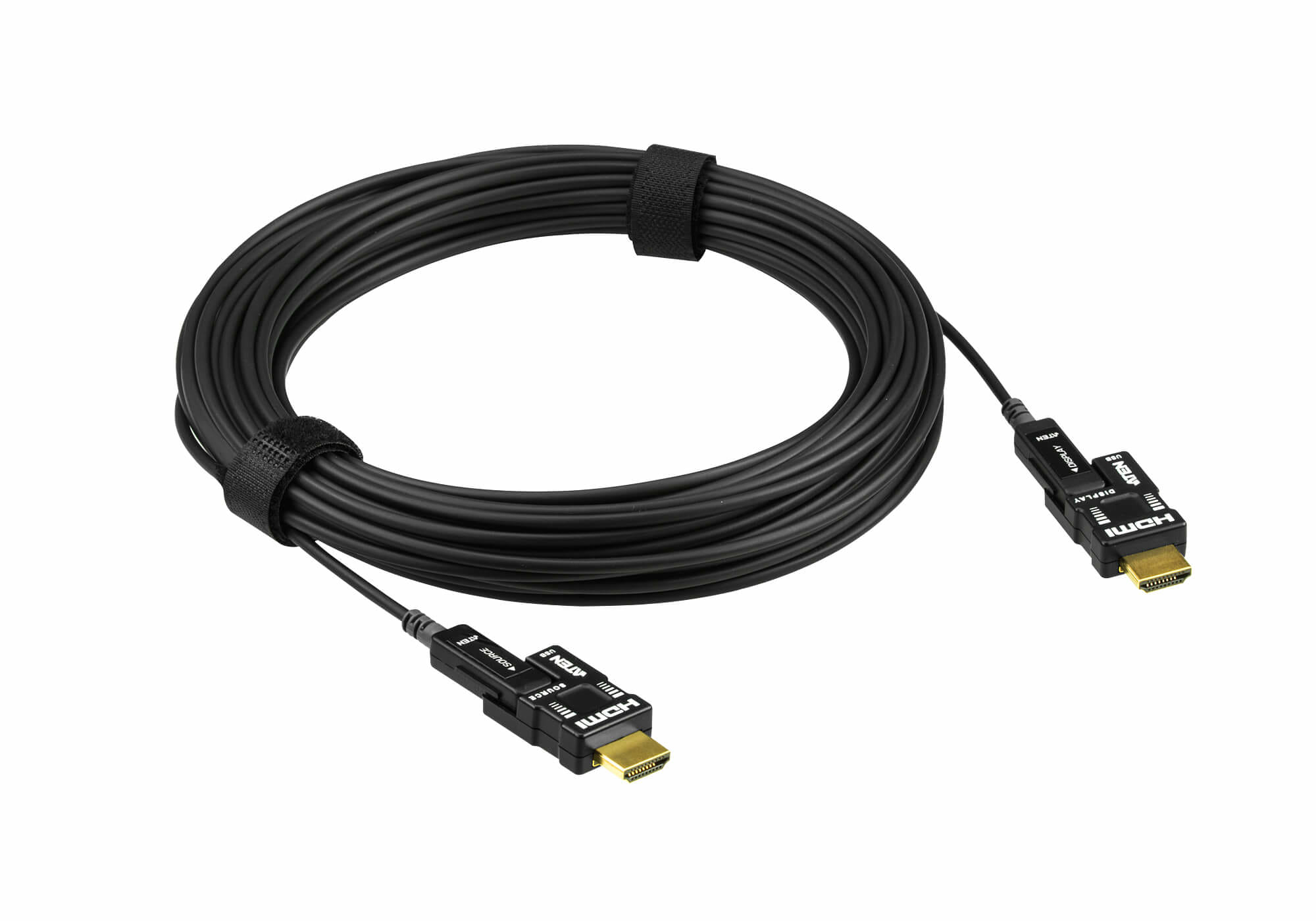

ATEN 15m 4K HDMI Active Optical Cable, 15 m, HDMI Type D (Micro), HDMI Type D (Micro), 3D, 18 Gbit/s, Black
ATEN VE7832 optical cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cable is available in 15 m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cable guarantees lossless audio signal transmissions.
1x VE7832 15M True 4K HDMI Active Optical Cable
1x Wiring Tool
2x Screws
1x Micro USB to USB Cable
1x Installation Notice
1x User Instructions
1x VE7832 15M True 4K HDMI Active Optical Cable
1x Wiring Tool
2x Screws
1x Micro USB to USB Cable
1x Installation Notice
1x User Instructions
| Features | |
| Cable length How long the cable is. | 15 m |
| Connector 1 This is the first connector in the device. | HDMI Type D (Micro) |
| Connector 2 This is the second connector in the device. | HDMI Type D (Micro) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDMI version | 2.0 |
| 3D The device can be used with 3D technology. |
 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160,4096 x 2160 |
| Dolby technologies | DTS-HD Master Audio,Dolby TrueHD |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.2 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 18 Gbit/s |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 600 MHz |
| AWG wire size | 28 |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Cable material The material e.g. copper, steel from which the cable is made. | Copper |
| Cable jacket material | Plenum (OFNP) |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Certification | CE / FCC / RoHS2 / UL CMP-OF |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 3.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 270 g |
| Package width The distance from one side of the packaging to the other. | 253 mm |
| Package depth The distance from the front to the back of the packaging. | 277 mm |
| Package height The distance from the top to the bottom of the packaging. | 39 mm |
| Package weight Weight of the packaged product. | 460 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case net weight | 2.7 kg |
| Master (outer) case width | 265 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 450 mm |
| Master (outer) case gross weight | 5.17 kg |
| Products per master (outer) case | 10 pc(s) |
| SKU | 646443 |
| MPN | VE7832-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
