Overview

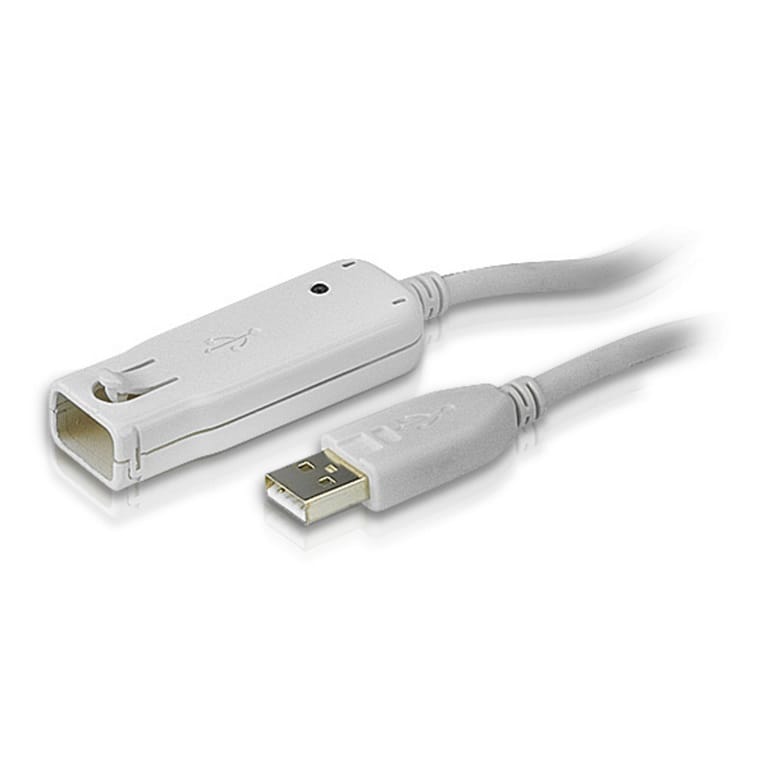

The UE2120 allows users to extend the distance between a computer and USB device up to 12 meters via the active extender cable. USB signals transmitted through these cables maintain optimal signal integrity and meet USB 2.0 standards.
The UE2120 features a unique lockable mechanical design that securely links the male and female ends of the USB cable, ensuring stable connection between cables. Up to 5 extender cables can be chained together, so that cable distance is increased by up to 60 meters.
Package Contents
- 1x 1-Port USB 2.0 Extender Cable
Features
- Extends the distance to your USB device(s) up to 12 meters (36’)
- USB specification version 2.0 / 1.1 compliant
- Plug and play - No additional driver required
- Up to 5 extender cables can be chained for a distance of up to 60 meters
- Lockable mechanical design for secure connection
- Bus powered. No power adapter required
- Multiplatform support – Windows, Mac
Diagram
Specifications
USB 2.0 Extender - 12M
| Connectors | |
| USB Port | 1 x USB Type-A Male |
| Downstream | 1 x USB Type-A Female |
| LEDs | 1 (Green) |
| USB Specification | 2.0 / 1.1 For High / Full / Low Speed |
| Cable Length | 12 m |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.56 kg ( 1.23 lb ) |
| Dimensions (L x W x H) | 6.40 x 2.20 x 1.30 cm (2.52 x 0.87 x 0.51 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Features | |
| Cable length How long the cable is. | 12 m |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| Connector 1 This is the first connector in the device. | USB A |
| Connector 2 This is the second connector in the device. | USB A |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Female |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Cable jacket material | Plastic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 480 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 560 g |
| Other features | |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Connection to PC Capability of connection product to PC. |
 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 1 |
| SKU | 318584 |
| MPN | UE2120 |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
