Overview

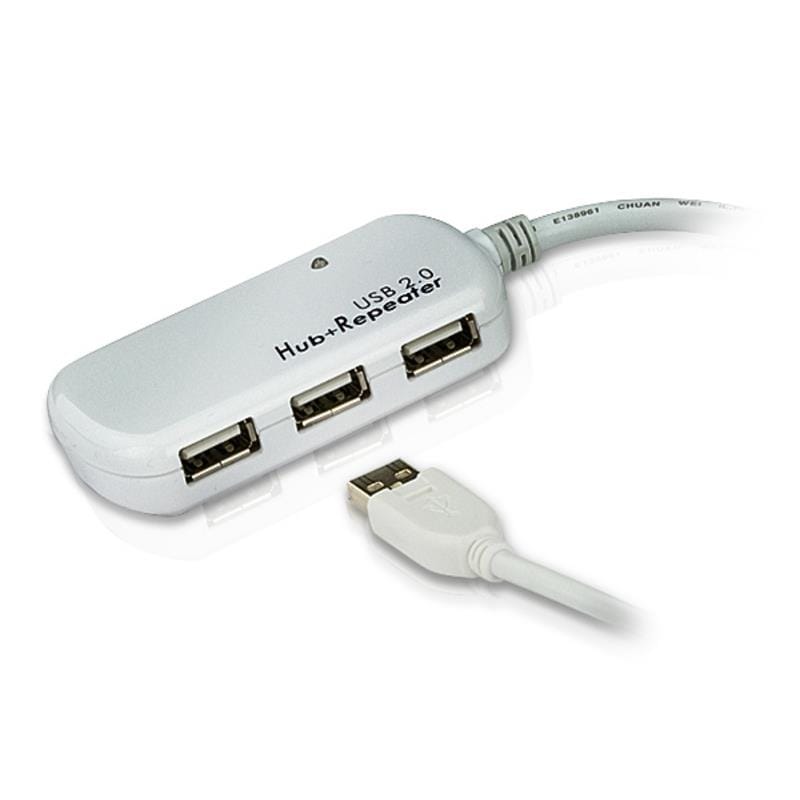

The UE2120H allows users to extend the distance between a computer and USB device(s) up to 12 meters via the active extender hub. USB signals transmitted through
these cables maintain optimal signal integrity and meet USB 2.0 standards. Up to 4 extender cables (UE2120) and 1 Extender Hub (UE2120H) can be chained together,
so that cable distance is increased by up to 60 meters.
Package Contents
- 1x 4-Port USB 2.0 Extender Hub
Features
- Extends the distance to your USB device(s) up to 12 meters (36’)
- 4 Downstream USB 2.0 ports
- USB specification version 2.0 / 1.1 compliant
- Plug and play - No additional driver required
- Up to 4 extender cables (UH2120) and 1 Extender Hub (UH2120H) can be chained for a distance of up to 60 meters
- Bus powered. No power adapter required
- Multiplatform support – Windows, Mac
Diagram
Specifications
USB 2.0 Extender with 4-Port Hub - 12M
| Connectors | |
| USB Port | 1 x USB Type-A Male |
| Downstream | 4 x USB Type-A Female |
| Power | 1 x DC 5V (Optional) |
| LEDs | 1 (Green) |
| USB Specification | 2.0 / 1.1 For High / Full / Low Speed |
| Cable Length | 12 m |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.63 kg ( 1.39 lb ) |
| Dimensions (L x W x H) | 8.20 x 4.10 x 1.70 cm (3.23 x 1.61 x 0.67 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Ports & interfaces | |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | USB 2.0 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 480 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Plastic |
| LED indicators |
 |
| Cable length How long the cable is. | 12 m |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Certification | RoHS |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| USB powered The device can be powered via a USB connection. |
|
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows Mac OS X |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 41 mm |
| Depth The distance from the front to the back of something. | 82 mm |
| Height The measurement of the product from head to foot or from base to top. | 17 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 630 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Other features | |
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| Connection to PC Capability of connection product to PC. |
|
| SKU | 318591 |
| MPN | UE2120H |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
