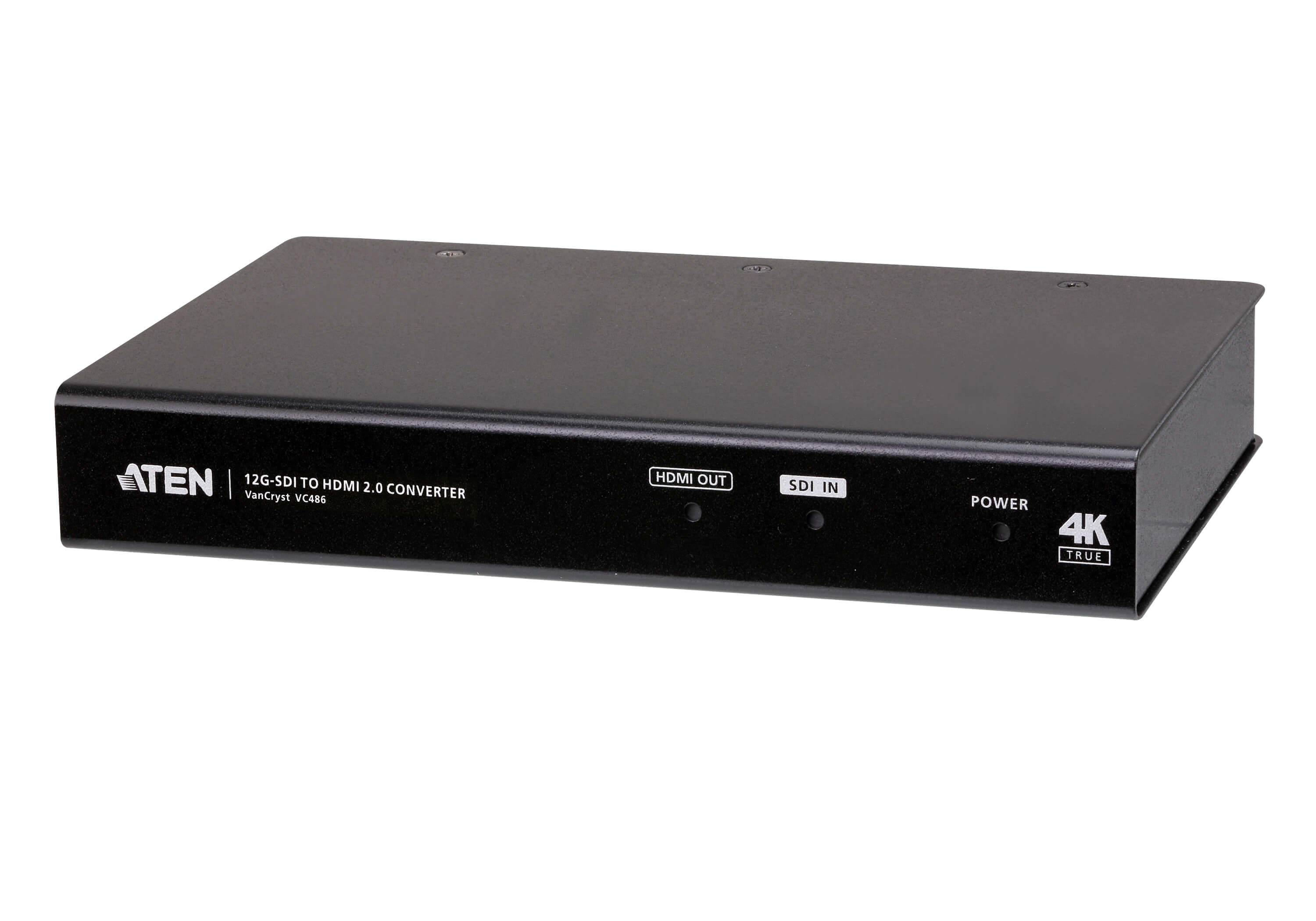

ATEN VC486-AT-U, Black, Metal, 3840 x 2160 pixels, 720p, 1080i, 1080p, 2160p, SMPTE 292M, SMPTE 425M, SMPTE ST-2081, SMPTE ST-2082, 75
The VC486 is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. The VC486 is a perfect choice for applications such as using HDMI televisions as SDI broadcast monitors, and connecting to video projectors.
| Features | |
| Reclocking |
 |
| Extended display identification data (EDID) |
|
| LED indicators |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 3840 x 2160 pixels |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080i, 1080p, 2160p |
| Serial Digital Interface (SDI) standard | SMPTE 292M, SMPTE 425M, SMPTE ST-2081, SMPTE ST-2082 |
| Audio | |
| Line-out balanced impedance | 75 Ω |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | SDI |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | HDMI |
| Video in | SDI |
| Video out | HDMI, SDI |
| Audio output The type of audio output that the device produces, and the connector(s). | HDMI, SDI |
| BNC video output |
|
| BNC output ports | 1 |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Operating current | 5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5.69 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 1296 mm |
| Depth The distance from the front to the back of something. | 182 mm |
| Height The measurement of the product from head to foot or from base to top. | 287 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 650 g |
| Packaging data | |
| Manual |
|
| Quantity The number of products there are. | 1 |
| SKU | 700340 |
| MPN | VC486-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
