Overview

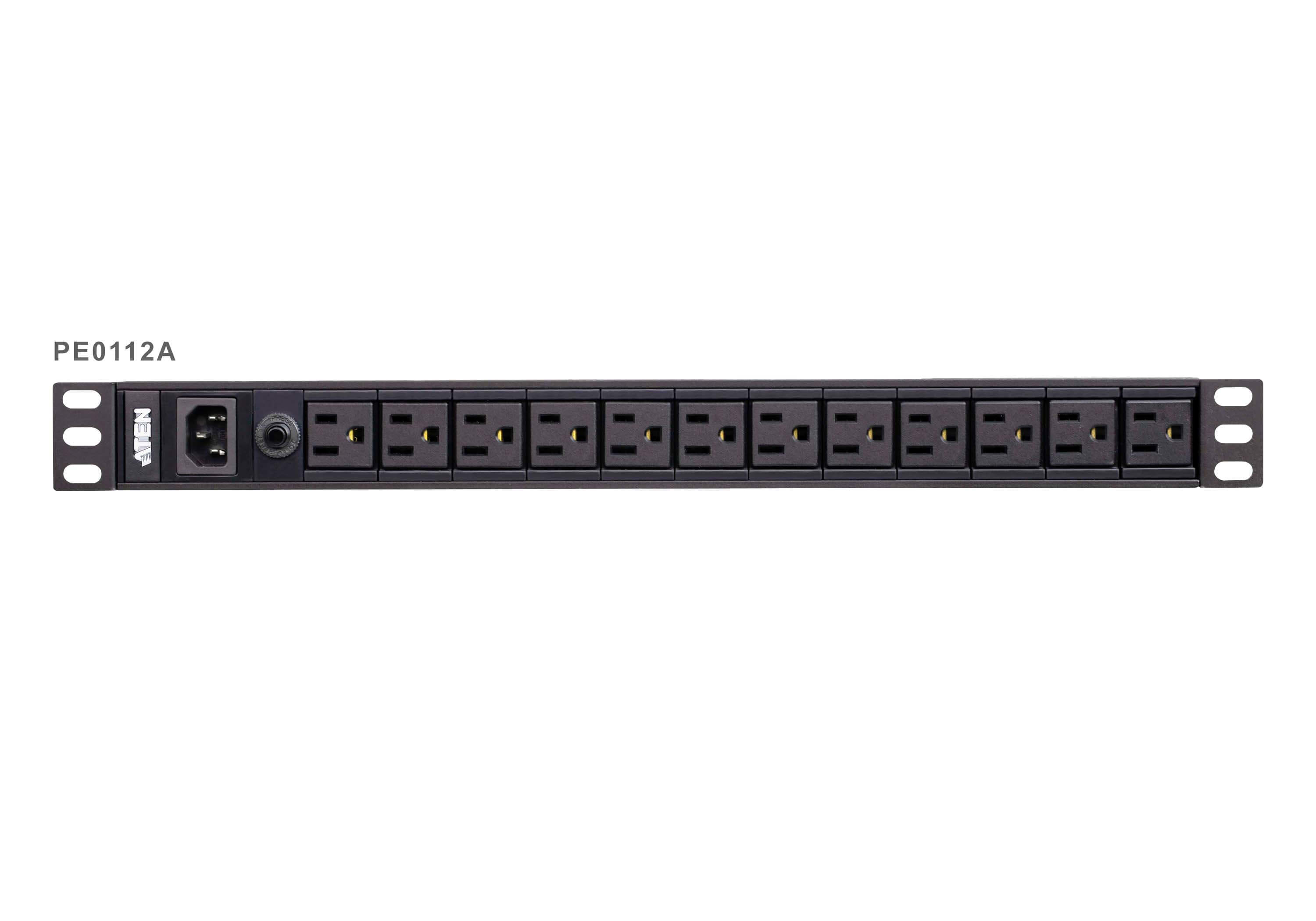

The PE0112 series Basic PDU contains 12 AC outlets and is available in IEC or NEMA socket configurations. The PE0112 series Basic PDU features a space-saving 1U design
that allows it to be mounted vertically on the outside of a rack, resulting in a more effi cient use of space in the server room, while providing 12 AC outlets.
Package Contents
- 1x Basic PDU
- 1x Power cord
- 1x User Instructions
Features
- Basic PDU
- Space saving -1U rack mount design
- IEC or NEMA outlet models
- Overcurrent Protection
- Aluminum material
- Typical Applications
- Servers
- Network Devices
- Telecom Equipment
Diagram
Specifications
| Function | PE0112A | PE0112G |
| Electrical | ||
| Nominal Input Voltage | 100-120 VAC | 100-240 VAC |
| Maximum Input Current | 15A(Max) (UL de-rated 12A Max) |
10A(Max) |
| Input Frequency | 50-60 Hz | 50-60 Hz |
| Input Connection | NEMA 5-15P | IEC-320 C14 |
| Input Power | 1800VA(MAX)； 1440VA(UL de-rated) |
2400 VA(Max) |
| Outlet Type | (12) NEMA 5-15R | (12) IEC 320 C13 |
| Nominal Output Voltage | 120 VAC | 240V |
| Maximum Output Current (Outlet) | 15A(Max) (UL de-rated 12A Max) |
10A(Max) |
| Maximum Output Current (Bank) | 15A(Max) (UL de-rated 12A Max) |
10A(Max) |
| Maximum Output Current (Total) | 15A(Max) (UL de-rated 12A Max) |
10A(Max) |
| OPD(Overcurrent Protection Device) | Yes | Yes |
| Physical Properties | ||
| Dimensions (L x W x H) | 48.80 x 4.40 x 4.50 cm (19.21 x 1.73 x 1.77 in.) |
48.80 x 4.40 x 4.50 cm (19.21 x 1.73 x 1.77 in.) |
| Weight | 0.62 kg ( 1.37 lb ) | 0.62 kg ( 1.37 lb ) |
| Power Cord Length | 10ft(14#) | 10ft(3×1.0mm2) |
| Environmental | ||
| Temperature (Operating / Storage) | 0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. |
0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. |
| Elevation (Operating / Storage) | 3000m | 3000m |
| Compliance | ||
| EMC Verification | FCC Class A | CE Class A |
| Safety Verification | TBD | CE,LVD |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Rack capacity The spase that device fill in rack. | 1U |
| Housing material What the casing of the product is made of. | Aluminum |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 12 AC outlet(s) |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Features | |
| Cable length How long the cable is. | 3 m |
| Certification | CE Class A CE,LVD |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 100 -240 V |
| AC input frequency | 50/60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 10 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 240 V |
| Load capacity | 2400 VA |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 480 mm |
| Depth The distance from the front to the back of something. | 450 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 620 g |
| Packaging content | |
| Cables included | AC |
| Manual |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating altitude | 0 - 3000 m |
| SKU | 319074 |
| MPN | PE0112G-AT-G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
