Aten 12-button Control Pad with Tabletop Kit
Item No:
767363
MPN:
VK0200TTK-AT
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VK0200TTK-AT, Keypad, RJ-45, Plastic, White, 50

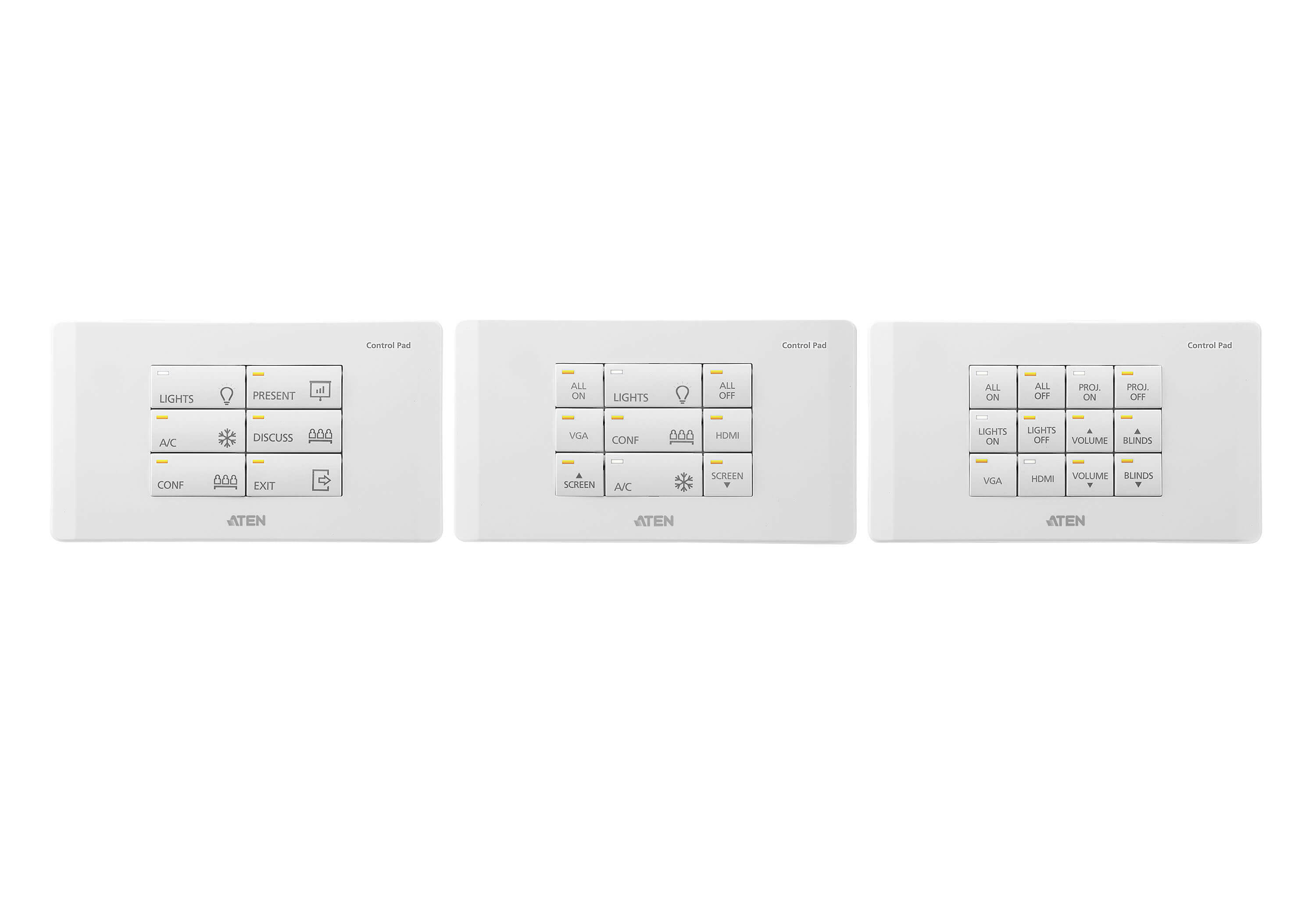

The VK0200 is a fully-customizable 12-button Control Pad that integrates a controller with a keypad as an all-in-one solution. Aimed for small/medium meeting room or classroom control, the VK0200 offers a ready-to-use solution that easily connects the devices, configures via the intuitive VK6000 Configurator Software, and flexibly customizes keypad button functions and layout to fulfill most applications.
The ATEN Control System is an Ethernet-based management system that connects all the hardware devices found in a room for centralized control effortlessly. The VK0200 Control Pad not only plays the role as the main controller that connects the hardware devices, but also acts as a control interface with customizable buttons and layout. Created with flexibility in mind, the two-gang Control Pad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego
The ATEN Control System is an Ethernet-based management system that connects all the hardware devices found in a room for centralized control effortlessly. The VK0200 Control Pad not only plays the role as the main controller that connects the hardware devices, but also acts as a control interface with customizable buttons and layout. Created with flexibility in mind, the two-gang Control Pad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego
| Features | |
| Product type The sub-category of the product. | Keypad |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | RJ-45 |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Maximum operating temperature | 50 °C |
| Buttons quantity The number of buttons that there are in/on the product. | 12 |
| Connector(s) | 2 x Bi-directional RS-232, 2 x Relay Channel, 1 x RJ-45 |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 147.6 mm |
| Depth The distance from the front to the back of something. | 83.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 48 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 190 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| SKU | 767363 |
| MPN | VK0200TTK-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
