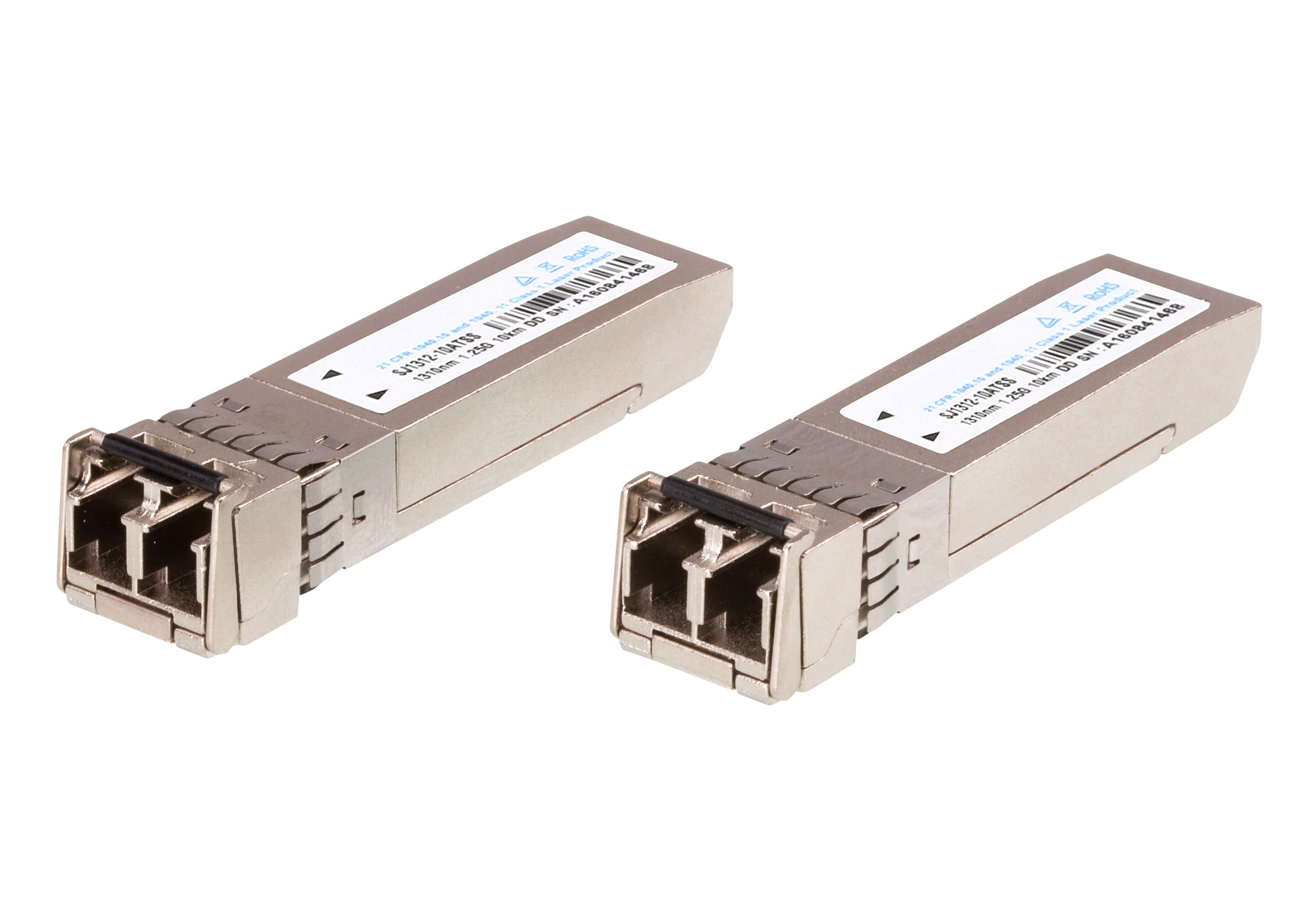

ATEN 10G Multi-Mode/300M Fiber SFP+ Module, Fiber optic, 10000 Mbit/s, SFP+, 300 m, 850 nm, IEEE 802.3ae
The 2A-141G 10G Multi-Mode/300M Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a multi-mode Gigabit Ethernet network cable to a network switch's SFP+ port. The 2A-141G provides 10GbE connectivity at distances up to 300 meters. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-141G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm. This makes the module a cost-effective and highperformance transceiver to substantially increase the span of a compatible network switch.
2 x 10G Multi-Mode/300M Fiber SFP+ Module
2 x 10G Multi-Mode/300M Fiber SFP+ Module
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported |
 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 300 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 850 nm |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ae |
| Digital Diagnostics Monitoring (DDM) |
|
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Stainless steel |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 14.6 mm |
| Depth The distance from the front to the back of something. | 55.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 13 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 44 g |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 2 pc(s) |
| Package width The distance from one side of the packaging to the other. | 42 mm |
| Package depth The distance from the front to the back of the packaging. | 124 mm |
| Package height The distance from the top to the bottom of the packaging. | 129 mm |
| Package weight Weight of the packaged product. | 85 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case net weight | 440 g |
| Master (outer) case width | 237 mm |
| Master (outer) case length | 288 mm |
| Master (outer) case height | 157 mm |
| Master (outer) case gross weight | 1.27 kg |
| Products per master (outer) case | 10 pc(s) |
| SKU | 699209 |
| MPN | 2A-141G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
