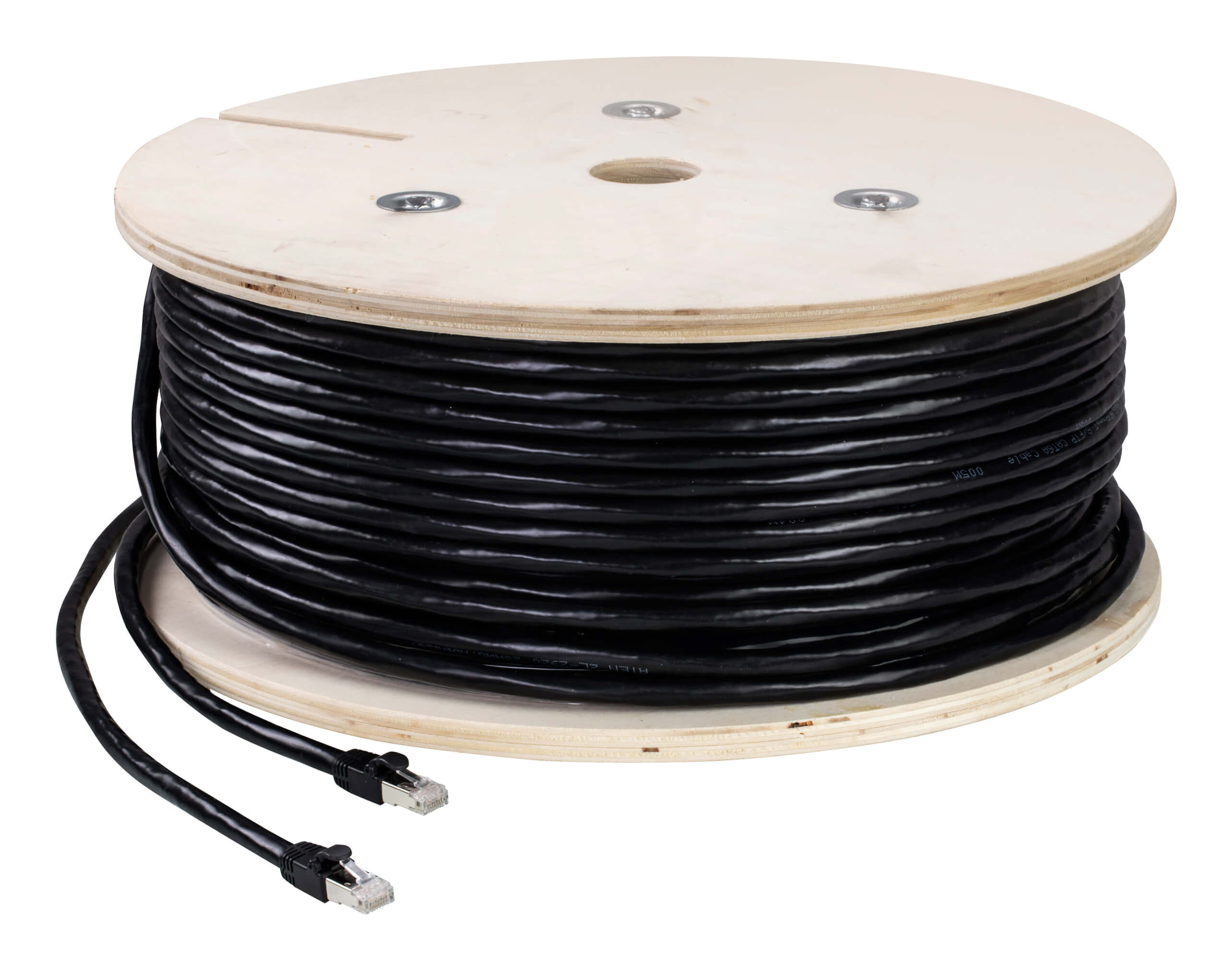

Aten 100m HDBaseT S/FTP CAT6A Cable
Item No:
767024
MPN:
2L-2920
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN 2L-2920, 100 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Black
Engineered to simplify AV / IT integration, the 2L-2920 S/FTP Cat 6A Cable features HDBaseT 3.0 technology to provide uncompressed transmission of up to True 4K video, audio, Ethernet, power and control signals across 100 m with the support for sweep frequency up to 500 MHz. In order to lower the interference from external sources and protect the signal integrity, this PVC jacketed cable consists of four individually Al-Mylar tape shielded pairs of 23 AWG wire, which are overall braided with tinned copper, delivering excellent protection against electromagnetic interference (EMI) brought by walkie-talkies or any other radio devices. Cross talk is eliminated as a result of the foamed PO insulation separating the individual stranded pair sets from each other. Compatible with ATEN HDBaseT extenders, splitters, and matrix switches, the 2L-2920 is perfect for scenarios where uncompressed True 4K AV and control signal transmission over a long distance is needed, such as conference rooms, lecture halls, banquet halls, museums and exhibition centers.
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable length How long the cable is. | 100 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6a |
| Cable shielding The protective layer for the cable, typically made of plastic. | S/FTP (S-STP) |
| Connector 1 This is the first connector in the device. | RJ-45 |
| Connector 2 This is the second connector in the device. | RJ-45 |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector shielding |
 |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| AWG wire size | 23 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Outer diameter | 9 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 11 kg |
| SKU | 767024 |
| MPN | 2L-2920 |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
