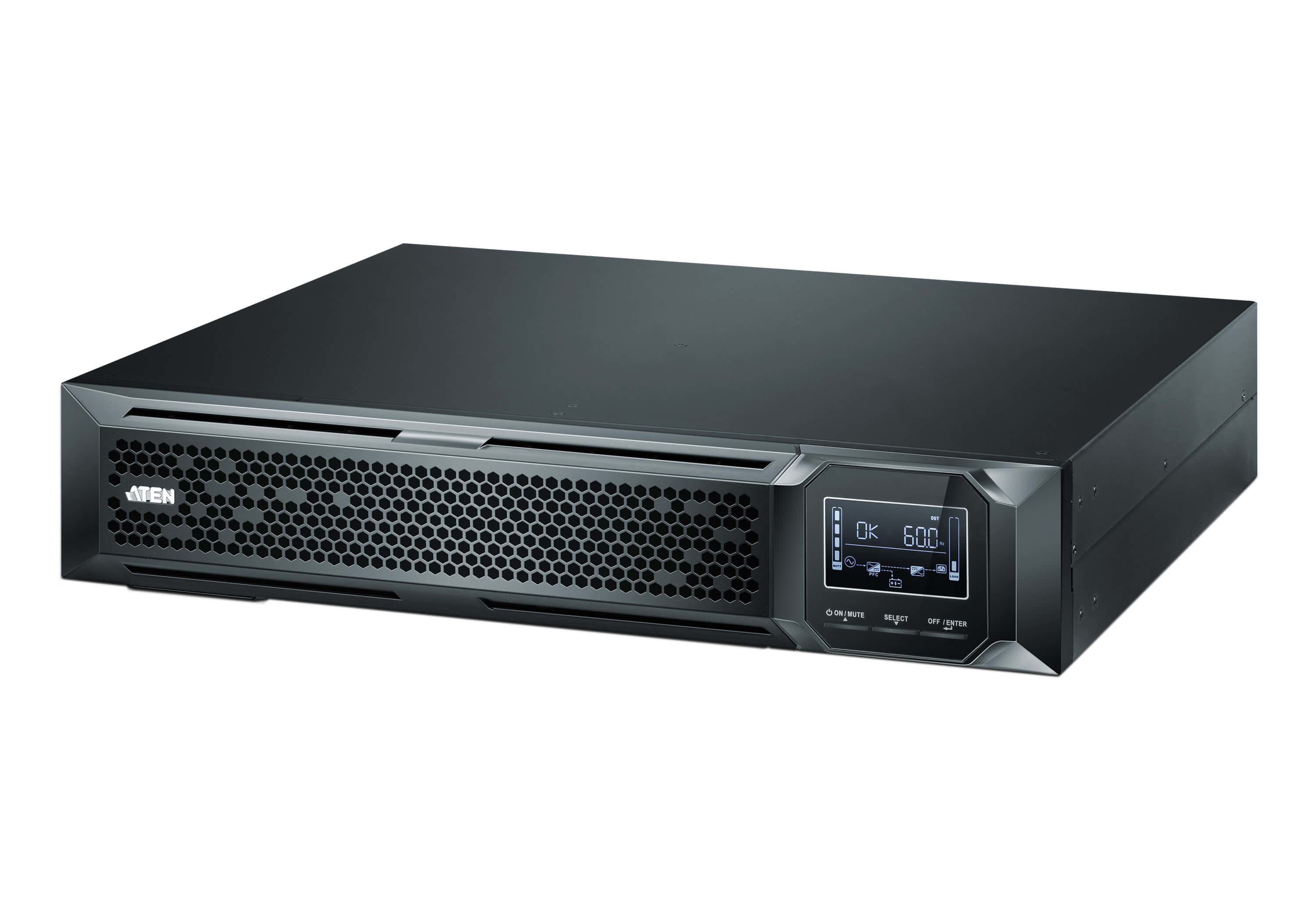

Aten 1000VA/1000W Professional Online UPS with USB/DB9 connection, 8 IEC C13 outlets, EPO and RJ port surge protection (Includes 2 YRS Advanced WTY)
Aten 1000VA/1000W Professional Online UPS with USB/DB9 connection, 8 IEC C13 outlets, optional SNMP support, EPO and RJ port surge protection
General
UPS Topology Double-Conversion
Energy Saving(max) >96%(ECO)
>89%(AC)
>88%(Batt)
HID Compliant USB Port Yes
Serial Port Yes
SNMP / HTTP Remote Monitoring Yes - Optional SNMP CARD
Input
Voltage 220/230/240 VAC
Input Voltage Range 160-300 VAC +- 5% @ 100% load
110-300 VAC +- 5% @ 50% load
Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC.
Input Frequency Range 40 Hz ~ 70 Hz
Rated Input current 4.8A
Input Power Factor 0.99 @ nominal voltage (100% load)
Cold Start Yes
Plug Type IEC 320 C14
Power cord 6ft (Schuko Plug / UK Plug)
Output
VA 1000 Watts 1000
On Battery Waveform Sine Wave
On Battery Frequency 50/60Hz +/- 3 Hz
Outlets - Total 8
Outlet Type (8) IEC 320 C13
Outlets - Battery & Surge Protected 8
Rated Power Factor 1
Crest Factor 3:1
Harmonic Distortion 2 % THDi (Linear Load)
4 % THDi (Non-linear Load)
Voltage Regulation +- 1%(Batt)
Transfer Time(AC to Batt.) 0ms
Transfer Time(Inverter to Bypass) 4ms(ECO)
Battery
Runtime at Half Load (min) 10.1
Runtime at Full Load (min) 2.95
Battery Type Sealed Lead-Acid
Battery Pack Voltage 24V
Battery Size 12V/9AH
Battery Quantity 2
Hot-Swappable Yes
Typical Recharge Time 3 hours recover to 95% capacity@2A
charging current.
Max charger current 12A
Extended Battery Module BP24V18AH
Replacement Battery Pack BC24V9AH
Replacement Battery Pack Quantity 1
Physical Properties
Rack Unit 2U
Type Rack/Tower
Dimensions (L x W x H) 8.80 x 43.80 x 41.00 cm
(3.46 x 17.24 x 16.14 in.)
Weight 12.70 kg ( 27.97 lb )
Environmental
Temperature (Operating / Storage) 0 "40 DegC (non-condensing) / -20 " 50 DegC
Humidity (Operating & Storage) 20 "90 % RH / 10% " 95%(No condensing)
Audible noise at 1M from surface of unit Less than 50dB
General
UPS Topology Double-Conversion
Energy Saving(max) >96%(ECO)
>89%(AC)
>88%(Batt)
HID Compliant USB Port Yes
Serial Port Yes
SNMP / HTTP Remote Monitoring Yes - Optional SNMP CARD
Input
Voltage 220/230/240 VAC
Input Voltage Range 160-300 VAC +- 5% @ 100% load
110-300 VAC +- 5% @ 50% load
Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC.
Input Frequency Range 40 Hz ~ 70 Hz
Rated Input current 4.8A
Input Power Factor 0.99 @ nominal voltage (100% load)
Cold Start Yes
Plug Type IEC 320 C14
Power cord 6ft (Schuko Plug / UK Plug)
Output
VA 1000 Watts 1000
On Battery Waveform Sine Wave
On Battery Frequency 50/60Hz +/- 3 Hz
Outlets - Total 8
Outlet Type (8) IEC 320 C13
Outlets - Battery & Surge Protected 8
Rated Power Factor 1
Crest Factor 3:1
Harmonic Distortion 2 % THDi (Linear Load)
4 % THDi (Non-linear Load)
Voltage Regulation +- 1%(Batt)
Transfer Time(AC to Batt.) 0ms
Transfer Time(Inverter to Bypass) 4ms(ECO)
Battery
Runtime at Half Load (min) 10.1
Runtime at Full Load (min) 2.95
Battery Type Sealed Lead-Acid
Battery Pack Voltage 24V
Battery Size 12V/9AH
Battery Quantity 2
Hot-Swappable Yes
Typical Recharge Time 3 hours recover to 95% capacity@2A
charging current.
Max charger current 12A
Extended Battery Module BP24V18AH
Replacement Battery Pack BC24V9AH
Replacement Battery Pack Quantity 1
Physical Properties
Rack Unit 2U
Type Rack/Tower
Dimensions (L x W x H) 8.80 x 43.80 x 41.00 cm
(3.46 x 17.24 x 16.14 in.)
Weight 12.70 kg ( 27.97 lb )
Environmental
Temperature (Operating / Storage) 0 "40 DegC (non-condensing) / -20 " 50 DegC
Humidity (Operating & Storage) 20 "90 % RH / 10% " 95%(No condensing)
Audible noise at 1M from surface of unit Less than 50dB
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 1 kVA |
| Output power The power that the device can produce. | 1000 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 110 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 300 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40 - 70 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 4 ms |
| Efficiency | 88% |
| Efficiency (ECO mode) | 96% |
| Crest factor | 3:1 |
| ECO mode |
 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 50 dB |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 8 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB port type | USB Type-B |
| Serial interface |
|
| Serial interface type | RS-232 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Number of battery cells | 2 |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 2.95 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 10.1 min |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 3 h |
| Charging current | 2 A |
| Cold start |
|
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 2U |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Built-in fan |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Certification | CE RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 88 mm |
| Depth The distance from the front to the back of something. | 438 mm |
| Height The measurement of the product from head to foot or from base to top. | 410 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 13.4 kg |
| Packaging data | |
| Cables included | Output power cable, Power load cable, RS-232, USB cable |
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 88 mm |
| Package depth The distance from the front to the back of the packaging. | 438 mm |
| Package height The distance from the top to the bottom of the packaging. | 410 mm |
| Package weight Weight of the packaged product. | 18.5 kg |
| Logistics data | |
| Master (outer) case net weight | 13.4 kg |
| Master (outer) case width | 240 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 600 mm |
| Master (outer) case gross weight | 18.5 kg |
| Products per master (outer) case | 1 pc(s) |
| SKU | 447197 |
| MPN | OL1000HV-AT-G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
