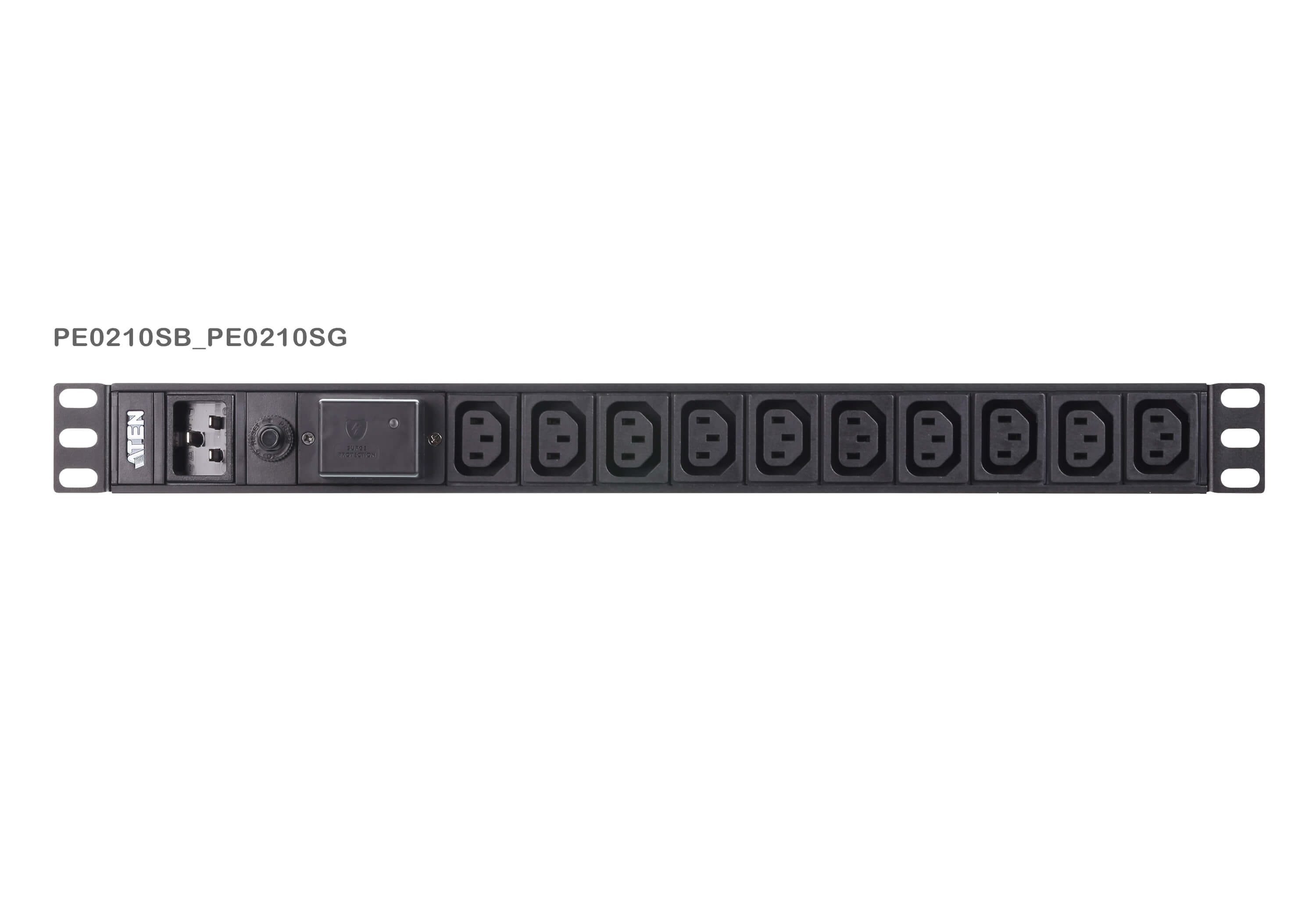

Aten 10 Port 1U Basic PDU with Surge Protection, supports 15A with 10 IEC C13 outputs
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Rack capacity The spase that device fill in rack. | 1U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Horizontal/Vertical |
| Housing material What the casing of the product is made of. | Aluminium |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 10 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | IEC 320 |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Features | |
| Cable length How long the cable is. | 3 m |
| Certification | CE,LVD |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 100 - 240 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 16 A |
| Load capacity | 3840 VA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 44.4 mm |
| Depth The distance from the front to the back of something. | 482 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.37 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 1.4 kg |
| Package width The distance from one side of the packaging to the other. | 112 mm |
| Package depth The distance from the front to the back of the packaging. | 697 mm |
| Package height The distance from the top to the bottom of the packaging. | 82 mm |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Manual |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Logistics data | |
| Master (outer) case net weight | 13.7 kg |
| Master (outer) case width | 595 mm |
| Master (outer) case length | 710 mm |
| Master (outer) case height | 188 mm |
| Master (outer) case gross weight | 15.3 kg |
| Products per master (outer) case | 10 pc(s) |
| SKU | 359639 |
| MPN | PE0210SG-AT-G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
