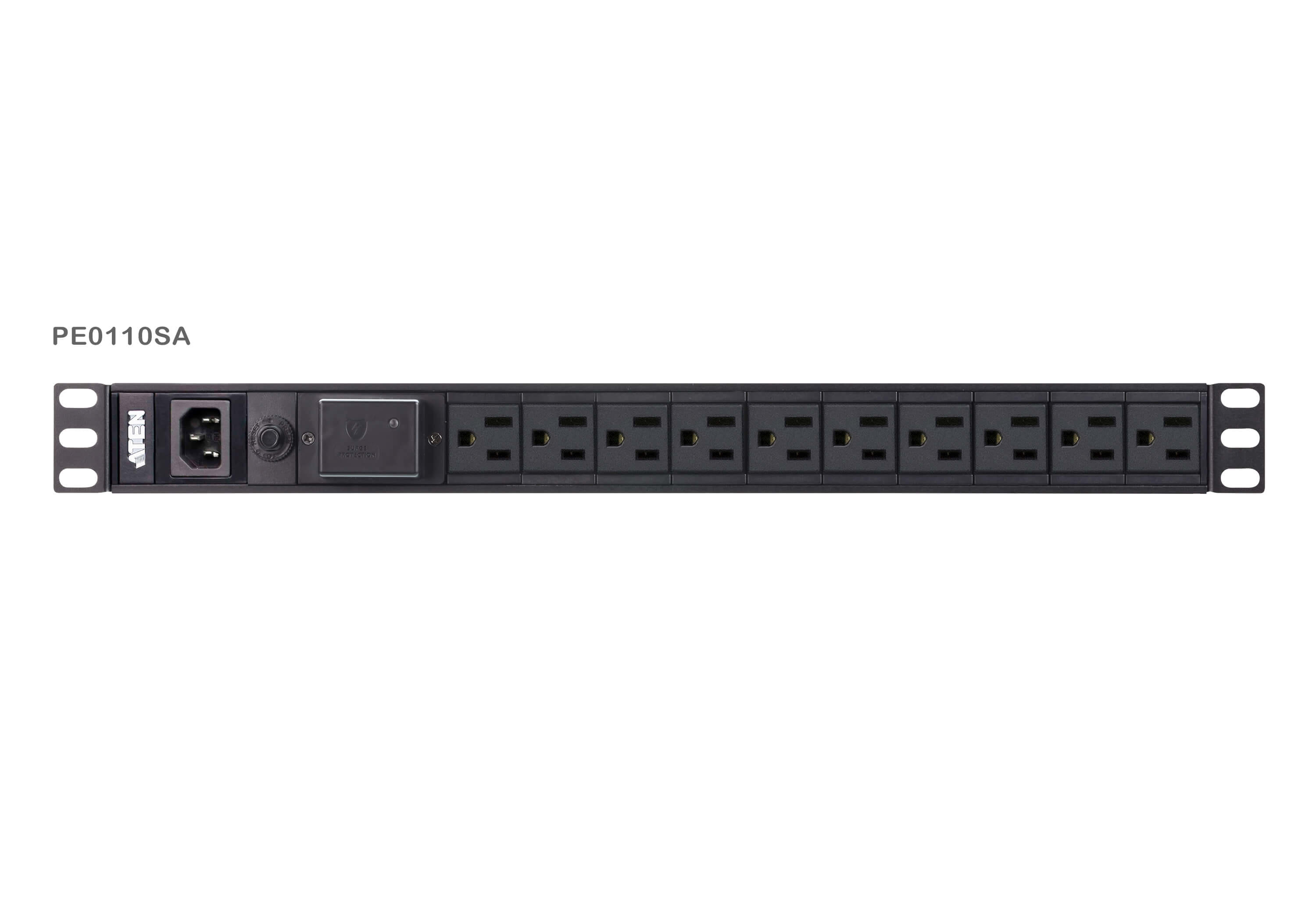

Aten 10 Port 1U Basic PDU with Surge Protection, supports 10A with 10 IEC C13 outputs
Overview

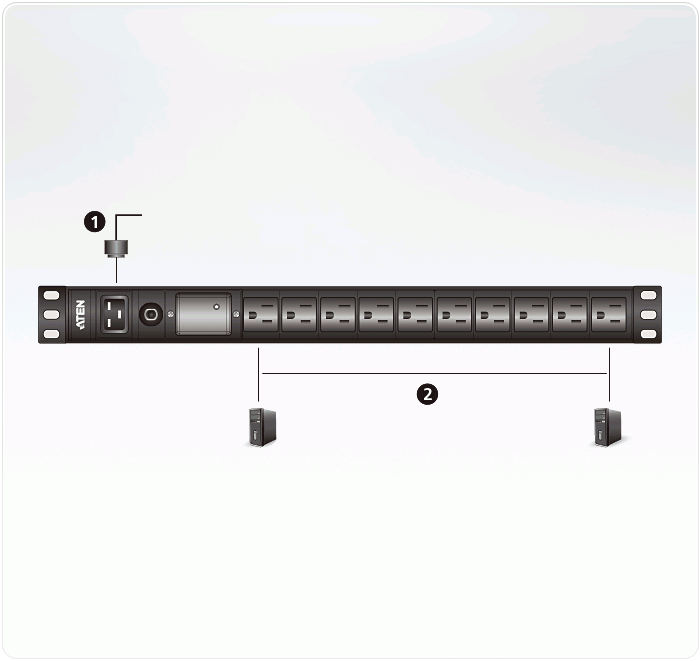

The Aten’s PE0110S, a 10-outlet, 1U rack mount power distribution unit (PDU), provides IEC and NEMA output. It distributes power to 10 receptacles from a single plug with unfiltered electrical pass-through. The PE0110S also provides surge protection, prevents damage to your equipment from power surges and spikes. The integrated surge protector includes a LED indicator, letting you know the status of your equipment.
Aluminum housing helps prolong the units life with rugged casing made of impact-resistant material for maximum durability. Basic 1U PDU can be easily mounted to wall, wooden furniture, or work bench.
Package Contents
- 1x Basic PDU
- 1x Power cord
- 1x User Instructions
Features
- Space saving -1U rack mount design
- IEC or NEMA outlet models
- Surge Protection
- Over-current Protection
- Aluminum material
- Works with data centers, server rooms and telecom equipment
Specification
| Function | PE0110SA | PE0110SG |
| Electrical | ||
| Nominal Input Voltage | 100-120 VAC | 100-240 VAC |
| Maximum Input Current | 15A (Max) (UL de-rated 12A Max) |
10A (Max) |
| Input Frequency | 50-60 Hz | 50-60 Hz |
| Input Connection | NEMA 5-15P | For G Plug：IEC-320 C14 For Ｚ Plug：Chinese 10A |
| Input Power | 1800VA(Max);1440VA(UL de-rated) | 2400VA(Max) |
| Outlet Type | (10) NEMA 5-15R | (10) IEC-320 C13 |
| Maximum Output Current (Outlet) | 15A (Max) (UL de-rated 12A Max) |
10A (Max) |
| Maximum Output Current (Bank) | 15A (Max) (UL de-rated 12A Max) |
10A (Max) |
| Maximum Output Current (Total) | 15A (Max) (UL de-rated 12A Max) |
10A (Max) |
| OPD(Overcurrent Protection Device) | YES | YES |
| Physical Properties | ||
| Dimensions (L x W x H) | 48.20 x 4.44 x 4.50 cm (18.98 x 1.75 x 1.77 in.) |
48.20 x 4.44 x 4.50 cm (18.98 x 1.75 x 1.77 in.) |
| Weight | 0.66 kg ( 1.45 lb ) | 0.66 kg ( 1.45 lb ) |
| Power Cord Length | 10ft(14#) | 10ft(3×1.5mm2) |
| Environmental | ||
| Temperature (Operating / Storage) | 0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. |
0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. |
| Elevation (Operating / Storage) | 3000m | 3000m |
| Compliance | ||
| EMC Verification | FCC Class A | CE Class A |
| Safety Verification | By Request | CE,LVD |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 10 AC outlet(s) |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 10 A |
| Load capacity | 2400 VA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 444 mm |
| Depth The distance from the front to the back of something. | 4820 mm |
| Height The measurement of the product from head to foot or from base to top. | 450 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 660 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 359632 |
| MPN | PE0110SG-AT-G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
