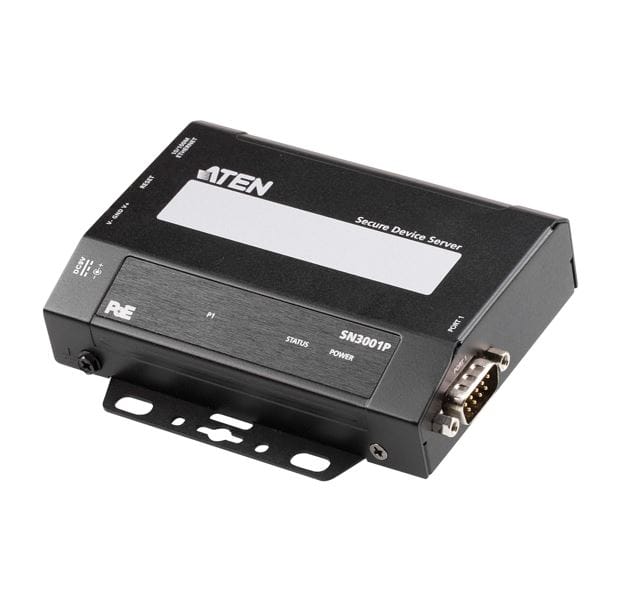

Aten 1-Port RS-232 Secure Device Server
Item No:
767294
MPN:
SN3001P-AX
$9,999.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 10-15 business days
Store Availability
- 11-16 business days at Bankstown Store
- 11-16 business days at Castle Hill Store
- 10-15 business days at Northmead Store
Shipping Estimate
Aten SN3001P 1-Port RS-232 Secure Device Server with PoE, Secured operation modes, Local & remote authentication and login, Third-party authenticati
| Technical details | |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Serial interface type | RS-232 |
| Isolation | 1.5 kV |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af |
| Baud rate | 921.6 Kbit/s |
| RS-232 signals | CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD |
| Data bits | 5, 6, 7, 8 |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Parity bit | Even, Mark, No, Space |
| Stop bits | 1, 1.5, 2 |
| Compliance certificates | RoHS |
| Certification | EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV (Power Adapter), 1kV (Terminal Block); Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 10 MHz: 3 V/m; 10 kHz to 30 MHz: 3 to 1 V/m; 30 kHz to 80 MHz: 1 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Terminal block port |
 |
| Cabling technology Type of cable technology performance. | 10/100Base-T(X) |
| Power | |
| Power source type What the power source is. | DC, PoE |
| Power consumption (max) The maximum amount of power used by the device. | 1.22 W |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 0.975 W |
| Output voltage | 9 - 48 V |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS, 2048-bit RSA, TLS |
| Indication | |
| LED indicators | LAN, Power, Status |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 210 g |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 117 x 98 x 26 mm |
| Package width The distance from one side of the packaging to the other. | 59 mm |
| Package length | 23.9 cm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Package weight Weight of the packaged product. | 440 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Reset button |
|
| Safety List of regulatory safety standards for all countries in which this product has been certified. | UL 60950-1, UL 62368-1 |
| Packaging content | |
| DIN rail kit included |
|
| Terminal block included |
|
| Number of foot pads | 4 pc(s) |
| User guide |
|
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 4.97 kg |
| Package volume | 2265.35 cm³ |
| Master (outer) case volume | 27467.34 cm³ |
| Master (outer) case length | 490 mm |
| Master (outer) case width | 315 mm |
| Master (outer) case height | 178 mm |
| Master (outer) case net weight | 3 kg |
| SKU | 767294 |
| MPN | SN3001P-AX |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
