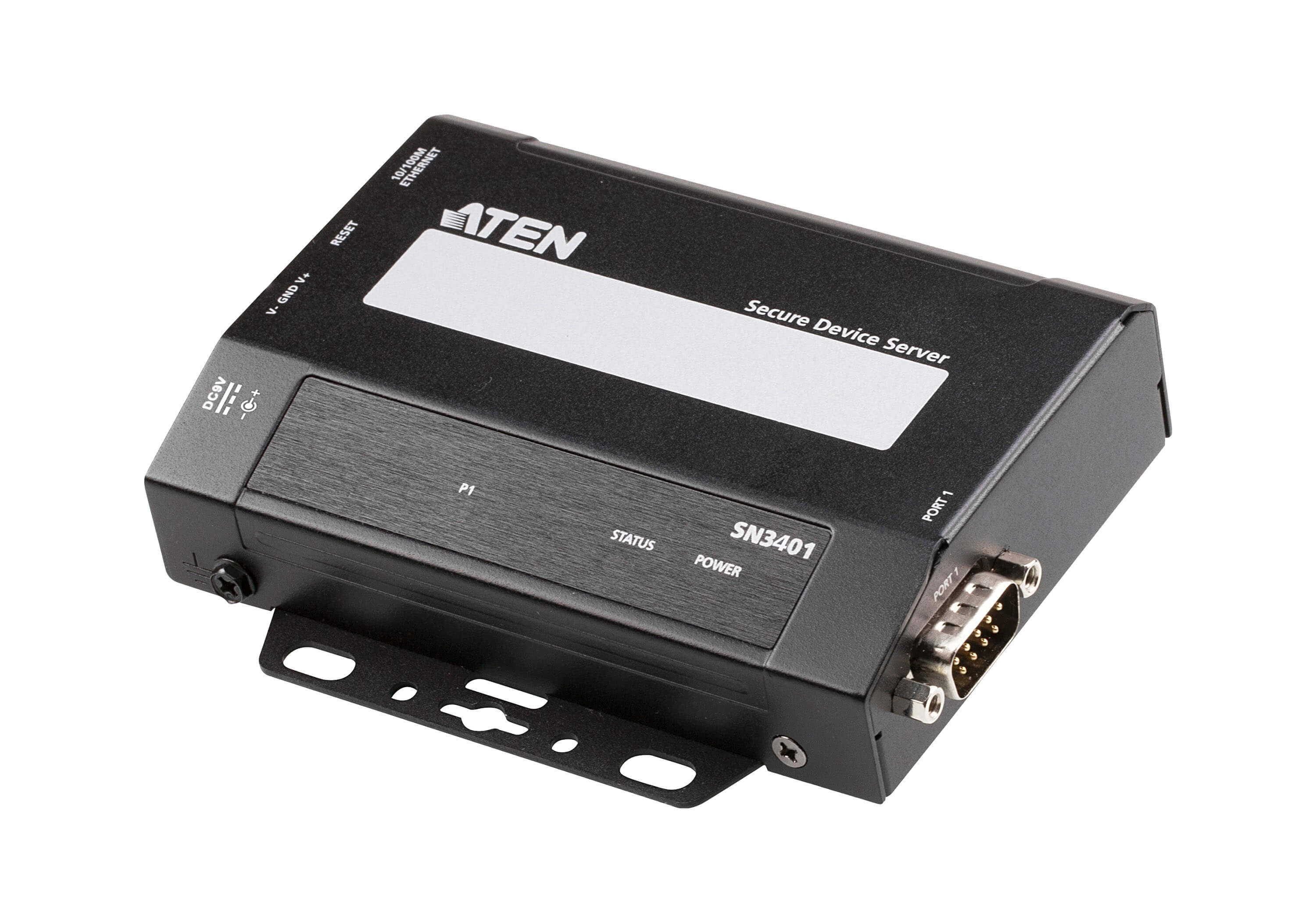

Aten 1-Port RS-232/422/485 Secure Device
Item No:
767303
MPN:
SN3401-AX-U
$9,999.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 10-15 business days
Store Availability
- 11-16 business days at Bankstown Store
- 11-16 business days at Castle Hill Store
- 10-15 business days at Northmead Store
Shipping Estimate
ATEN SN3401-AX-U, DC, 1.3 W, 1.18 W, 100 - 240 V, 50/60 Hz, 9 - 48 V
An easy-to-use, secure, and reliable solution makes it easier to connect a wide range of serial devices to an IP-based Ethernet LAN in an instant. The ATEN SN3401 Secure Device Server provides simple, fast serial-to-Ethernet connectivity, allowing users to remotely access serial RS-232/422/485 devices from a PC located anywhere. With various reliable features, the SN3401 is ideal for commercial and industrial process control applications.
Surge and Isolation Protection Ensure System Stability
Surge protection is a vital aspect of any facility
Surge and Isolation Protection Ensure System Stability
Surge protection is a vital aspect of any facility
| Technical details | |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Serial interface type | RS-232/422/485 |
| Isolation | 1.5 kV |
| Surge protection voltage | 2 kV |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Electrostatic Discharge (ESD) protection | 8 kV |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 100 Mbit/s |
| Flow control support |
 |
| Baud rate | 921.6 Kbit/s |
| RS-232 signals | CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD |
| RS-422 signals | GND, RxD+, RxD-, TxD+, TxD- |
| RS-485 signals | Data+, Data-, GND, RxD+, RxD-, TxD+, TxD- |
| Data bits | 5, 6, 7 |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Parity bit | Even, Mark, No, Odd, Space |
| Stop bits | 1, 1.5, 2 |
| Ports & interfaces | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Terminal block port |
|
| Power | |
| Power source type What the power source is. | DC |
| Power consumption (max) The maximum amount of power used by the device. | 1.3 W |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.18 W |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output voltage | 9 - 48 V |
| Indication | |
| LED indicators | Power, Status |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 117 mm |
| Depth The distance from the front to the back of something. | 98 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 200 g |
| Package width The distance from one side of the packaging to the other. | 59 mm |
| Package depth The distance from the front to the back of the packaging. | 239 mm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Package weight Weight of the packaged product. | 470 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Reset button |
|
| DIN rail mounting |
|
| Safety List of regulatory safety standards for all countries in which this product has been certified. | UL 60950-1, UL 62368-1 |
| Packaging content | |
| DIN rail kit included |
|
| Terminal block included |
|
| Number of foot pads | 4 pc(s) |
| User guide |
|
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | RoHS, UL ECOLOGO |
| SKU | 767303 |
| MPN | SN3401-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
