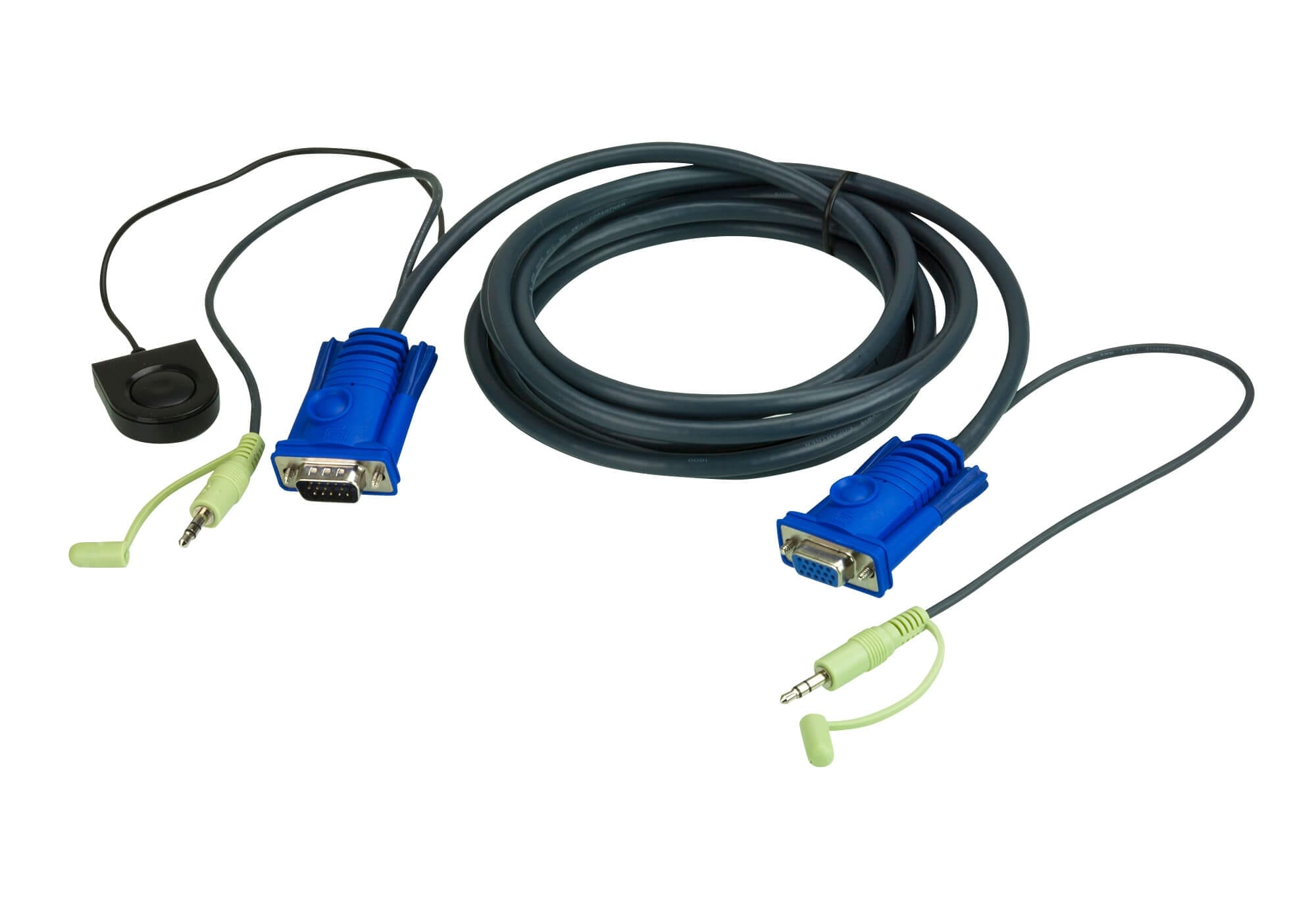

The VGA Cable is designed to provide a high quality VGA connection, ideally suited for high resolution applications up to 1920 x 1200. Featuring durable design, the cable
eliminates the picture ghosting and fuzzy images, guaranteeing users a reliable signal transmission. For application utility, the VGA cable is compatible with ATEN KVM
switches to change KVM port focus.
Package Contents
- 1x 2L-5202B 1.8M Port Switching VGA Cable
Features
- Optimized for analog signal transmission at resolution up to 1920 x 1200
- VGA cable with 15-pin female input and male output
- Audio supported
- Outer shielded with Al Mylar tape for reliable signal transmission
- RoHS compliant
- Tested for compatibility with ATEN VGA KVM products
Specifications
Port Switching VGA Cable
| Cable Length | 1.8m |
| Switches | |
| Port Selection | Port Switching Button |
| Shield | |
| Material | AL-Mylar |
| Jacketed | |
| Material | PVC (PolyVinyl Chloride) |
| Conductor | |
| Conductor Diameter | 30 AWG |
| Material | Tinned copper |
| TO PC/Source Interface | |
| Mini Stereo Jack | Audio Plug (Speaker) |
| VGA | HDB-15 Male |
| TO Switch Interface | |
| Mini Stereo Jack | Audio Plug (Speaker) |
| KVM Port | HDB-15 Female |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Features | |
| Cable length How long the cable is. | 1.8 m |
| Connector 1 This is the first connector in the device. | VGA (D-Sub) + 3.5mm |
| Connector 2 This is the second connector in the device. | VGA (D-Sub) + 3.5mm |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Female |
| SKU | 318654 |
| MPN | 2L-5202B |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
