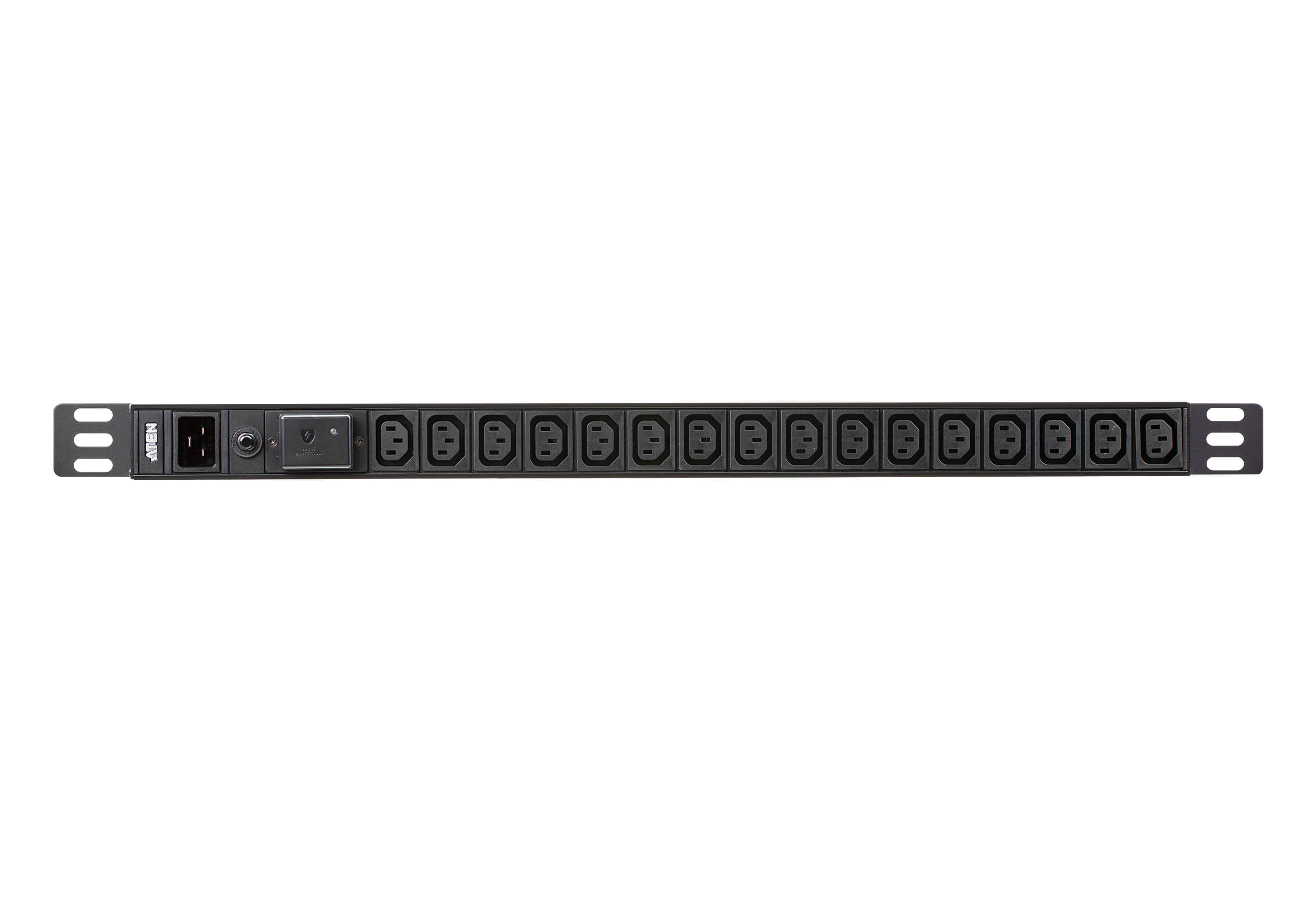

ATEN 0U Basic PDU with Surge Protection, Basic, 0U, Aluminium, Black, 16 AC outlet(s), C13 coupler
ATEN's Basic PDU family is extended with 0U members containing 16 outlets and available in IEC or NEMA socket configurations. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency. Thanks to the built-in surge protection module, the IT devices connected to the PDU are well-protected from sudden surges in electricity; plus, the equipment downtime is reduced as a result of the overcurrent protection design. The Basic PDUs are tailored made for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets.
1 x power distribution unit
1 x power cord
1 x L-shaped mounting kit
1 x user instructions
1 x power distribution unit
1 x power cord
1 x L-shaped mounting kit
1 x user instructions
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Rack capacity The spase that device fill in rack. | 0U |
| Housing material What the casing of the product is made of. | Aluminium |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 16 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C20 coupler |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Features | |
| Surge protection |
 |
| Cable length How long the cable is. | 3 m |
| Certification | CE A CE,LVD |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 100-240 V |
| AC input frequency | 50-60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 16 A |
| Load capacity | 3840 VA |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 715.6 mm |
| Depth The distance from the front to the back of something. | 44.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 60 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.66 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 2.08 kg |
| Package width The distance from one side of the packaging to the other. | 187 mm |
| Package depth The distance from the front to the back of the packaging. | 730 mm |
| Package height The distance from the top to the bottom of the packaging. | 166 mm |
| Packaging content | |
| Cables included | AC |
| Manual |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Logistics data | |
| Master (outer) case net weight | 1.66 kg |
| Master (outer) case width | 18.7 cm |
| Master (outer) case length | 73 cm |
| Master (outer) case height | 16.6 cm |
| Master (outer) case gross weight | 2.08 kg |
| Products per master (outer) case | 1 pc(s) |
| SKU | 540719 |
| MPN | PE0216SG-AT-G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| PSU Form Factor | N/A |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
