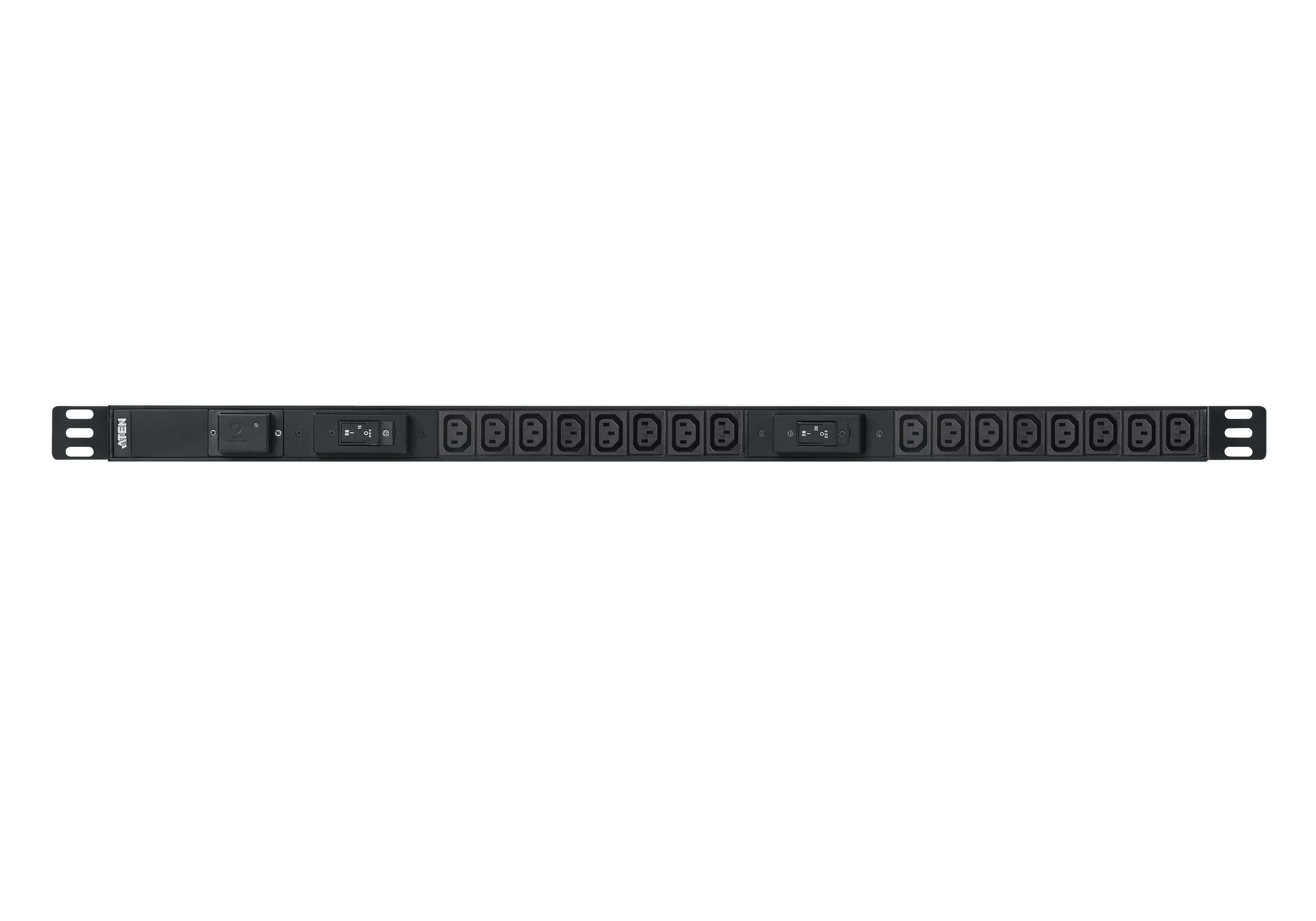

ATEN PE0316SG-AT, Basic, 0U, Aluminium, Black, 16 AC outlet(s), C13 coupler
ATEN PE0316SG-AT. PDU types: Basic, Rack capacity: 0U, Housing material: Aluminium. AC outlets quantity: 16 AC outlet(s), AC outlet types: C13 coupler. Cable length: 3 m. Nominal input voltage: 100 - 240 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Width: 966.8 mm, Depth: 44.4 mm, Height: 60 mm
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Rack capacity The spase that device fill in rack. | 0U |
| Housing material What the casing of the product is made of. | Aluminium |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 16 AC outlet(s) |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Features | |
| Cable length How long the cable is. | 3 m |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 32 A |
| Load capacity | 7680 VA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 966.8 mm |
| Depth The distance from the front to the back of something. | 44.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 60 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.1 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating altitude | 0 - 3000 m |
| SKU | 700196 |
| MPN | PE0316SG-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
