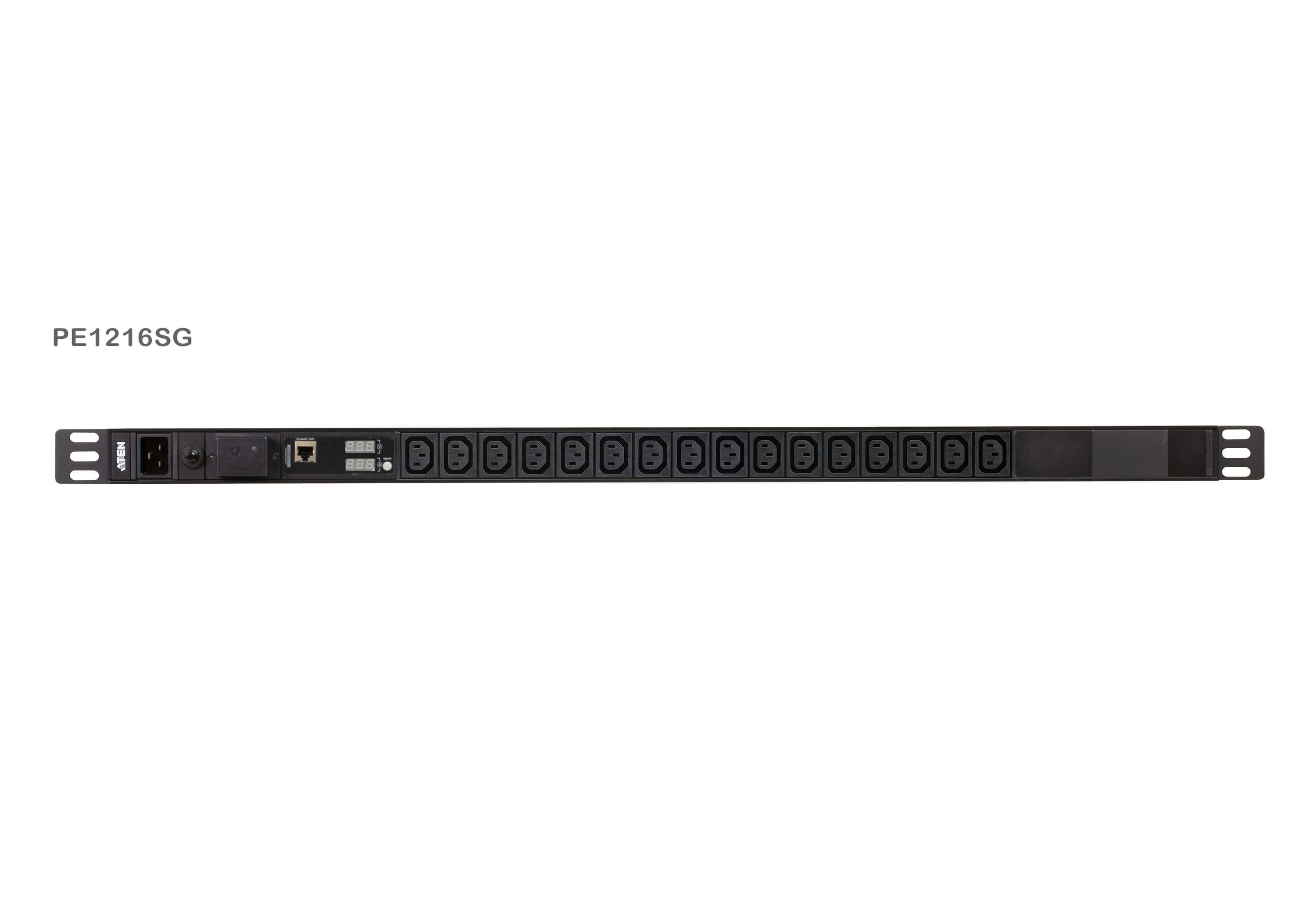

Aten 0U 16A 16-Ports Meter Power Distribution Unit
Item No:
700214
MPN:
PE1216SG-AT-G
$9,999.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 10-15 business days
Store Availability
- 11-16 business days at Bankstown Store
- 11-16 business days at Castle Hill Store
- 10-15 business days at Northmead Store
Shipping Estimate
ATEN Basic Metered 0U PDU with Surge Protection, Basic, Metered, 0U, Black, LCD, 16 AC outlet(s), C13 coupler
Engineered to enhance the efficiency of power distribution and power status monitoring in an IT environment, the ATEN Basic Metered PDU Series contains 0U members with 16 outlets and is available in IEC or NEMA socket configurations. The compact form factor plus the support for rack mount installation helps to save space and eliminates clutter. Benefits from the built-in surge protection module, the IT devices connected to the PDU are well-protected from sudden surges in electricity. The equipment downtime is reduced as a result of the overcurrent protection design.
To monitor the power status of the connected devices, the units feature dual 3-digit 7-segment displays to show the input voltage and output current in real-time. The Basic Metered PDUs provide secure, centralized power usage of data center IT equipment, including servers, storage systems, KVM switches, network devices, to optimize power consumption and asset management.
To monitor the power status of the connected devices, the units feature dual 3-digit 7-segment displays to show the input voltage and output current in real-time. The Basic Metered PDUs provide secure, centralized power usage of data center IT equipment, including servers, storage systems, KVM switches, network devices, to optimize power consumption and asset management.
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic, Metered |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Rack capacity The spase that device fill in rack. | 0U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 16 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C20 coupler |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Features | |
| Surge protection |
|
| Cable length How long the cable is. | 3 m |
| Management features | |
| Monitoring | Current |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 16 A |
| Load capacity | 3840 VA |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 44.4 mm |
| Depth The distance from the front to the back of something. | 967.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 60 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.3 kg |
| Packaging content | |
| Cables included | AC |
| Manual |
|
| Rack mount kit |
|
| Packaging content | 1x Basic Metered 0U PDU with Surge Protection 1x Power Cord 1x L-Shaped Mounting Kit 1x User Instructions |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Low Voltage Directive (LVD) |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| SKU | 700214 |
| MPN | PE1216SG-AT-G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
