Tandem wall mount

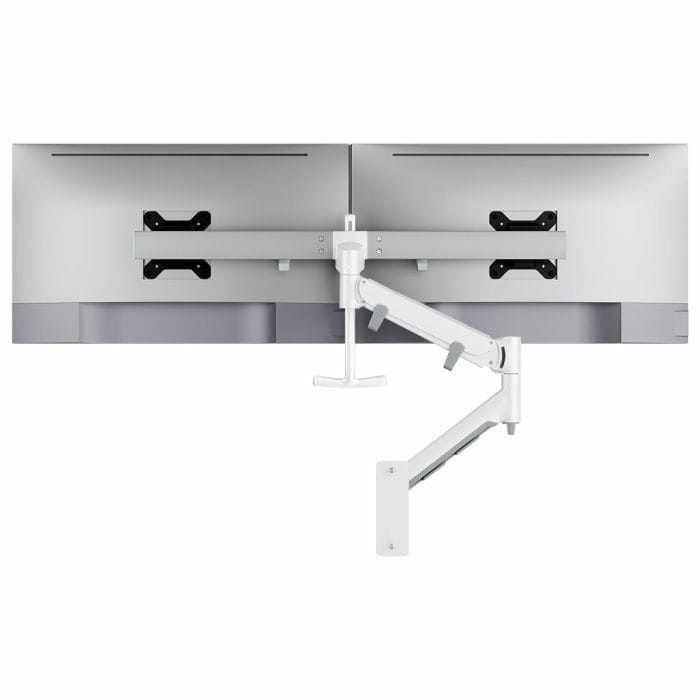

AWMS-RHXW mounts two monitors in tandem from a secure wall fixing. This configuration is typically requested for education, medical, and point of service (POS) applications.
Screens mounted to this solution are often assymetric, with one a touchscreen input device and the other a simple output display. AWMS-RHXW accomodates uneven loads to 11lb (5kg) differential. A convenient handle enables easy adjustment of the arm, for optimal focal distance and ergonomics. Each monitor has independent tilt, pan, and rotation. The nature of the tandem crossbar ensures the mounted devices remain aligned regardless of movement frequency.
AWMS-RHXW mounts two monitors in tandem from a secure wall fixing. This configuration is typically requested for education, medical, and point of service (POS) applications.
Screens mounted to this solution are often assymetric, with one a touchscreen input device and the other a simple output display. AWMS-RHXW accomodates uneven loads to 11lb (5kg) differential. A convenient handle enables easy adjustment of the arm, for optimal focal distance and ergonomics. Each monitor has independent tilt, pan, and rotation. The nature of the tandem crossbar ensures the mounted devices remain aligned regardless of movement frequency.
| Mounting | |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 7 kg |
| Maximum weight capacity (per display) | 7 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 2 kg |
| Maximum screen size The maximum screen size which can be used with this product. | 68.6 cm (27") |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Screws |
| Mounting type Type of mounting e.g. wall mounting. | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 75 x 75,100 x 100 mm |
| Number of displays supported The number of displays that can be used with this product. | 2 |
| Distance to the wall (min) | 9 cm |
| Distance to the wall (max) | 70.8 cm |
| Ergonomics | |
| Height adjustment The part of the device that can be adjusted to change the height. |
 |
| Height adjustment type | Manual |
| Adjustable depth |
|
| Tilt adjustment The tilt, which means the angle at which the device is pointing (up or down), can be changed. |
|
| Tilt angle range | -20 - 20° |
| Swivelling |
|
| Swivel angle | 180° |
| Number of arms | 2 |
| Cable management Description of improved cable management |
|
| Design | |
| Housing material What the casing of the product is made of. | Aluminium |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Orientation | Landscape/Portrait |
| Easy to install |
|
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| VESA mount included |
|
| Manual |
|
| Other features | |
| Made with recycled materials |
|
| Warranty period | 10 year(s) |
| SKU | 813572 |
| MPN | AWMS-RHXW-W |
| Brand | Atdec |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://www.atdec.com.au/ |
