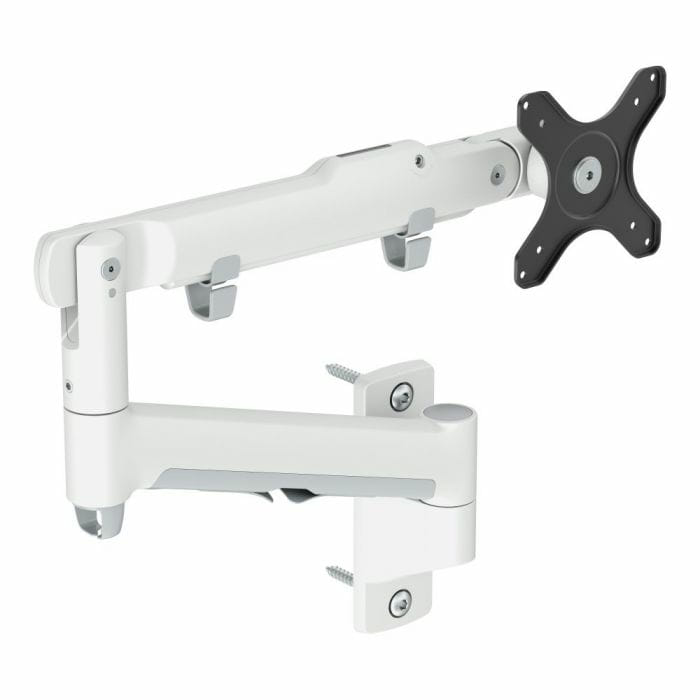

Atdec AWMS-DW-W, Screws, 9 kg, 75 x 75 mm, 100 x 100 mm, Height adjustment, White
Single display wall mount
AWMS-DW is a dynamic wall mount ideal for service areas, mounting monitors for back-of-house order management display, front-of-house management, health care triage and patient displays, and more. This wall mount is also used in busy workplaces where space is at a premium.
AWMS-DW is highly stable including for interactive displays or all-in-one devices in its weight class (consider AWMS-HXW for heavy duty applications). The arm sits snug to the wall when retracted and has a long vertical and horizontal reach. The spring-assisted action delivers smooth and vibration resistant operation with fingertip adjustment. The solution is available in black, silver, and white and has a discrete footprint and elegant design to unobtrusively complement modern environments.
A built-in visual tension gauge is just one of the installer-friendly features, to streamline multiple installations during projects. It also features an integrated 180Deg rotation limiter to prevent interference with panels and walls plus advanced cable management. Built from lightweight and durable materials, the mount can be recycled at the end of its life.
AWMS-DW is a dynamic wall mount ideal for service areas, mounting monitors for back-of-house order management display, front-of-house management, health care triage and patient displays, and more. This wall mount is also used in busy workplaces where space is at a premium.
AWMS-DW is highly stable including for interactive displays or all-in-one devices in its weight class (consider AWMS-HXW for heavy duty applications). The arm sits snug to the wall when retracted and has a long vertical and horizontal reach. The spring-assisted action delivers smooth and vibration resistant operation with fingertip adjustment. The solution is available in black, silver, and white and has a discrete footprint and elegant design to unobtrusively complement modern environments.
A built-in visual tension gauge is just one of the installer-friendly features, to streamline multiple installations during projects. It also features an integrated 180Deg rotation limiter to prevent interference with panels and walls plus advanced cable management. Built from lightweight and durable materials, the mount can be recycled at the end of its life.
| Mounting | |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 9 kg |
| Number of displays supported The number of displays that can be used with this product. | 1 |
| Maximum weight capacity (per display) | 9 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 6 kg |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Screws |
| Mounting type Type of mounting e.g. wall mounting. | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 75 x 75,100 x 100 mm |
| Distance to the wall (min) | 6.8 cm |
| Distance to the wall (max) | 67 cm |
| Ergonomics | |
| Height adjustment The part of the device that can be adjusted to change the height. |
 |
| Height adjustment type | Manual |
| Adjustable depth |
|
| Tilt adjustment The tilt, which means the angle at which the device is pointing (up or down), can be changed. |
|
| Tilt angle range | -25 - 45° |
| Swivelling |
|
| Number of arms | 2 |
| Cable management Description of improved cable management |
|
| Design | |
| Housing material What the casing of the product is made of. | Aluminium |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Orientation | Landscape/Portrait |
| Easy to install |
|
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| VESA mount included |
|
| Manual |
|
| Other features | |
| Made with recycled materials |
|
| Warranty period | 10 year(s) |
| SKU | 821945 |
| MPN | AWMS-DW-W |
| Brand | Atdec |
| Product Condition | Brand New/Unused |
| Product Use | General |
