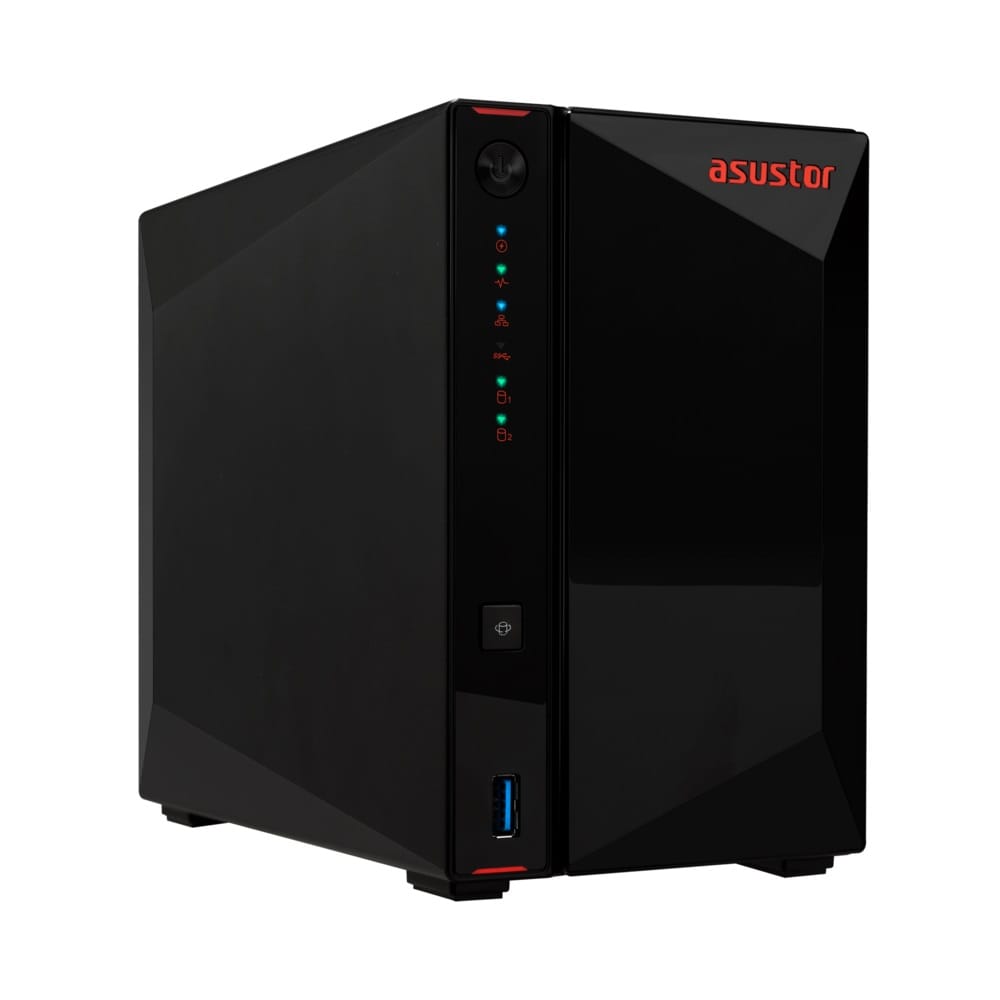

Quad-Core 10 nm Intel Celeron N5105 CPU; 4x M.2 slots for NVMe SSDs; 4 GB of DDR4-2933 RAM; Dual 2.5-Gigabit Ethernet ports; 3x USB 3.2 Gen 2 at 10 Gbps; HDMI 2.0b; Aesthetically pleasing M.2 SSD heat dissipation thermal vents
Storage
Storage drive interface
Where the storage device links with other parts of the product, or an external device.
M.2, Serial ATA III
Storage drive size
The size of the storage drive, given in inches ('').
2.5/3.5"
RAID support
The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
0, 1, 5, 6, 10
Hot-swap drive bays
The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Supported file systems
BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Storage drives installed
Storage drives are built into the system.
Number of storage drives supported
How many storage drives can be fit into the product at once.
14
Installed storage drive type
Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive).
Supported storage drive types
The type of storage drives the device is compatible with.
HDD & SSD
Processor
Processor manufacturer
The manufacturer that produced the processor.
Intel
Processor family
A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.
Intel® Celeron®
Processor model
The model number for the processor in a computer.
N5105
Processor frequency
The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.
2 GHz
Processor boost frequency
The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.
2.9 GHz
Processor cores
The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).
4
Processor threads
4
Processor cache
4 MB
CPU configuration (max)
1
Memory
Internal memory type
The type of internal memory such as RAM, GDDR5.
DDR4
Memory clock speed
The frequency at which the memory (e.g. RAM) runs.
2933 MHz
Maximum RAM supported
16 GB
Memory slots
Number and type of memory expansion slots, including connector and memory module descriptions.
2
Internal memory
A computer's memory which is directly accessible to the CPU.
4 GB
Memory form factor
Design of the memory e.g. 240-pin DIMM, SO-DIMM.
SO-DIMM
Flash memory
8192 MB
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000,2500 Mbit/s
Wake-on-LAN ready
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
USB port
The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
HDMI version
2.0b
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
Design
Cooling type
The method used to cool the device or to cool the air around the device.
Active
Product colour
The colour e.g. red, blue, green, black, white.
Black
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
7 cm
Performance
Type
Characteristics of the device.
NAS
Device class
The category to which this device belongs.
Home & Home Office
Backup function
The function if the main power source fails.
Backup features
Cloud
Number of users
The number of people that use or can use this product.
4096 user(s)
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
18.6 dB
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
256-bit AES
Access Control List (ACL)
Browser supported
List of supported browsers for this product.
FireFox, Chrome, Safari, Microsoft Edge
System log
Share folder
Software
Operating system installed
Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
ADM
Operating system version
The version of the operating system used e.g. 4.1, 4.2 for Android.
4.1
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported
Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
22.9 W
Power consumption (sleep)
0.71 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Weight & dimensions
Width
The measurement or extent of something from side to side.
114 mm
Depth
The distance from the front to the back of something.
230 mm
Height
The measurement of the product from head to foot or from base to top.
170 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.71 kg
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
