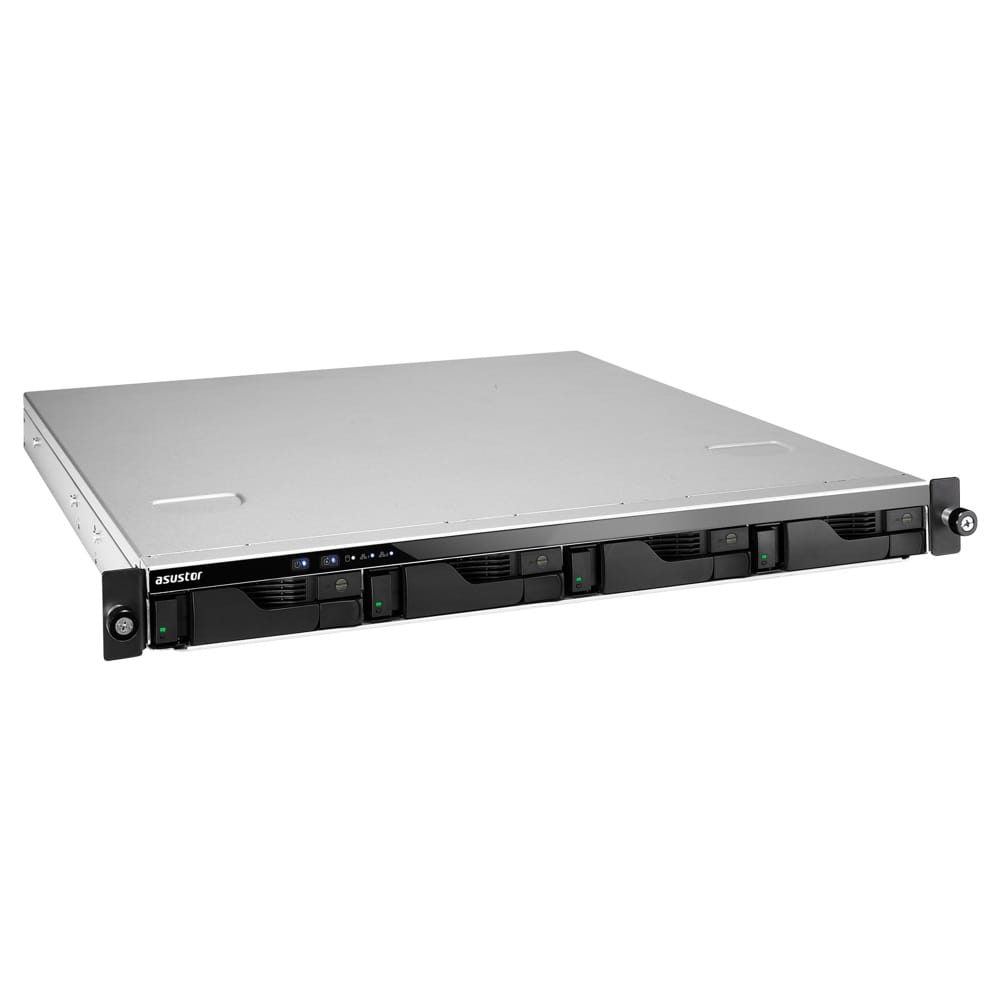

Asustor Lockerstor 4RS 4-Bay Atom C3538 Quad-Core 8GB NAS

Storage
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported The sizes of storage drives that can be used with the product.	2.5,3.5"
Maximum supported storage capacity The maximum capacity of data storage on the device.	72 TB
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.	0, 1, 5, 6, 10, JBOD
Online RAID migration
Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Storage drives installed Storage drives are built into the system.
Number of storage drives supported How many storage drives can be fit into the product at once.	4
Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive).
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD
Bad block scan

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel Atom®
Processor model The model number for the processor in a computer.	C3538
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	2.1 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
CPU configuration (max)	1
Conflict-Free processor "Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries.

Memory
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4
Maximum RAM supported	128 GB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	4
Internal memory A computer's memory which is directly accessible to the CPU.	8 GB
Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM.	SO-DIMM
Flash memory	8000 MB

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	100,1000,2500 Mbit/s
Jumbo frames support
iSCSI support
Wake-on-LAN ready
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP, TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Link aggregation
Load balancing system
Dynamic DNS (DDNS)

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
PCI Express x8 (Gen 3.x) slots Slots in the computer for PCI Express x8 (Gen 3.x), which is a high-speed serial computer expansion bus standard with 8 pins.	1

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Rack (1U)
Cooling type The method used to cool the device or to cool the air around the device.	Active
Product colour The colour e.g. red, blue, green, black, white.	Black
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	2 fan(s)
Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.	4 cm
LED indicators

Performance
Type Characteristics of the device.	NAS
Device class The category to which this device belongs.	Small & Medium Business
Backup function The function if the main power source fails.
Backup features	Cloud, iSCSI LUN
Multilingual support
Snapshot
Web-based management Using a website/web application to manage something.
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	256-bit AES, HTTPS, SNMP, SNMPv2, SNMPv3, SSL/TLS, WPA-Enterprise, WPA2-Enterprise
Access Control List (ACL)
Built-in UPnP AV media server
Browser supported List of supported browsers for this product.	Firefox, Chrome, Safari, Microsoft Edge
System log
S.M.A.R.T. support

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	ADM
Windows operating systems supported Windows vesions wich can be used with the device.
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019

Power
Power supply location Where the power supply is positioned.	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails.
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	47.7 W
Power consumption (HDD standby)	28.4 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100-240 V

Weight & dimensions
Width The measurement or extent of something from side to side.	439 mm
Depth The distance from the front to the back of something.	515 mm
Height The measurement of the product from head to foot or from base to top.	44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	7.85 kg

Packaging content
Cables included	AC, LAN (RJ-45)
Power cables quantity	1

Processor special features
Embedded options available
Execute Disable Bit
Intel QuickAssist Technology
Intel Secure Boot Secure Boot ensures that only trusted software with a known configuration executes as part of the boot process. It enables the hardware root of trust which starts the authentication chain for platform firmware and subsequent software load, like the operating system, for example.
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel VT-x with Extended Page Tables (EPT)

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	5 - 90%

Certificates
Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS

Logistics data
Harmonized System (HS) code	84714100
