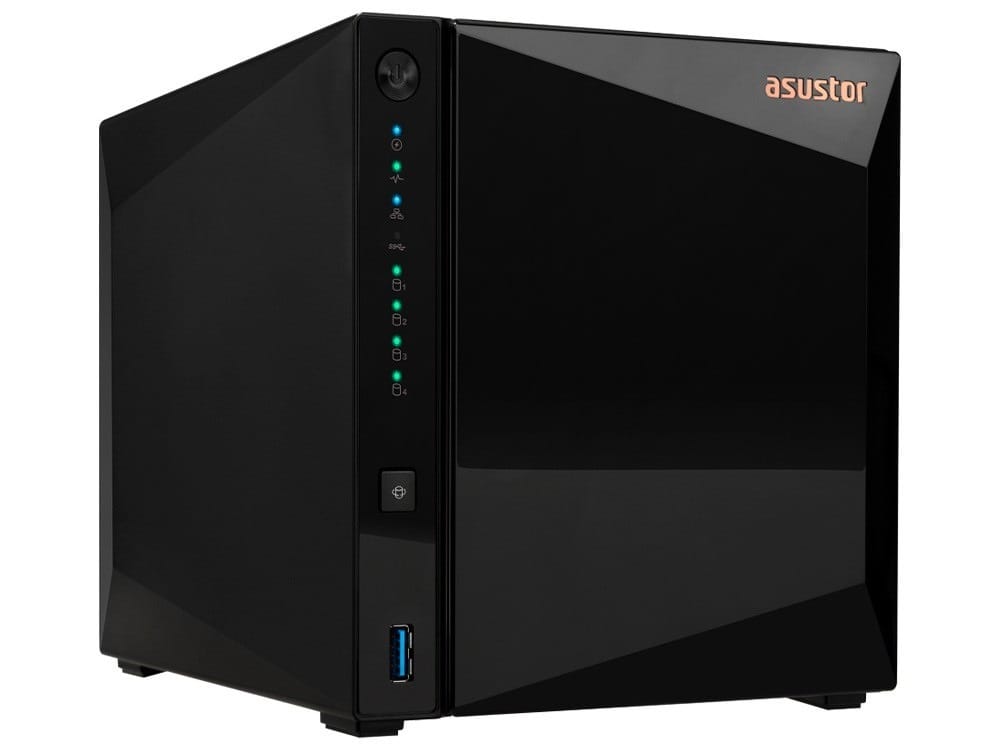

Equipped with Realtek RTD1619B 1.7GHz quad-core processor; Superfast 2.5-Gigabit Ethernet; 2 GB DDR4 RAM; Upgraded powerful internal display, smooth transcoding of 4K videos; Supports Wake on LAN and Wake on WAN; Btrfs/iSCSI Snapshots; Tool-free installation
Storage
Supported storage drive interfaces
Serial ATA III
Storage drive sizes supported
The sizes of storage drives that can be used with the product.
2.5,3.5"
RAID support
The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
0, 1, 5, 6, 10, JBOD
Hot-swap drive bays
The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Supported file systems
BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Number of storage drives supported
How many storage drives can be fit into the product at once.
4
Supported storage drive types
The type of storage drives the device is compatible with.
HDD & SSD
Processor
Processor manufacturer
The manufacturer that produced the processor.
Realtek
Processor family
A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.
Realtek
Processor model
The model number for the processor in a computer.
RTD1619B
Processor frequency
The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.
1.7 GHz
Processor cores
The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).
4
Memory
Internal memory
A computer's memory which is directly accessible to the CPU.
2 GB
Internal memory type
The type of internal memory such as RAM, GDDR5.
DDR4
Flash memory
8192 MB
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
100,1000,2500 Mbit/s
Jumbo frames support
iSCSI support
Wake-on-LAN ready
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
USB port
The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Design
Cooling type
The method used to cool the device or to cool the air around the device.
Active
Product colour
The colour e.g. red, blue, green, black, white.
Black
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
12 cm
LED indicators
Performance
Type
Characteristics of the device.
NAS
Device class
The category to which this device belongs.
Home & Home Office
Backup function
The function if the main power source fails.
Backup features
Cloud
Number of users
The number of people that use or can use this product.
4096 user(s)
Noise level (idle)
19.7 dB
Web-based management
Using a website/web application to manage something.
Share folder access right management
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
256-bit AES, HTTPS, SSH, SSL/TLS
Access Control List (ACL)
Built-in UPnP AV media server
Browser supported
List of supported browsers for this product.
Microsoft Edge, Firefox, Chrome
Software
Operating system installed
Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
ADM
Operating system version
The version of the operating system used e.g. 4.1, 4.2 for Android.
4.1
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported
Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Other operating systems supported
FreeBSD, UnixWare
Power
Power supply location
Where the power supply is positioned.
Built-in
Power supply unit (PSU) capacity
90 W
Number of power supply units
1
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
25.1 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Weight & dimensions
Width
The measurement or extent of something from side to side.
174 mm
Depth
The distance from the front to the back of something.
230 mm
Height
The measurement of the product from head to foot or from base to top.
170 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2.2 kg
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
