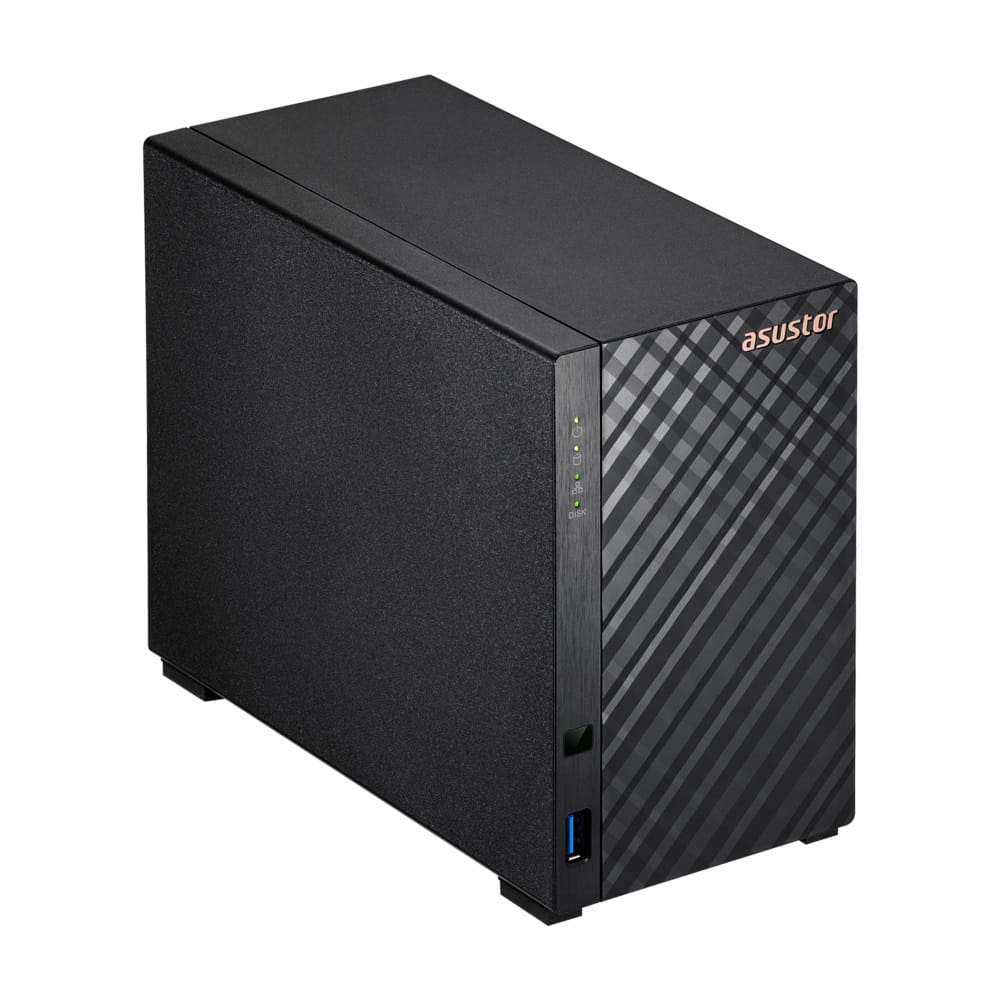

Equipped with Realtek RTD1619B 1.7GHz quad-core processor; 1 GB DDR4 RAM; Enjoy, download, upload and stream content with 4K transcoding; Supports Wake on LAN (WOL); Tool-free installation

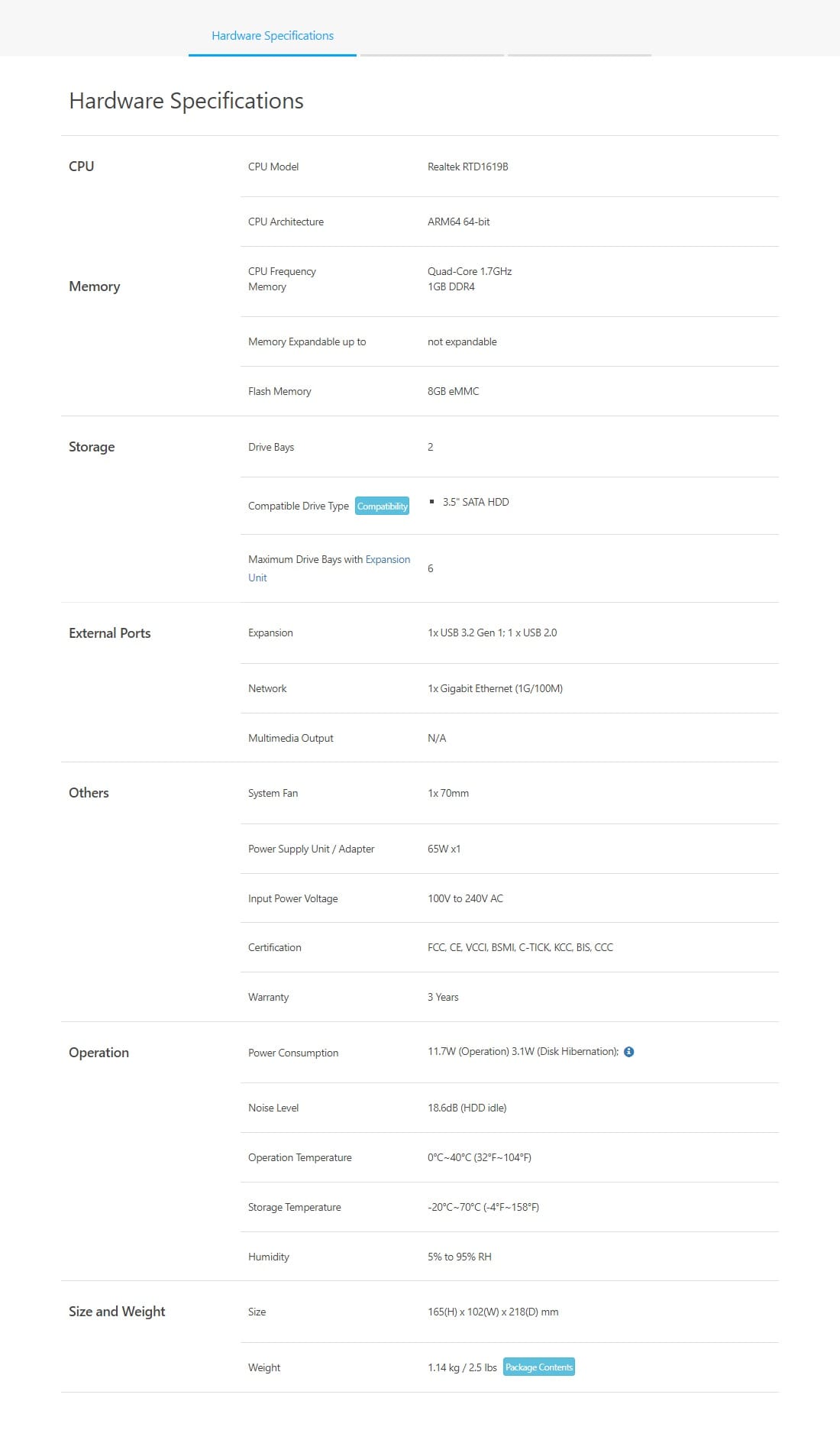

| Storage | |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 3.5" |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, JBOD |
| Online RAID migration |
|
| Online RAID expansion |
|
| Storage drives installed Storage drives are built into the system. |
 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 2 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Realtek |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Realtek |
| Processor model The model number for the processor in a computer. | RTD1619B |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1.7 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 1 GB |
| Flash memory | 8000 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000 Mbit/s |
| Jumbo frames support |
|
| iSCSI support |
|
| Wake-on-LAN ready |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | CIFS/SMB, SMB 2.0/3.0, AFP, NFS, FTP, TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog |
| Link aggregation |
|
| Load balancing system |
|
| Dynamic DNS (DDNS) |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Mini Tower |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 7 cm |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Small & Medium Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud, USB drive |
| Number of users The number of people that use or can use this product. | 4096 user(s) |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 18.6 dB |
| Snapshot |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES |
| Access Control List (ACL) |
|
| Browser supported List of supported browsers for this product. | FireFox, Chrome, Safari, Microsoft Edge |
| S.M.A.R.T. support |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | ADM |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 4.0 |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016 |
| Power | |
| Power supply unit (PSU) capacity | 65 W |
| Number of power supply units | 1 |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 11.7 W |
| Power consumption (sleep) | 3.1 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 102 mm |
| Depth The distance from the front to the back of something. | 218 mm |
| Height The measurement of the product from head to foot or from base to top. | 165 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.14 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC |
| SKU | 786383 |
| MPN | AS1102TL |
| Brand | Asustor |
| Product Condition | Brand New/Unused |
| NAS Form Factor | Freestanding |
| NAS Bays | 2.00 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.asustor.com/ |
