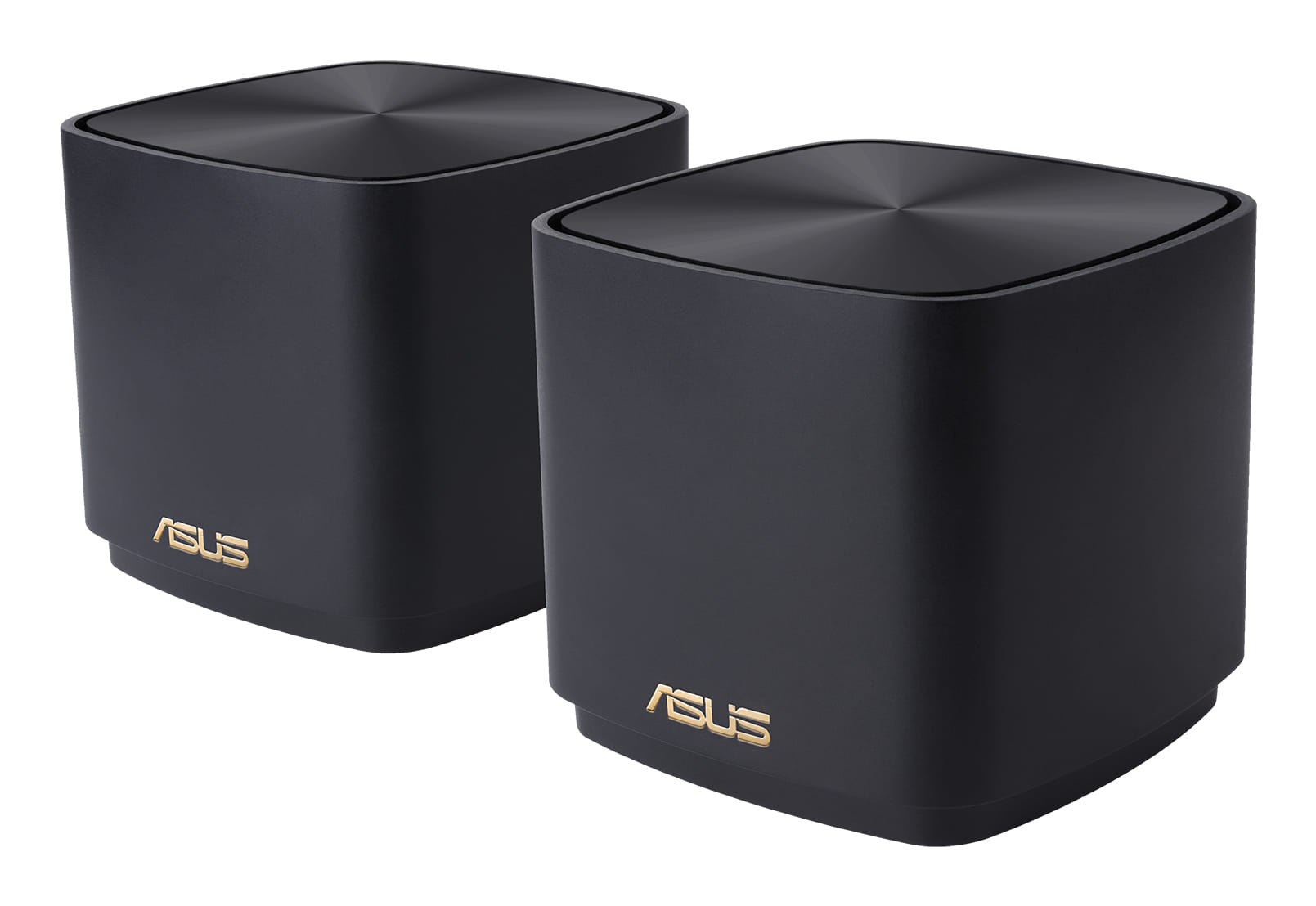

ASUS ZenWiFi XD4S, Black, Internal, Mesh router, Power, 306,58 m2, Dual-band (2.4 GHz / 5 GHz)
WiFi Coverage Everywhere. Always Secure.
Whole-home Coverage
The ZenWiFi XD4S system consists of three ASUS AX1800 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections - inside or outside your home
WiFi 6
True 8K Streaming
ZenWiFi XD4S puts your WiFi into top gear With a total bandwidth of up to of 1800 Mbps, it's up to 1.4X faster* than WiFi 5 routers **.
* Compatible WiFi 6 device required.
** The data compares speed of 2X2 11ax on 5GHz 80 MHz bandwidth with 1024QAM modulation to speed of 2x2 11ac on 5GHz 80MHz with 256QAM modulation.
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours
Easier-than-ever Setup
3-step setup with the ASUS Router app
What makes ZenWiFi XD4S setup so easy?
One-time setup, with auto synchronization for all the hubs in each package
Use a network cable to connect your modem to the WAN port of one XD4S. This ZenWiFi XD4S will be the AiMesh router, and the other two ZenWiFi XD4S will be the AiMesh nodes.
Make the Internet a Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.
Smart Looks for Smart Homes
ZenWiFi XD4S works perfectly with smart-home services - including Alexa skills and IFTTT - and is available in charcoal or white to suit your dcor.
Space-saving and Great Design
Comes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours
AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
Whole-home Coverage
The ZenWiFi XD4S system consists of three ASUS AX1800 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections - inside or outside your home
WiFi 6
True 8K Streaming
ZenWiFi XD4S puts your WiFi into top gear With a total bandwidth of up to of 1800 Mbps, it's up to 1.4X faster* than WiFi 5 routers **.
* Compatible WiFi 6 device required.
** The data compares speed of 2X2 11ax on 5GHz 80 MHz bandwidth with 1024QAM modulation to speed of 2x2 11ac on 5GHz 80MHz with 256QAM modulation.
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours
Easier-than-ever Setup
3-step setup with the ASUS Router app
What makes ZenWiFi XD4S setup so easy?
One-time setup, with auto synchronization for all the hubs in each package
Use a network cable to connect your modem to the WAN port of one XD4S. This ZenWiFi XD4S will be the AiMesh router, and the other two ZenWiFi XD4S will be the AiMesh nodes.
Make the Internet a Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.
Smart Looks for Smart Homes
ZenWiFi XD4S works perfectly with smart-home services - including Alexa skills and IFTTT - and is available in charcoal or white to suit your dcor.
Space-saving and Great Design
Comes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours
AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
| Design | |
| Product type The sub-category of the product. | Mesh router |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators | Power |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antennas quantity | 2 |
| Maximum coverage | 306.58 m² |
| Reset button |
 |
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | SSID, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS |
| Point-to-point protocol over Ethernet (PPPoE) The Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating PPP frames inside Ethernet frames. It appeared in 1999, in the context of the boom of DSL as the solution for tunneling packets over the DSL connection to the ISP's IP network, and from there to the rest of the Internet. A 2005 networking book noted that "Most DSL providers use PPPoE, which provides authentication, encryption, and compression." Typical use of PPPoE involves leveraging the PPP facilities for authenticating the user with a username and password, predominately via the PAP protocol and less often via CHAP. |
|
| IGMP snooping |
|
| Dynamic DNS (DDNS) |
|
| VPN support | VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Server IPSec VPN Server Open VPN VPN Server PPTP |
| Features | |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Flash memory | 128 MB |
| WPS push button |
|
| Quality of Service (QoS) support |
|
| Port forwarding |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Parental control |
|
| MIMO |
|
| Protocols | |
| Supported network protocols (IPv6) | yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Ethernet WAN |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 90 mm |
| Depth The distance from the front to the back of something. | 90 mm |
| Height The measurement of the product from head to foot or from base to top. | 85 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 307 g |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 2 pc(s) |
| AC adapter included |
|
| Number of units included | 2 pc(s) |
| Ethernet cable |
|
| SKU | 817653 |
| MPN | XD4S B-2-PK |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wireless |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.asus.com/ |
